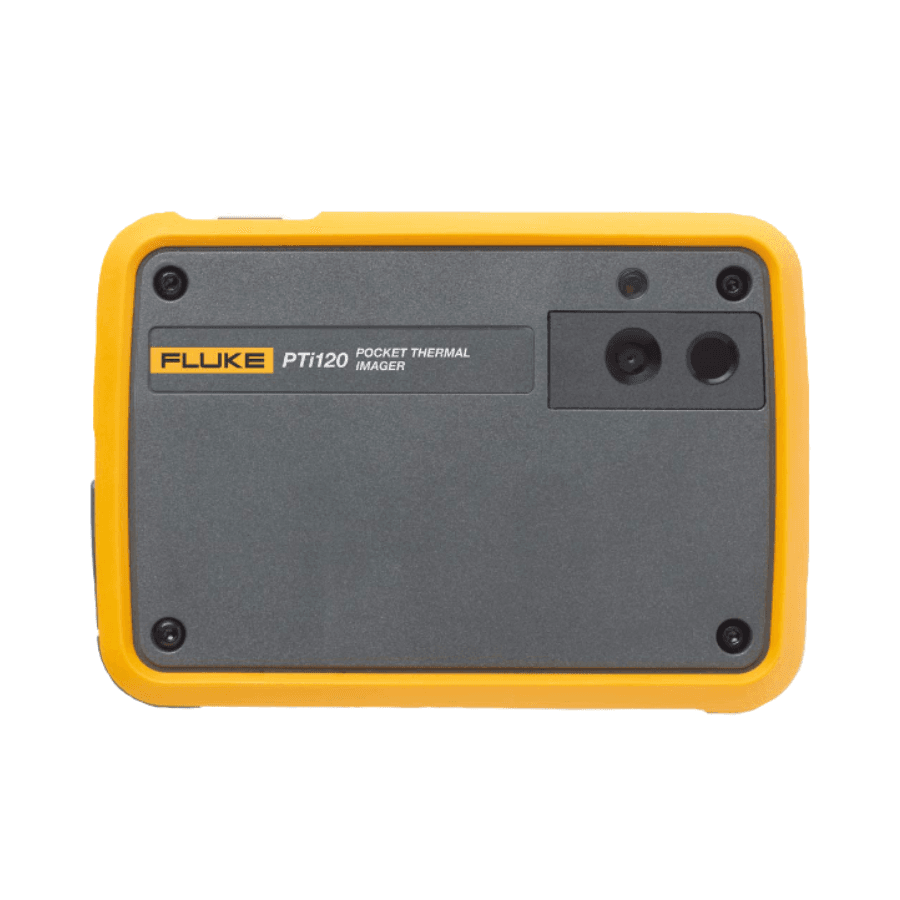

Fluke Compact PTi120 Pocket Thermal Camera

Fluke Compact PTi120 Pocket Thermal Camera

Tailored for industrial inspections, the Fluke Compact PTi120 Pocket Thermal Camera excels in first-line troubleshooting with its rugged, portable design. This professional-grade imager, compact enough to fit in an engineer’s pocket, efficiently detects temperature anomalies vital in predicting potential issues in various systems. With a temperature range of -20 °C to 150 °C and an infrared resolution of 120 x 90 (10,800 pixels), it swiftly identifies hot and cold spots in electrical equipment, pumps, motors, and HVAC systems.

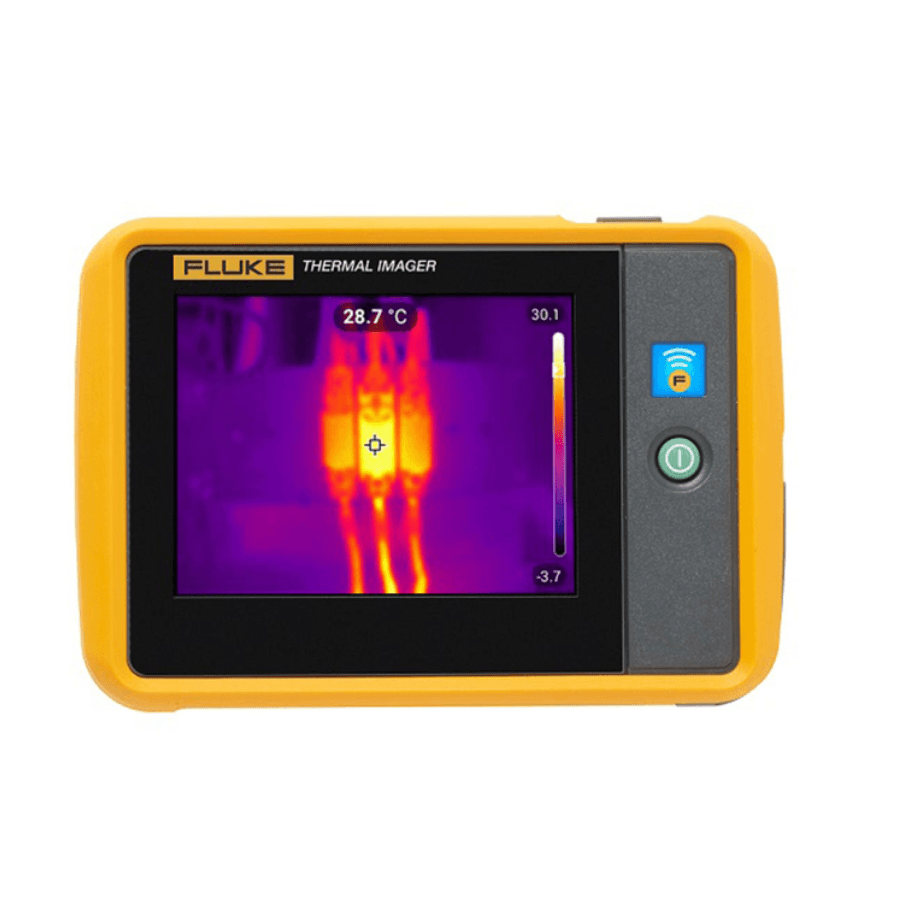

Despite its small stature, the PTi120 packs advanced features for on-site analysis. Its IR-Fusion technology blends thermal images with visible light details, pinpointing problems with greater accuracy. Features like hot and cold spot markers, on-screen emissivity correction, and background temperature compensation enhance its diagnostic capabilities. The camera’s 50° H x 38° V field of view, 60 mK thermal sensitivity, and 7.6 mRad IFOV make it a powerful tool in any industrial setting.

Images captured by the PTi120, in High Contrast, Hot Metal, or Grayscale palettes, can be transferred via Wi-Fi or USB. Its 2GB internal memory stores images in both non-radiometric (JPG) and radiometric (IS2) formats. Fluke Connect Asset Tagging and software streamline image organization and report generation.

The PTi120’s durable casing is IP54 rated and drop-resistant up to 1 meter. An internal rechargeable battery with adjustable shutdown, and a 3.5″ LCD touchscreen ensure convenient, long-lasting use. Backed by a two-year warranty, the Fluke Compact PTi120 is an indispensable tool for pre-emptive maintenance and problem-solving.

Key Features

• Pocket-sized thermal camera, perfect for industrial inspections.
• Targets motors, building systems, HVAC, and more.
• Features IR-Fusion technology for enhanced imaging.
• Offers Wi-Fi and USB connectivity for data transfer.
• Integrates with Fluke Connect software and Asset Tagging.
• Temperature range from -20 °C to 150 °C.
• Infrared resolution of 120 x 90 (10,800 pixels).
• 50° H x 38° V field of view with 60 mK thermal sensitivity.
• Frame rate of 9 Hz and IFOV of 7.6 mRad.
• Fixed focus with a minimum distance of 22.8 cm.
• Hot and cold spot indicators for easy detection.
• On-screen emissivity correction and background temperature compensation.
• Six color palettes for diverse imaging options.
• 3.5″ landscape LCD touchscreen with 320 x 240 resolution.
• 2GB internal memory for storing and exporting JPG and IS2 files.
• Supports 18 languages for versatile use.
• Rugged and portable with IP54 rating.
• Drop-tested to 1 meter for durability.
• Covered by a two-year warranty.

What’s Included

• Fluke Compact PTi120 Pocket Thermal Camera
• Soft case
• Lanyard
• USB cable
