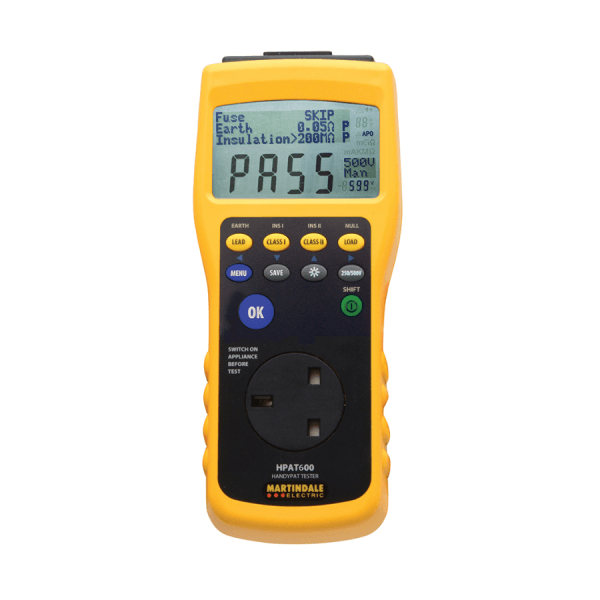

Martindale HPAT600/2 Advanced Rechargeable PAT Tester
The Martindale HPAT600 is a portable appliance tester (PAT) with recharagble batteries and memory function, making this tester more suitable for higher volume testing.
Retaining all features of the previous models, the Martindale HPAT400 and HPAT500, the HPAT600 has range of additional features…
- Automatic and manual testing with adjustable limits
- Simulated load test
- Built in memory with recall
Advanced features for better testing
To aid the accurate testing of a range of appliances with cables of differing lengths, the HPAT600 allows the user to manually adjust the PASS limit for earth continuity testing from 0.1Ω up to 0.9Ω in 0.1 steps. The user can also adjust the limit for insulation resistance testing between 0.3MΩ and 10MΩ. The HPAT600 does include default pass limits as standard.
The Martindale HPAT600 can perform a simulated load test (or function test) to ensure the appliance operates correctly and safely. This test is usually performed as a final check before returning the unit into service.
Past records can be recalled at the touch of a button. Scroll through data for the past 200 appliances on the backlit display. Please not the results on the HPAT600 are NOT downloadable.
Easy to use
The Martindale HPAT600 is very simple to use and includes a range of accessories for testing to begin straight out of the box. The unit features both manual and automatic modes…
Manual mode – step by step instruction on how to carry out a test, ideal for beginners or infrequent testing
Auto mode – Provides the fastest test method for experienced persons.
Martindale HPAT600 key features…
- 5th edition complaint
- Advanced PAT tester with memory function
- Backlit display with measurement values
- 250 / 500V selectable insulation test range
- Store records for up to 200 appliances
- 200mA IT safe earth bond test
- Rechargeable batteries included
- Automatic and manual test modes
- Class I , Class II and power lead tests
- Test surge protected devices

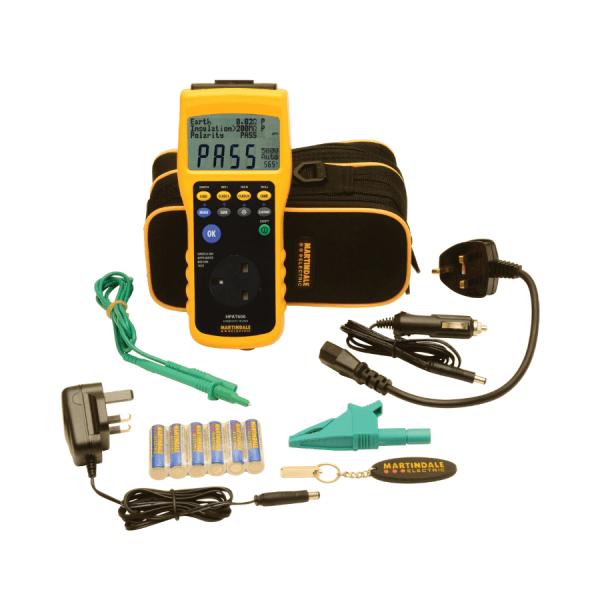

- Martindale HPAT600
- Soft carry case
- Rechargeable batteries
- IEC lead
- Earth bond probe
