Testo 327-1 Flue Gas Analyser Advanced Kit

Testo 327-1 Flue Gas Analyser Advanced Kit 0563 3203 81

The Testo 327-1 Flue Gas Analyser Advanced Kit, model 0563 3203 81, stands out as a multifaceted tool essential for the commissioning and servicing of domestic boilers. Adhering to BS7967 and EN 50379 standards, it boasts capabilities to measure O2, CO, and temperature, while also efficiently calculating ratios, CO2, and boiler efficiency.

This analyser comes with a durable, soft carry case, designed to protect and store the device, its probe, and all included accessories. The case ensures safe transport and excellent maintenance of the analyser. Additionally, each kit contains a calibration protocol, confirming the precision and reliability of the device.

User-Friendly Design and Advanced Features

Designed with user convenience in mind, the Testo 327-1 features a robust rubber casing, user-friendly menu navigation, and a backlit multi-line display, making it ideal for frequent, daily use. The device is powered by a lithium-ion battery, offering up to 5 hours of continuous operation, enhancing its utility in various work environments.

One of the unique features of the Testo 327-1 is the built-in magnets on the rear of the unit. These magnets allow the device to be attached to the boiler casing for hands-free operation, a critical feature for professionals. Additionally, the included infra-red printer in the advanced kit also comes with a built-in magnet, offering similar convenience.

Safety and device longevity are key with the Testo 327-1. It is equipped with automatic pump protection, a standard feature that safeguards the CO sensor from damage due to overexposure, with a capability range of up to 4,000ppm.

The advanced kit of the Testo 327-1 further enhances its functionality by including essential accessories. This includes a differential hose kit, vital for conducting both tightness and let by testing, and a set of temperature clamps, which are indispensable for measuring flow and return temperatures. These additions make the Testo 327-1 a comprehensive solution for a wide range of testing requirements in boiler servicing and maintenance.

Key Features

• Temperature measurement range -40 to +600
• Flue gas 02 measurement 0 to 21 Vol.%
• Differential pressure flue gas draught -40 to +40 hPa
• Efficiency measurement 0 to 12%
• Flue gas loss range 0 to 99%
• Carbon monoxide and carbon dioxide measurements
• Easy menu navigation with large rubber buttons
• Robust rubber boot to protect the unit in harsh environments
• Multi fuel: Natural gas, light/heavy oil, Propane, Butane and Kerosene
• Back lit 4 line LCD display shows multiple measurement results in one
• Fast and secure flue probe attachment
• Easy access filter access for quick changes
• Lithium ion rechargeable battery for approximately 5 hours use
• Measures combustion efficiency, temperature, O2, CO2 and flue draft
• Carries out let by and tightness test, no need for a separate manometer
• CO over exposure protection with automatic pump shut off
• Independently tested to EN50379
• Meets the requirements of BS79697
• Ambient CO measurement using flue gas probe
• Results print out

Technical Specifications

• Temperature: 0 to +600°C
• Draught: ±40 mbar
• Pressure: -200 to +200 mbar
• O2: 0 to 21 Vol. %
• CO: 0 to 4000 ppm
• CO2: 0 to CO2 max
• Efficiency measurement: 0 to 120%
• Flue gas loss (qA): 0 to 99.9%
• Testo part no. 0563 3203 81

Testo Flue Gas Analyser Comparison Table

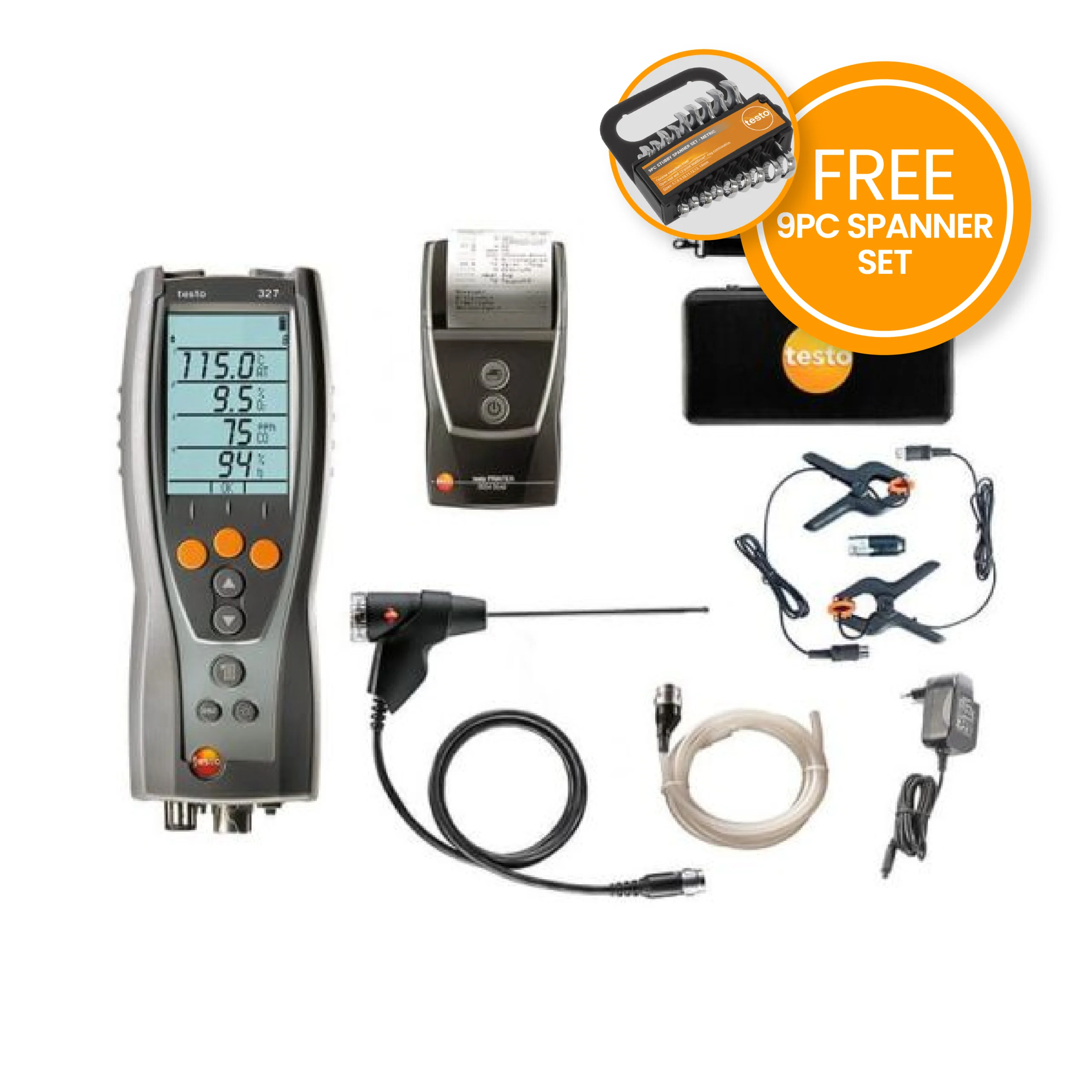

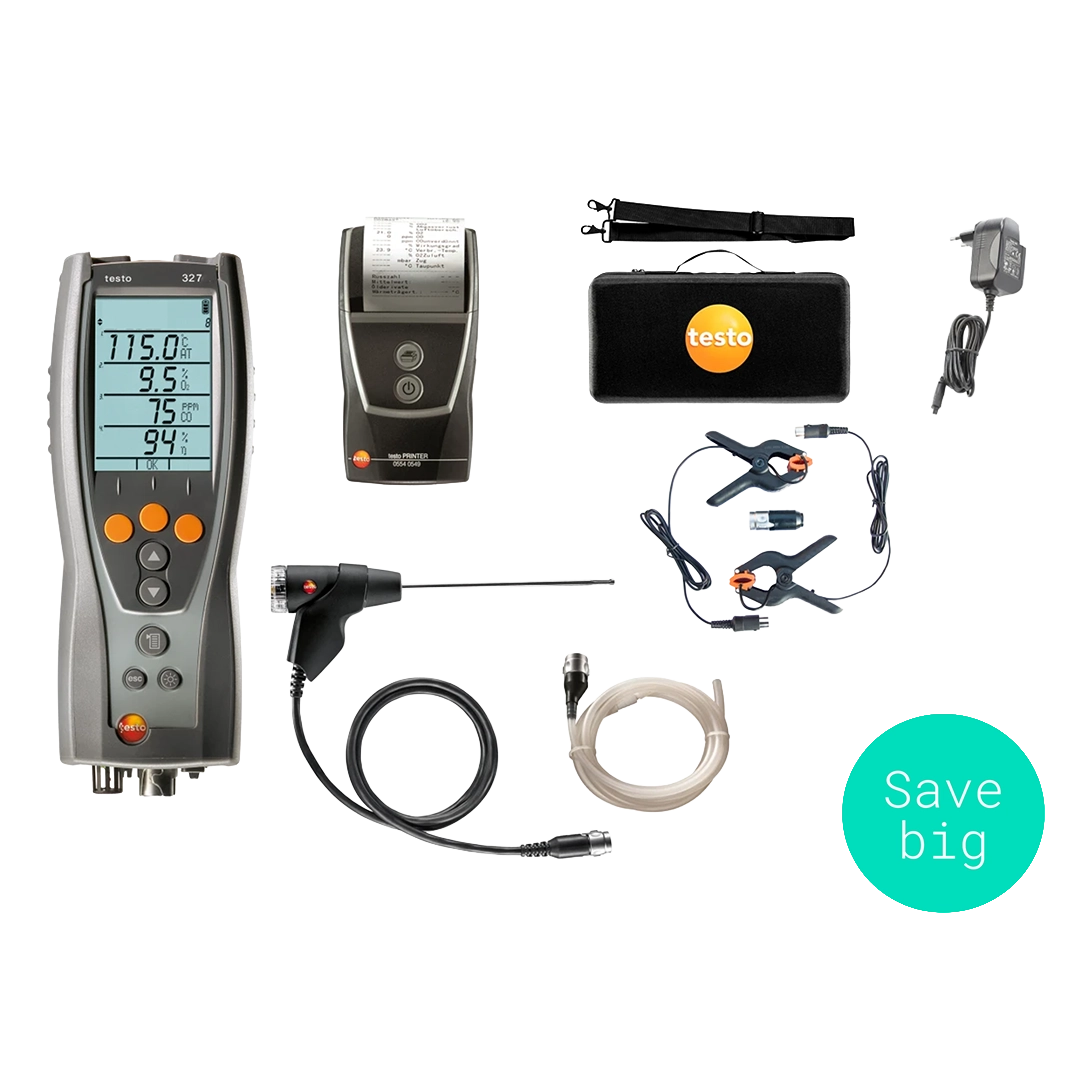

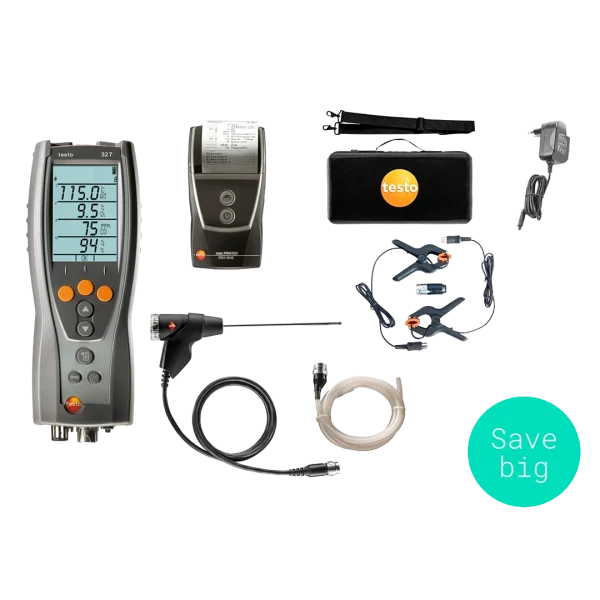

What’s Included

• Testo 327-1 Analyser
• Flue Gas Probe
• Mains Unit
• Differential Hose Kit
• Differential Temperature Kit
• Testo Fast Printer
• Carry Case
• Includes 12-month manufacturers calibration certificate
• Gas Leak Detector with Flexible Neck*
• Testo CPA1 Kit –  Set of CPA1 / BS7967 probes for CO testing of cookers and flueless appliances**

*Included in the Add Testo Gas Leak Detector 300563 1327
** Included in the Add Gas Leak Detector + CPA1 Kit 300563 3327
