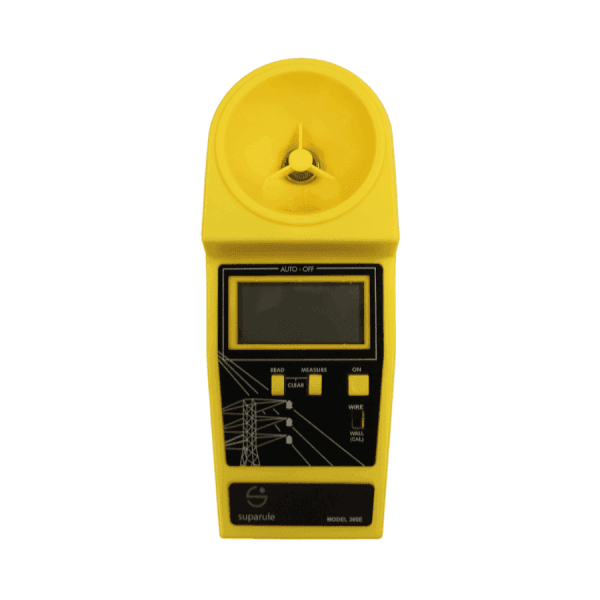

Suparule 300E Cable Height Meter
The Suparule 300E Cable Height Meter is an advanced tool for utility line operators. It is widely used in industries such as electricity and communication networks. This portable device efficiently measures cable sag, cable height, and top clearance of wires. It serves as a modern replacement for extendable measuring poles.
Using sound-based signals, the meter accurately gauges the height of overhead cables up to 23 metres (75 feet). It meets a variety of cable measurement needs across different models. The CHM190 is designed for single-wire assessments. The CHM300, CHM300E, CHM600, and CHM600E models support multiple-wire evaluations.
Efficient and Safe Operation
The technology behind the Suparule Cable Height Meter involves sending short sound bursts from a cone-shaped sender. A small processor then calculates the time it takes for these bursts to bounce back from the cable, offering readings in either imperial or metric units. The device’s built-in temperature sensor further improves accuracy by changing for air temperature variations. Users can measure up to six cables at the same time by simply standing beneath the cables, turning on the device, and pressing the ‘MEASURE’ button for instant, precise readings.
Versatile Applications and Easy Maintenance
Designed for a wide range of applications, the Suparule 300E proves invaluable for measuring telephone lines, distribution and transmission lines, cable television, and street lighting, among others. It’s particularly useful for ensuring safety on congested roadways and verifying calibration since purchase. The device’s compact size, ease of transport, and maintenance-free operation underscore its appeal to professionals seeking fast, effective, and accurate measurements without the need for direct cable contact.
