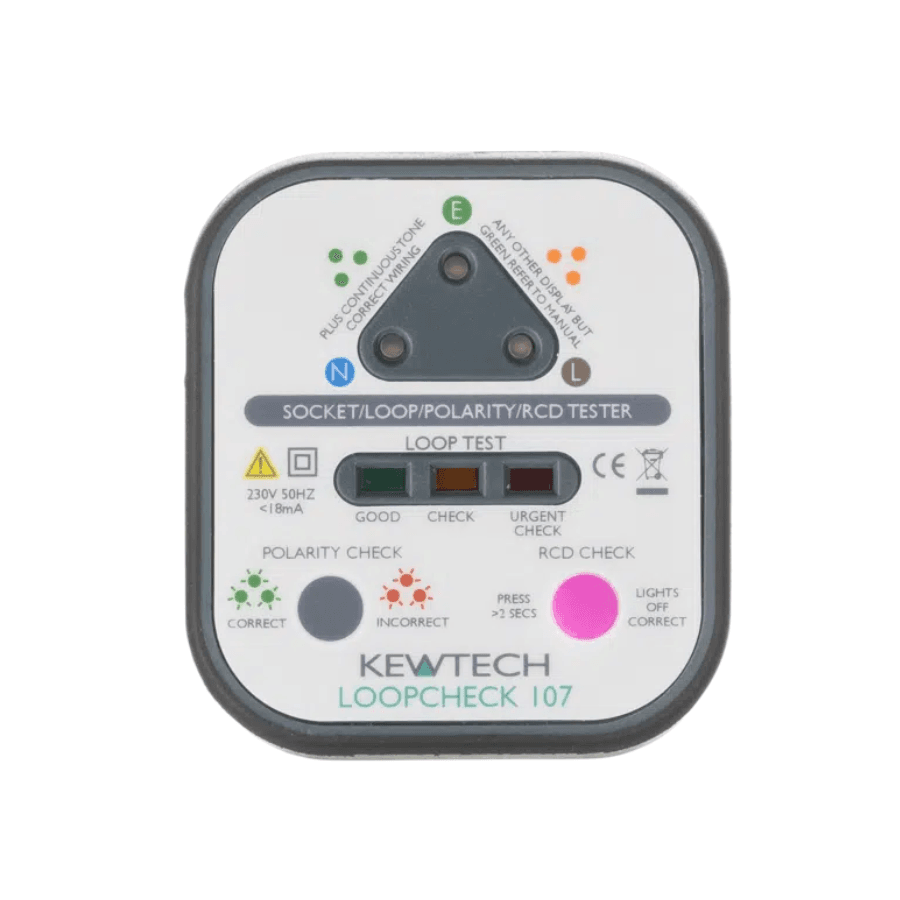

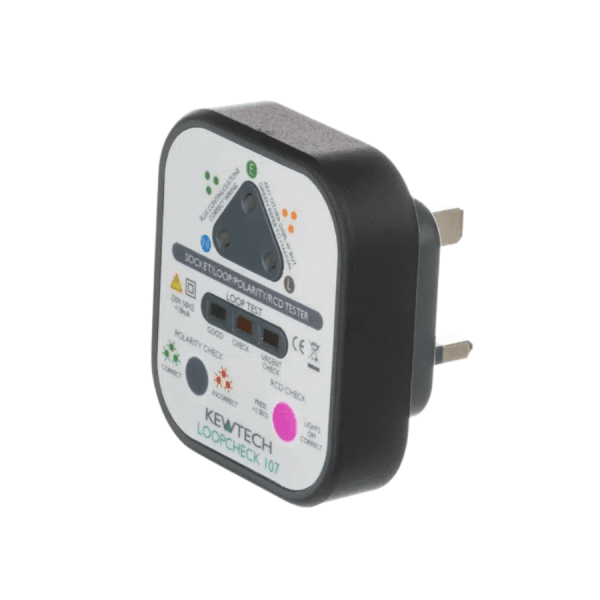

Kewtech Loopcheck 107 Socket Tester
The Kewtech Loopcheck 107 is an advanced yet easy to use plug in socket tester, designed to check every aspect of a socket, including…
- Wiring configuration
- Quality of the earthing
- Polarity of the mains supply
- RCD function check (30mA)
How to use the Loopcheck 107
Simply plug into the socket and after a couple of seconds the 107 will display the wiring condition. Good wiring condition will be indicated by three green LED’s and a continuous tone. Fault indication will be given by orange or red LED indication and a warbling tone.
Socket condition check
- Loop impedance check is carried out between L – N and N – E
- Good – Green LED with continuous tone
- Check – Orange LED with warbling tone
- Urgent Check – Red LED with warbling tone
Mains Polarity Test
- Earth is reference through the user
- Place finger on grey circle
- Correct polarity – Triangle LED’s flash green
- Incorrect polarity – Triangle LED’s flash red
RCD check (30mA RCD)
- Press the purple test switch for at least half a second
- Pass indication – LED indication (in loop bar) goes out and tone stops
- Fail indication – LED indication (in loop bar) remains on and three LEDs in the triangle flash amber with warble tone
Kewtech LOOPCHECK 107 key features
- Easy to use 4 in 1 first line diagnosis tool
- Checks wiring configuration, earthing quality, mains polarity and RCD function
- Compact and rugged design fits in any tool box
- Bright long lasting LED indication
- Audible confirmation as well as visual
- Advanced electronics for reliable indication
- Indicates actual fault location
