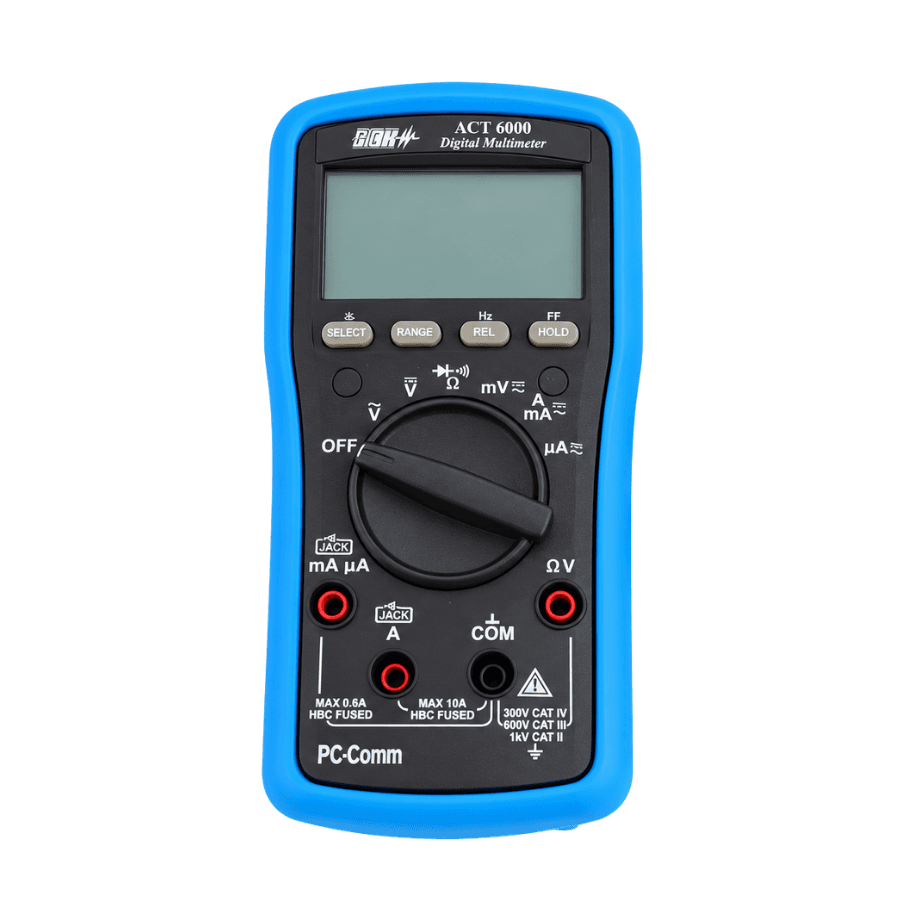

ACT 6000 Autoranging Digital Multimeter
ACT 6000 Autoranging Digital Multimeter gives alarm engineers and security professionals a practical tool for electrical testing. Its 6000-count high-contrast backlit LCD displays readings clearly, while the high-speed analogue bargraph helps users spot small changes and intermittent faults. Fully autoranging operation automatically selects the appropriate measurement range, so users can focus on positioning the probes and taking readings.
The meter measures AC and DC voltage up to 1000V and measures AC or DC current from 0.1µA to 10A across three ranges. Users can measure resistance from 0Ω to 60MΩ, while the continuity function sounds a buzzer when resistance falls below 20Ω. The diode test range also lets users check the forward and reverse bias operation of diodes and transistors.
For everyday testing, the ACT 6000 Autoranging Digital Multimeter combines straightforward controls with several protective and practical features. Beep jack range protection and fully HBC-fused inputs help protect both the user and the instrument, while the meter provides protection up to CAT IV. A tough rubber holster protects the meter during industrial use, while Data Hold, non-contact EF detection and an integrated magnetic hanger make testing more convenient. Users can also connect the optional PC interface to use the meter as a bench instrument or record readings.
Key Benefits
- Fully autoranging operation reduces the need to select measurement ranges manually.
- The 6000-count backlit LCD provides a clear display for reading measured values.
- A high-speed analogue bargraph helps identify small changes in readings and intermittent faults.
- Beep jack range protection helps protect the meter and user during operation.
- Fully HBC-fused inputs provide protection in the event of excess current.
- Data Hold keeps a displayed result visible until the HOLD button is pressed again or the meter is switched off.
- The integrated magnetic hanger supports convenient hands-free operation.
- Non-contact EF detection provides an additional built-in detection function.
- A separate battery and fuse compartment allows these parts to be replaced without opening the main instrument body or breaking the calibration seal.
- The optional PC interface allows the instrument to be used as a bench meter or to record readings.
Common Applications
ACT 6000 Autoranging Digital Multimeter is suitable for a range of testing, maintenance and inspection tasks, including:
- Alarm engineering electrical measurement and fault finding
- Security industry electrical testing
- AC and DC voltage measurement
- AC and DC current measurement
- Resistance measurement
- Continuity checking between two points
- Diode forward and reverse bias testing
- Transistor forward and reverse bias testing
- Non-contact EF detection
- Bench measurement and reading recording with the optional PC interface
Why Choose This Model?
The ACT 6000 combines fully autoranging AC/DC measurement, a 6000-count backlit display, high-speed bargraph, Data Hold and non-contact EF detection in one instrument. Its CAT IV protection, HBC-fused inputs, magnetic hanger and tough rubber holster also support practical day-to-day use by alarm and security engineers.
