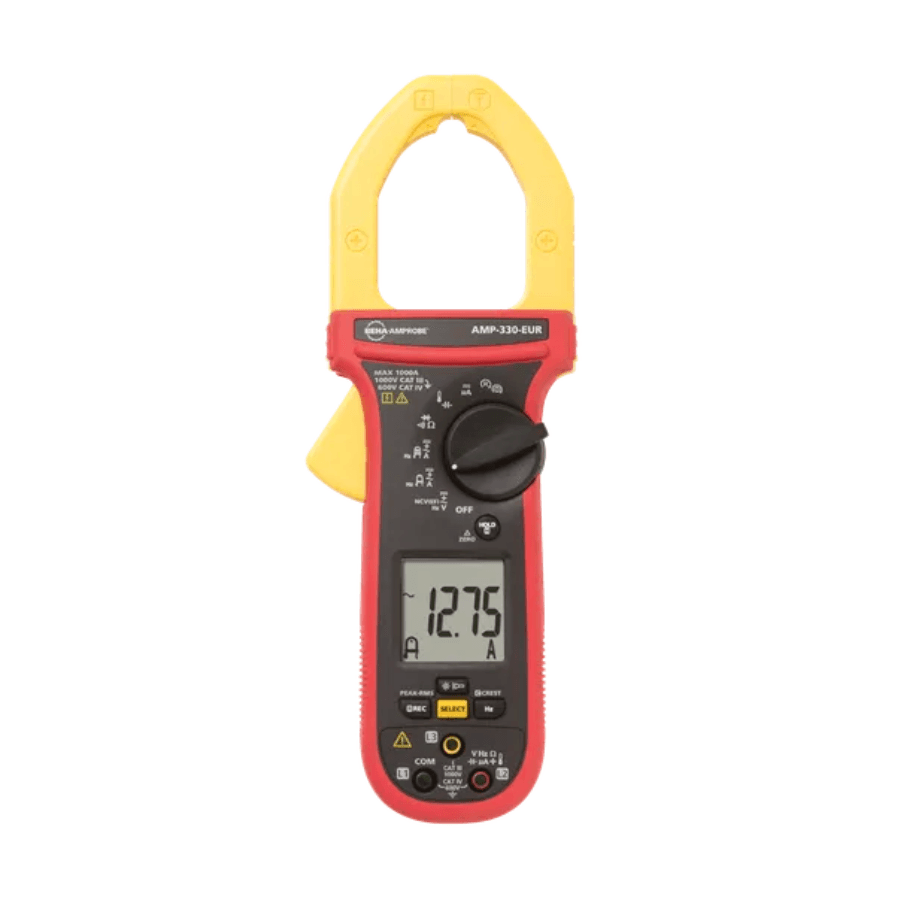

Amprobe 330-EUR Clamp Multimeter
Amprobe 330-EUR Clamp Multimeter is a handheld AC/DC clamp meter built for industrial motor maintenance, motor testing and HVAC diagnostics. It measures AC and DC current up to 1000 A and AC and DC voltage up to 1000 V. Its 51 mm jaw opening provides access around larger conductors, while True-RMS sensing supports accurate measurements on distorted waveforms.
For work with variable-frequency drives, a low-pass filter helps the meter measure current and voltage on non-sinusoidal signals. The Amp-Tip function provides precise low-current measurement down to a tenth of an amp. Amprobe 330-EUR Clamp Multimeter also supports inrush current testing, 3-phase and motor rotation indication, capacitance measurement and DC microamp testing.
Field-focused features include a backlit LCD, non-contact voltage detection and three input jacks for additional test functions. Temperature measurement is available through a Type-K input, making the meter suitable for HVAC diagnostic tasks as well as industrial electrical work. Amprobe 330-EUR Clamp Multimeter carries CAT IV 600 V and CAT III 1000 V safety classifications and operates from AA battery power.
Key Benefits
- True-RMS processing supports accurate readings on noisy, distorted and non-sinusoidal waveforms.
- A low-pass filter supports current and voltage measurement on variable-frequency drive systems.
- The 51 mm jaw opening accommodates larger conductors during industrial maintenance work.
- Amp-Tip provides precise low-current measurement down to one tenth of an amp.
- Inrush current measurement supports checks during industrial motor start-up.
- A backlit LCD improves visibility when taking readings in field environments.
- Non-contact voltage detection provides a rapid way to carry out live-wire checks.
- Type-K temperature input extends the meter to temperature measurement for HVAC diagnostic tasks.
- Three input jacks support additional testing functions, including motor rotation and 3-phase sequence testing.
- Peak Hold (Crest) provides an additional function for peak measurement work.
Common Applications
Amprobe 330-EUR Clamp Multimeter is suitable for a range of testing, maintenance and inspection tasks, including:
- Industrial motor maintenance and electrical testing
- HVAC diagnostic work
- Industrial motor start-up inrush current checks
- Phase rotation checks
- 3-phase sequence testing
- Start and run capacitor checks
- Flame-sensor microamp verification in gas appliances
- VFD-driven motor current measurement using the low-pass filter
- Precise low-current measurement using Amp-Tip
- Rapid live-wire checks using non-contact voltage detection
Why Choose This Model?
Among the listed AMP-EUR models, the AMP-330-EUR combines the widest 51 mm conductor capacity with 1000 A AC/DC current and 1000 V AC/DC voltage ranges. It is also the only model in the comparison with Peak Hold (Crest).
