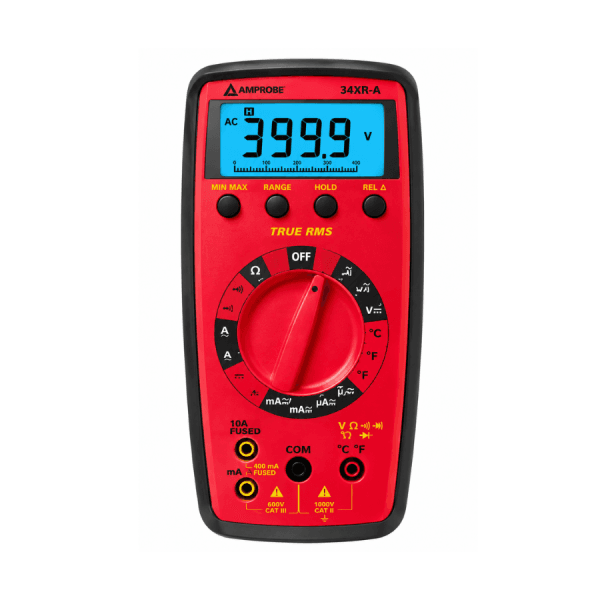

Amprobe 34XR-A TRMS Digital Multimeter
The Amprobe 34XR-A TRMS Digital Multimeter is a True RMS digital multimeter designed for contractors and field service technicians. It measures AC and DC voltage, AC and DC current, resistance, capacitance, frequency, temperature and duty cycle. Continuity and diode test functions add further flexibility for routine electrical testing and fault finding.
A 3-3/4 digit LCD provides up to 3999 counts and includes a 41-segment analogue bar graph. The display updates at a nominal rate of twice per second, while the built-in backlight helps make readings easier to view. Auto-ranging simplifies operation, and range lock is available when manual control of the measurement range is preferred.
The Amprobe 34XR-A TRMS Digital Multimeter also includes min/max recording and data hold for capturing useful readings during testing. Auto power-off helps conserve battery life, while overrange indication provides a clear response when a measurement exceeds the selected range. A separate battery and fuse access door supports straightforward maintenance, and the Magne-Grip holster provides a magnetic hanging strap for convenient positioning during use.
Key Benefits
- True RMS measurement supports AC voltage and current readings across the stated frequency ranges.
- Auto-ranging reduces the need to select each measurement range manually.
- Range lock gives the user direct control when a fixed range is preferred.
- Min/max recording helps capture changing measurement values during testing.
- Data hold keeps a reading on the display for easier viewing and recording.
- The backlit display improves visibility when the screen is harder to read.
- A 41-segment analogue bar graph provides an additional visual indication alongside the digital reading.
- Auto power-off helps preserve the installed 9 V battery when the meter is not being used.
- Separate battery and fuse access makes routine replacement and maintenance easier.
- The magnetic hanging strap allows the meter to be positioned while keeping hands available for test leads.
Common Applications
Amprobe 34XR-A TRMS Digital Multimeter is suitable for a range of testing, maintenance and inspection tasks, including:
- AC and DC voltage measurement
- AC and DC current measurement
- Resistance measurement
- Continuity testing
- Diode testing
- Capacitance measurement
- Frequency measurement
- Temperature measurement with the Type K thermocouple probe
- Duty cycle measurement
Why Choose This Model?
The Amprobe 34XR-A TRMS Digital Multimeter combines True RMS voltage and current measurement with temperature, frequency, capacitance and duty cycle functions. Its backlit display, analogue bar graph, min/max recording, data hold and magnetic hanging holster support practical field use.
