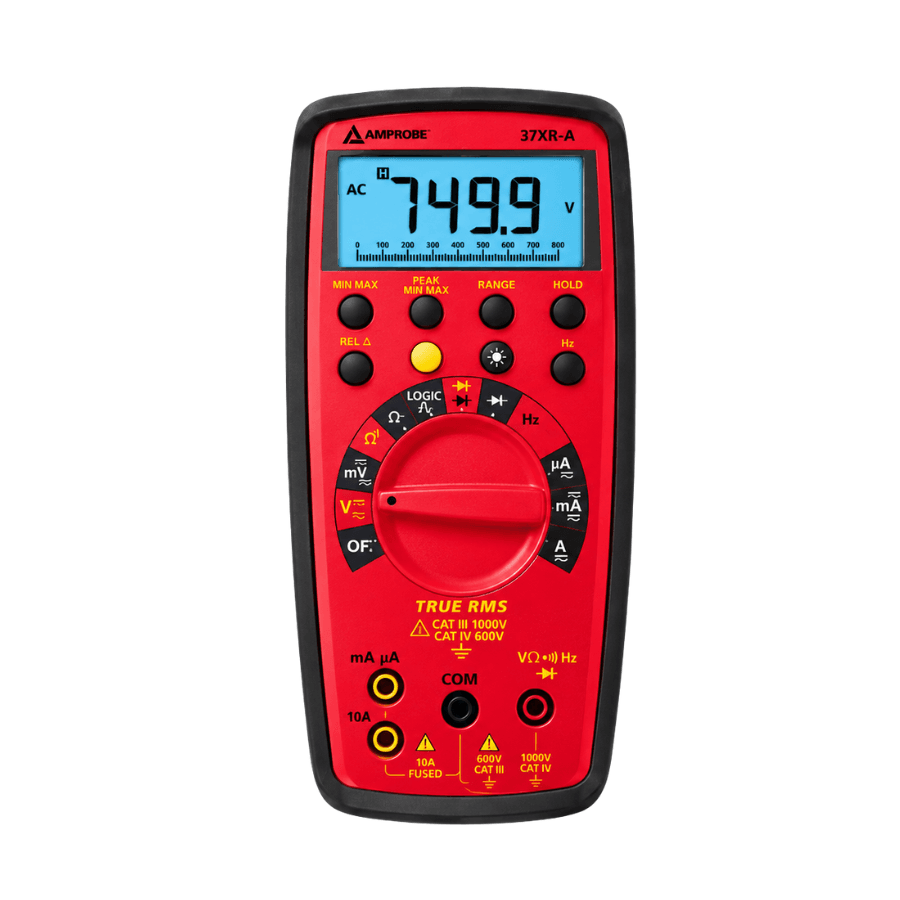

Amprobe 37XR-A TRMS Digital Multimeter


SKU: AMP/37XR-A
MPN: 2727808
  • Suited to bench and field electronics work
  • True-RMS AC/DC voltage and current testing
  • Tests components, logic and continuity
  • 10,000-count LCD with analogue bar graph
Write a review
Ask a question

£272.00 (ex VAT)

£326.40 (inc VAT)

Earn 272 points

In Stock - Express Delivery Available

Why buy from Test4Less?

  • Fast UK delivery
  • Full manufacturer warranty
  • 3 day calibration turnaround on eligible products
  • Price match promise
  • Official authorised distributor
  • Suited to bench and field electronics work
  • True-RMS AC/DC voltage and current testing
  • Tests components, logic and continuity
  • 10,000-count LCD with analogue bar graph
Free Shipping

Spend over £100 on any new goods order and receive automatic free shipping

Rewards

Points make purchases! For every £1 spent, earn back 1p that can be spent on any future new goods purchase

Our Price Promise

We offer a Price Match Promise! Find an equivalent tester for a cheaper price on a competitor site, and we’ll do our best to match it

Express Delivery & Calibration

Express Delivery is currently unavailable for customers wishing to add calibration to their New Goods order. For more information, visit our Delivery Information page.

£272.00 (ex VAT)

£326.40 (inc VAT)

Earn 272 points

In Stock - Express Delivery Available

Customers also viewed

Amprobe 37XR-A TRMS Digital Multimeter

Amprobe 37XR-A TRMS Digital Multimeter combines True-RMS measurement with a broad set of electrical, component and logic test functions. It measures AC and DC voltage and current, resistance, capacitance, inductance and frequency. Logic testing, diode testing, duty cycle measurement and a continuity beeper add further options for electronics fault finding at the bench or on the job site.

For clear readings, the meter uses a backlit 4-3/4 digit LCD with 10,000 counts and a 41-segment analogue bar graph. Autoranging helps simplify measurement setup, while min/max, average, relative, peak and data hold functions give users several ways to capture and review readings. The nominal display update rate is two readings per second.

Amprobe 37XR-A TRMS Digital Multimeter also includes practical features for regular testing work. An input warning tone alerts the user when the test leads are connected to the wrong jack, while the 10 A AC/DC input is fully safety fused. Auto power-off helps preserve the 9 V battery, and a separate battery and fuse door provides direct access for maintenance.



Key Benefits
  • True-RMS measurement supports AC voltage and current testing across the stated frequency ranges.
  • Component test functions cover resistance, capacitance and inductance for a wider range of electronics checks.
  • Logic testing to 20 MHz and frequency measurement to 40 MHz support electronic signal testing.
  • The backlit 10,000-count display improves reading visibility and includes a 41-segment analogue bar graph.
  • Min/max, average, relative, peak and data hold functions help capture and compare measurement results.
  • An input warning tone alerts the user if the test leads are connected to the wrong jack.
  • Autoranging reduces the need to select measurement ranges manually.
  • Auto power-off helps extend battery life when the meter is left unused.
  • A separate battery and fuse access door makes routine battery and fuse access easier.
  • The Magne-Grip™ Holster uses a magnetic hanging strap to support hands-free positioning.



Common Applications

Amprobe 37XR-A TRMS Digital Multimeter is suitable for a range of testing, maintenance and inspection tasks, including:

  • Electronics troubleshooting at the bench or on the job site
  • AC and DC voltage measurement
  • AC and DC current measurement
  • Resistance and continuity testing
  • Capacitance and inductance measurement
  • Frequency and duty cycle measurement
  • Logic testing
  • Diode testing
  • Min/max, average, relative and peak measurement checks



Why Choose This Model?

The Amprobe 37XR-A TRMS Digital Multimeter combines True-RMS AC measurements with component and logic testing in one autoranging meter. Its 10,000-count backlit LCD, analogue bar graph, input warning tone and magnetic hanging holster add practical features for electronics testing and fault finding.

Four Summary Bullet Points



Amprobe 37XR-A TRMS Digital Multimeter

Amprobe 37XR-A TRMS Digital Multimeter combines True-RMS measurement with a broad set of electrical, component and logic test functions. It measures AC and DC voltage and current, resistance, capacitance, inductance and frequency. Logic testing, diode testing, duty cycle measurement and a continuity beeper add further options for electronics fault finding at the bench or on the job site.

For clear readings, the meter uses a backlit 4-3/4 digit LCD with 10,000 counts and a 41-segment analogue bar graph. Autoranging helps simplify measurement setup, while min/max, average, relative, peak and data hold functions give users several ways to capture and review readings. The nominal display update rate is two readings per second.

Amprobe 37XR-A TRMS Digital Multimeter also includes practical features for regular testing work. An input warning tone alerts the user when the test leads are connected to the wrong jack, while the 10 A AC/DC input is fully safety fused. Auto power-off helps preserve the 9 V battery, and a separate battery and fuse door provides direct access for maintenance.



Key Benefits
  • True-RMS measurement supports AC voltage and current testing across the stated frequency ranges.
  • Component test functions cover resistance, capacitance and inductance for a wider range of electronics checks.
  • Logic testing to 20 MHz and frequency measurement to 40 MHz support electronic signal testing.
  • The backlit 10,000-count display improves reading visibility and includes a 41-segment analogue bar graph.
  • Min/max, average, relative, peak and data hold functions help capture and compare measurement results.
  • An input warning tone alerts the user if the test leads are connected to the wrong jack.
  • Autoranging reduces the need to select measurement ranges manually.
  • Auto power-off helps extend battery life when the meter is left unused.
  • A separate battery and fuse access door makes routine battery and fuse access easier.
  • The Magne-Grip™ Holster uses a magnetic hanging strap to support hands-free positioning.



Common Applications

Amprobe 37XR-A TRMS Digital Multimeter is suitable for a range of testing, maintenance and inspection tasks, including:

  • Electronics troubleshooting at the bench or on the job site
  • AC and DC voltage measurement
  • AC and DC current measurement
  • Resistance and continuity testing
  • Capacitance and inductance measurement
  • Frequency and duty cycle measurement
  • Logic testing
  • Diode testing
  • Min/max, average, relative and peak measurement checks



Why Choose This Model?

The Amprobe 37XR-A TRMS Digital Multimeter combines True-RMS AC measurements with component and logic testing in one autoranging meter. Its 10,000-count backlit LCD, analogue bar graph, input warning tone and magnetic hanging holster add practical features for electronics testing and fault finding.

Product Comparison
Feature 37XR-A
Reading type True RMS
Maximum DC voltage 1000 V
Maximum AC voltage 750 V
Maximum AC/DC current 10 A
Maximum inductance 40 H
Maximum capacitance 400 µF
Frequency capability Up to 40 MHz
Logic test Up to 20 MHz
Display 4-3/4 digit LCD, 10,000 counts, 41-segment analogue bar graph
Safety rating CAT III 600 V



General Specifications
Specification Details
Product type TRMS digital multimeter
Display 4-3/4 digit LCD, 10,000 counts with 41-segment analogue bar graph
Backlight Yes
Display update rate 2/sec nominal
Ranging Autoranging
Reading functions Min/max, average, relative, peak and data hold
Continuity indication Continuity beeper
Input warning Warning tone when test leads are in the wrong jack
10 A input protection AC/DC, fully safety fused
Safety rating CAT III 600 V
Power supply 9 V battery, NEDA 1604, JIS 006P, IEC 6F22
Power management Auto power-off
Battery and fuse access Separate access door



Measurement and Accuracy Specifications
Specification Details
DC voltage ranges 1000 mV, 10 V, 100 V, 1000 V
DC voltage accuracy All ranges: ±(0.1% rdg + 5 dgt)
DC voltage resolution 100 µV
AC voltage True-RMS ranges 45 Hz to 2 kHz: 1000 mV, 10 V, 100 V, 750 V
AC voltage accuracy, 750 V range 45 Hz to 1 kHz: ±(2.0% rdg + 10 dgts)
AC voltage accuracy, other ranges 45 to 500 Hz: ±(1.2% rdg + 10 dgts)
AC voltage accuracy, other ranges 500 Hz to 2 kHz: ±(2.0% rdg + 10 dgts)
AC voltage resolution 100 µV
AC coupling True RMS specified from 5% to 100% of range
DC current ranges 100 µA, 1000 µA, 10 mA, 100 mA, 400 mA, 10 A
DC current accuracy, 100 µA range ±(0.5% rdg + 10 dgt)
DC current accuracy, 1000 µA to 400 mA ±(0.5% rdg + 5 dgts)
DC current accuracy, 10 A range ±(1.5% rdg + 10 dgt)
DC current resolution 0.01 µA
AC current True-RMS ranges 45 Hz to 1 kHz: 100 µA, 1000 µA, 10 mA, 100 mA, 400 mA, 10 A
AC current accuracy, 100 µA to 100 mA ±(1.5% rdg + 10 dgts)
AC current accuracy, 400 mA range ±(2.0% rdg + 10 dgts)
AC current accuracy, 10 A range ±(2.5% rdg + 10 dgts)
AC current resolution 0.01 µA
Resistance ranges 1000 Ω, 10.000 kΩ, 100.00 kΩ, 1000.0 kΩ, 10.00 MΩ, 40.00 MΩ
Resistance accuracy, 1000 Ω to 1000 kΩ ±(0.5% rdg + 8 dgts)
Resistance accuracy, 10 MΩ ±(1.0% rdg + 10 dgts)
Capacitance ranges 40.00 nF, 400.0 nF, 4.000 µF, 40.00 µF, 400.0 µF
Frequency ranges 100.00 Hz, 1.0000 kHz, 10.000 kHz, 100.00 kHz, 1.0000 MHz, 10.000 MHz
Maximum stated frequency capability 40 MHz
Duty cycle 0.00% to 90.0%
Inductance Up to 40 H
Logic test Up to 20 MHz
dBm reading -13 dBm to +50 dBm
Diode test Yes
Continuity Continuity beeper



Mechanical and General Information
Specification Details
Operating temperature 0°C to 45°C at <70% RH
Battery type 9 V NEDA 1604, JIS 006P, IEC 6F22
Reading type True RMS for specified AC measurements
Carrying and positioning Magne-Grip™ Holster with magnetic hanging strap
Maintenance access Separate door for battery and fuse access



Specification Notes
  • AC voltage True-RMS performance is specified from 5% to 100% of the selected range.
  • AC voltage accuracy varies by range and frequency, with separate figures for the 750 V range and the other voltage ranges.
  • AC and DC current accuracy changes according to the selected current range.

Amprobe 37XR-A TRMS Digital Multimeter | User Manual

What’s Included
  • Magne-Grip™ Holster with magnetic hanging strap
