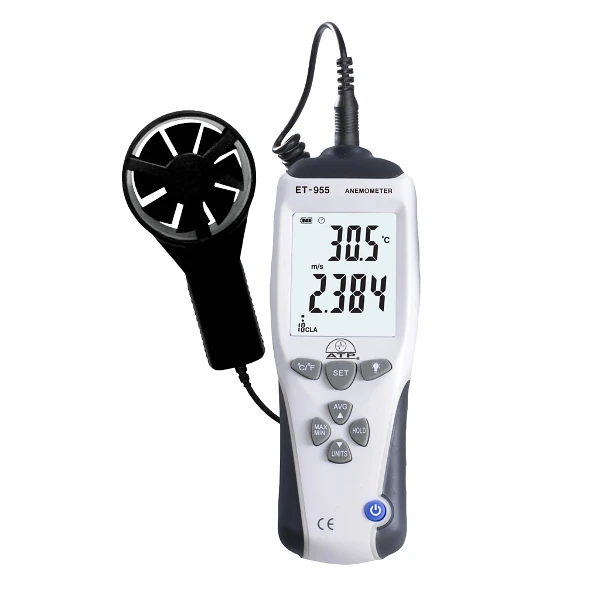

ATP AET-955 High Range Velocity and Volume Thermo-Anemometer
The ATP AET-955 is a remote vane thermo-anemometer for measuring air velocity, airflow volume and temperature. It uses a detachable 75mm vane with a 1.5m coiled connection cable and plug.
ATP positions the AET-955 for ventilation surveys, air conditioning, heating and environmental monitoring. It measures air velocity in m/sec, ft/min, km/hr, knots or mph. In addition, it measures volume in m³/min (CMM) or ft³/min (CFM), and temperature in °C or °F. The user manual also confirms that the instrument complies with EMC.
Efficient Airflow Measurement
The ATP AET-955 uses a 55mm high contrast LCD display with backlight and function indicators. The screen shows air velocity, temperature and air velocity level at the same time, so users can view key readings clearly during measurement.
It also includes Hold, MAX/MIN and AVG functions. The average mode displays the average reading of the latest 30 records. Meanwhile, the unit selection function lets users switch between supported velocity and temperature units.
Built for Field Use
The ATP AET-955 runs on a 9V battery and includes auto power off after approximately 15 minutes of inactivity. It also includes a low battery indicator, a standard ¼ inch tripod bush and a hard carry case for transport and storage.
Key Features
- Measures air velocity, airflow volume and temperature
- Detachable 75mm vane with 1.5m coiled connection cable and plug
- Air velocity range from 0.3 to 45m/sec
- Velocity units include m/sec, ft/min, km/hr, knots and mph
- Volume units include m³/min (CMM) and ft³/min (CFM)
- Temperature measurement in °C or °F
- 55mm high contrast LCD display with backlight and function indicators
- Dual display for velocity and temperature
- 12 segment bargraph for velocity
- Hold, MAX/MIN, average, auto power off and low battery functions
Technical Specifications
| Model / SKU | AET-955 |
|---|---|
| Instrument type | Remote vane thermo-anemometer |
| Measurements | Air velocity, airflow volume and temperature |
| Circuit | Based on fast and high accurate MCU design |
| Vane | Detachable 75mm vane with 1.5m coiled connection cable and plug |
| Display | 55mm hi-contrast LCD with backlight |
| Sampling time | 1 time per second |
| Air velocity range | 0.3m/s to 45m/s |
| Air velocity accuracy | ±3% ±0.1 |
| Velocity units | m/s, km/h, ft/min, knots and mph |
| Velocity resolution | m/s: 0.01, km/h: 0.1, ft/min: 1, knots: 0.1, mph: 0.1 |
| Airflow units | CMM and CFM |
| Airflow resolution | CMM: 0.001, CFM: 0.001 |
| Temperature measuring | High accuracy NTC resistance |
| Temperature measuring range | -30°C to 60°C / -22°F to 140°F |
| Temperature accuracy | ±1.5°C / ±2.7°F |
| Temperature resolution | 0.1°C / 0.1°F |
| Operating temperature | -10°C to 60°C / 14°F to 140°F |
| Operating humidity | ≤90% RH, non-condensation |
| Storage temperature | -10°C to 60°C / 14°F to 140°F |
| Air velocity level indication | Level 1 to 12 by analog bargraph, level 12 above by digits |
| Area set | 0.001 to 9999m² / 0.001 to 9999ft² |
| Measurement average | 30 point average for air flow |
| Maximum / Minimum | MAX/MIN |
| Reading freeze | Hold |
| Tripod mounting | Standard ¼ inch tripod bush |
| Power supply | 1 x 9V battery, type 006P, NEDA1604 or IEC6F22 |
| Auto power off | After approximately 15 minutes of inactivity |
| Dimensions | 185 x 66 x 33mm |
| Weight | 311g |
What’s Included
- ATP AET-955 High Range Velocity and Volume Thermo-Anemometer
- Detachable 75mm vane
- Hard carry case
- User manual
- 9V battery
