ATP ET-175 Humidity & Temperature Data Logger
ATP ET-175 Humidity & Temperature Data Logger gives clear and reliable monitoring for temperature and humidity. It supports dual channel measurement and records stable data across a wide range. You can set the logging rate to suit your task and view live readings on the large 29 mm LCD screen.
ATP ET-175 works across -40 to +70 °C and from 0 to 100 %RH. As a result, it suits storage areas, warehouses and production sites. The unit shows time and date and confirms logging with a green LED, so you always know it is active.
Simple Setup and Clear Display
Setup is quick through the USB interface and Windows software. You can choose °C or °F and adjust intervals from 1 second to 24 hours. In addition, the screen alternates data every 10 seconds and shows min and max values for fast checks.
Reliable Alarms and Data Handling

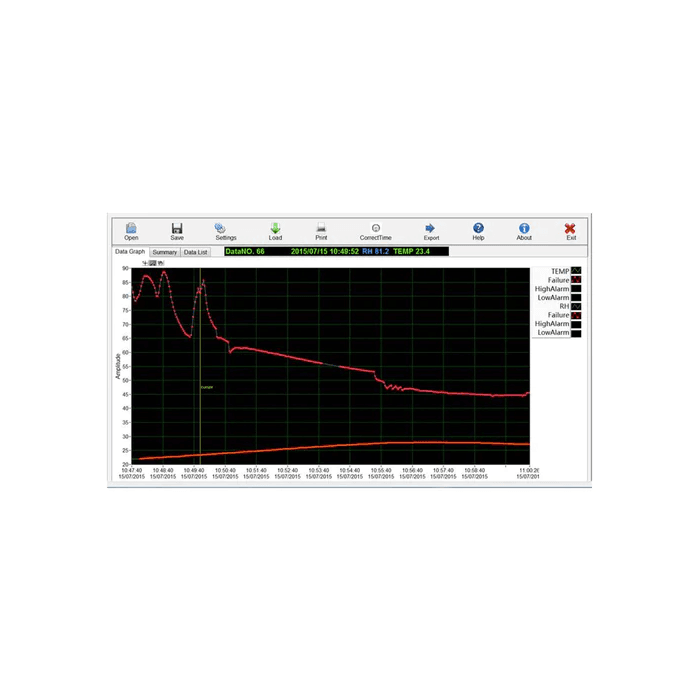

Two programmable alarm limits alert you when readings move out of range. A red LED gives a clear warning, while low battery indication helps prevent gaps in records. After logging, connect ATP ET-175 to a PC to review graphs, zoom into readings and export files to Microsoft Excel for reports.
Built with an impact resistant ABS case and rubber moulding, ATP ET-175 handles daily use with ease. Wall holder and padlock support secure mounting in fixed locations. Its compact body also fits tight cabinet spaces, making it practical for many environments.
Key Features
- Dual channel logging for temperature and humidity
- Selectable logging interval from 1 second to 24 hours
- Clear 29 mm LCD with alternating display
- Green LED confirms active logging status
- Red LED alarm indication when limits are exceeded
- User programmable high and low alarm limits
- USB connection for fast data transfer to PC
- Windows software with graph and zoom functions
- Excel export for simple audit reporting
- Low battery warning to protect stored data
- Wall holder and padlock support for secure mounting
- Compact design for cabinet installation
Technical Specifications
| Manufacturer | ATP |
| Product name | ATP ET-175 Humidity & Temperature Data Logger |
| Manufacturer part code | ET-175 |
| Measurement channels | Dual channel for temperature and humidity |
| Temperature range | -40 to +70 °C |
| Temperature resolution | 0.1 °C |
| Temperature accuracy | ±1 °C from -40 to +40 °C, ±2 °C from +40 to +70 °C |
| Humidity range | 0 to 100 %RH |
| Humidity resolution | 0.1 %RH |
| Humidity accuracy | ±5 %RH from 0 to 35 %RH and 80 to 100 %RH, ±3 %RH from 35 to 80 %RH |
| Memory capacity | 16,350 readings on each channel |
| Display | 29 mm LCD with time and date |
| Units supported | Degrees Celsius and Degrees Fahrenheit |
| Power supply | 3.6 V half AA lithium battery type SB-AA02 |
| Dimensions | 92 x 47 x 30 mm |
| Weight | 86 g |
| Calibration options | Certificate at 35 %RH and 75 %RH at 20 °C with optional UKAS at same points |
What’s Included
- ATP ET-175 Humidity & Temperature Data Logger
- Wall holder
- Padlock
