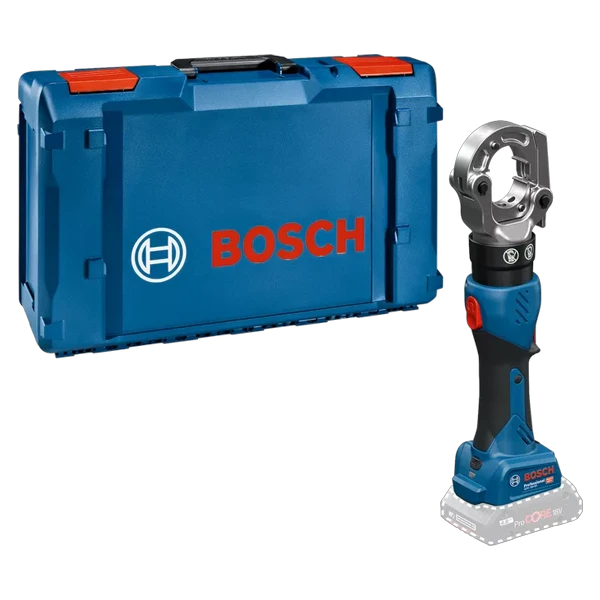

The GPH 18V‑60
Bosch GPH 18V‑60 battery-powered Crimping Tool boosts site output by using oil-powered force with no cord. Its compact body holds an efficient brush-free motor that pushes the oil pump to full pressure in seconds.
A steady frame and a head that spins 360 ° give accurate positioning even in tight riser cabinets or along overhead ducts. The built-in LED lights up the work area so engineers can check jaw seating before start-up.
Power, protection & platform perks
Smart circuits watch temperature and pressure, turning off the tool if safe limits are passed. A single-press auto return pulls the piston back after every cycle, speeding up the job on repeat connections. Because it is part of Bosch’s GPH 18V‑60, it shares batteries with drills, saws and lights, cutting idle time.
A tough aluminum shell protects the inner hydraulic parts from knocks, and an electronic brake stops the motor the instant you release the trigger. Sealed circuits block dust and water, lengthening service intervals.
Key Features:
- 60 kN force crimps up to 300 mm² lugs
- Accepts industry standard 12 t dies
- Auto retraction and dwell hold
- Press cycle <5 s
- GPH 18V‑60 BITURBO’s motor maximises speed
- Pressure sensor with LED feedback
- 360° rotating head
- Bare tool supplied in XL‑BOXX
- Weighs 4.4 kg excluding battery
- Three‑year service interval
Technical Specifications:
| Specification | Value |
|---|---|
| Manufacturer part code | 06019K8000 |
| Weight excl. battery | See datasheet |
| Warranty | 3 years with registration |
Product summary:
- 60 kN force crimps up to 300 mm² lugs
- Accepts industry standard 12 t dies
- Auto retraction and dwell hold
- Press cycle <5 s
