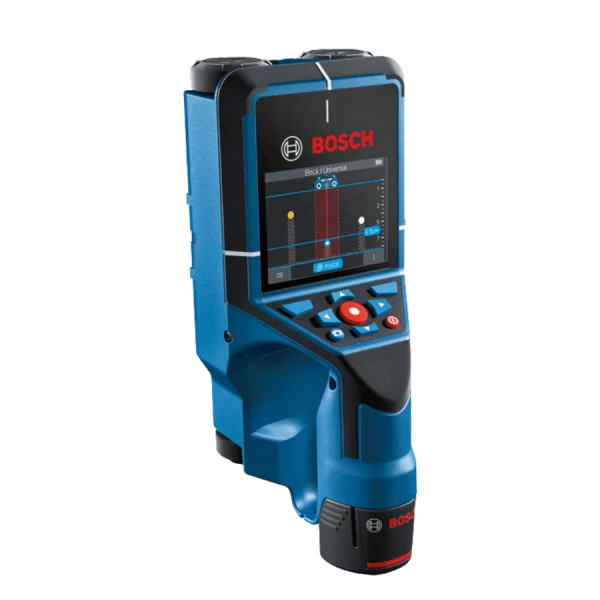

Bosch PRO Wallscanner D-Tect 200 C Detector
The Bosch PRO Wallscanner D-Tect 200 C Detector helps users locate hidden objects before drilling or cutting. Bosch radar technology scans walls and floors and shows results clearly on the display. As a result, users can work with more confidence and avoid damage to cables, pipes, and structural elements.
Clear visual feedback improves decision making during installation work. The Bosch PRO Wallscanner D-Tect 200 C Detector provides several viewing modes, allowing users to select the best option for each task. This flexibility makes scanning easier in difficult areas such as corners, ceilings, and dense materials.
Advanced Radar Detection
Reliable radar technology helps detect both common and complex objects hidden behind surfaces. Magnetic metals, non-magnetic metals, live cables, plastic pipes, and wooden structures can all be identified. In addition, the device indicates object depth to assist with safe drilling and accurate positioning.
Accuracy remains consistent during scanning tasks. With detection depths of up to 200 mm in dry concrete, the Bosch PRO Wallscanner D-Tect 200 C Detector is suitable for professional construction and renovation work. This capability helps users measure concrete coverage and check structural layouts before making changes.
Clear Views and Simple Documentation
Multiple scanning views help users interpret results quickly. Options such as Object View, Spot View, Signal View, and Signal View 2D provide clear visual guidance while locating materials behind walls. These modes help adapt the scanner to different wall types and scanning conditions.
Documentation is also simple with the built-in screenshot function. Images can be saved and exported using USB-C or an SD card for reporting and record keeping. The Bosch PRO Wallscanner D-Tect 200 C Detector therefore supports both safe working practices and efficient project documentation.
Key Features
- Uses Bosch radar technology to scan walls and structures
- Helps prevent damage before drilling or cutting
- Clear interface designed for professional construction tasks
- Multiple scan views help identify hidden objects
- Screenshot function records scan results for documentation
- USB-C connection allows quick transfer of stored images
- SD card support provides additional storage options
- Suitable for indoor and outdoor construction environments
- Measures concrete coverage to assist with structural work
- Supports several common building materials and surfaces
- Provides clear visual feedback during scanning
- Compact handheld design improves usability on site
Technical Specifications
| Manufacturer | Bosch |
| Product name | Bosch PRO Wallscanner D-Tect 200 C Detector |
| Manufacturer part code | 0 601 081 600 |
| Radar technology | Bosch radar detection system |
| Battery voltage | 12.0 V |
| Maximum detection depth | 200 mm |
| Detection depth in dry concrete | Up to 200 mm |
| Detection depth in early age concrete | Up to 60 mm |
| Detection depth in other wall types | Up to 80 mm |
| Detection depth for wooden substructures | Up to 38 mm |
| Accuracy | ±5.0 mm |
| Detectable materials | Magnetic metals, non magnetic metals, live cables, non live cables, plastic pipes, water filled plastic pipes, wooden substructures |
| Material identification | Live cable, magnetic metal, non magnetic metal, non metal material |
| Scanning views | Object View, Spot View, Signal View 2D, Signal View |
| Supported wall types | Brick, universal walls, concrete, drywall, panel heating, early age concrete, horizontal coring brick, vertical coring brick |
| Dust and splash protection | IP5X |
| Documentation output | USB-C connection and SD card support |
| Power supply | 12 V Li-ion battery or 4 x 1.5 V LR6 AA or 4 x 1.2 V HR06 AA |
| Weight | Approx. 0.7 kg |
| Additional functions | Leakage detection and distance measurement |
Document Downloads
What’s Included
- Bosch PRO Wallscanner D-Tect 200 C Detector
- Built-in screenshot documentation capability
