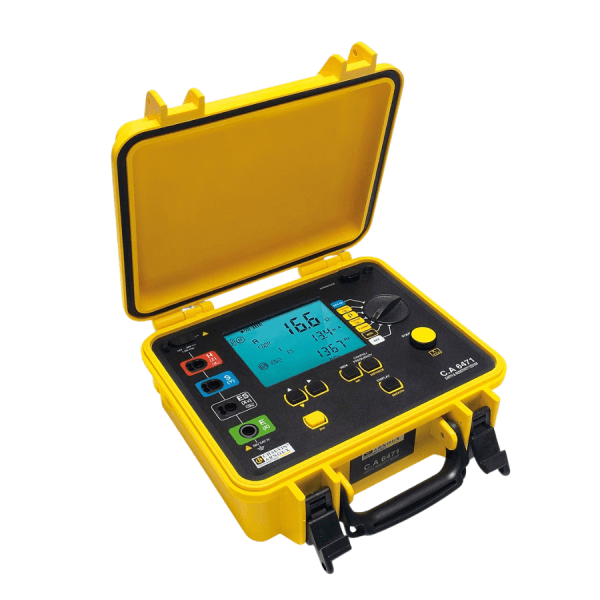

Chauvin Arnoux CA6471 Earth Tester

Chauvin Arnoux CA6471 Earth Tester

The Chauvin Arnoux CA6471 Earth Tester gives you one practical unit for earth resistance, soil resistivity, earth coupling and continuity checks. It is built for site work, so it combines clear operation with a strong and compact design.

With its rotary switch and front panel access, you can move through each test quickly and keep setup simple. In addition, the large backlit LCD helps you read values with ease in bright areas and in poor light.

Built for clear field testing

Colour-coded terminals make stake connection easier and help reduce wiring errors during setup. The Chauvin Arnoux CA6471 also runs a self-check at the start of each measurement, so it can flag bad connections or disturbance signals before they affect the result.

For demanding ground conditions, the instrument supports a wide measurement range from 0.001 Ω to 100 kΩ. As a result, it can handle low resistance checks as well as work in highly resistive soils.

Fast data handling and advanced calculation

When you need to log results on site, this tester stores up to 512 measurements in memory for later review. It also includes a USB communication output, which lets you move saved data to a PC for further processing with Ground Tester Transfer software.

The Chauvin Arnoux CA6471 helps speed up more complex tests as well. It can calculate earth coupling after three successive measurements, and it can also calculate soil resistivity using Wenner or Schlumberger methods once you enter the test distances.

Key Features

• Combines earth resistance, soil resistivity, continuity and earth coupling tests in one unit
• Supports 3 pole and 4 pole measurement methods for flexible site testing
• Uses colour-coded terminals to make lead connection faster and easier
• Large backlit LCD improves viewing in plant rooms, outdoor areas and low light spaces
• Rotary switch gives direct access to measurement functions from the front panel
• On-board memory stores readings for later review during longer test jobs
• USB communication output supports transfer of saved results to a computer
• Expert functions help automate coupling coefficient and soil resistivity calculations
• Designed for on-site use with a compact, rugged and leakproof build
• Supplied with rechargeable battery power for portable use away from fixed mains

Technical Specifications

Document Downloads

What’s Included

• Chauvin Arnoux CA6471 Earth and Resistivity Tester
• 2 C182 clamps with safety leads
• External mains charger
• Rechargeable battery
• Data export software
• USB lead
• Operating manual in 5 languages
• Simplified operating manual in 5 languages
• Identification labels in 5 languages
• Carry case
