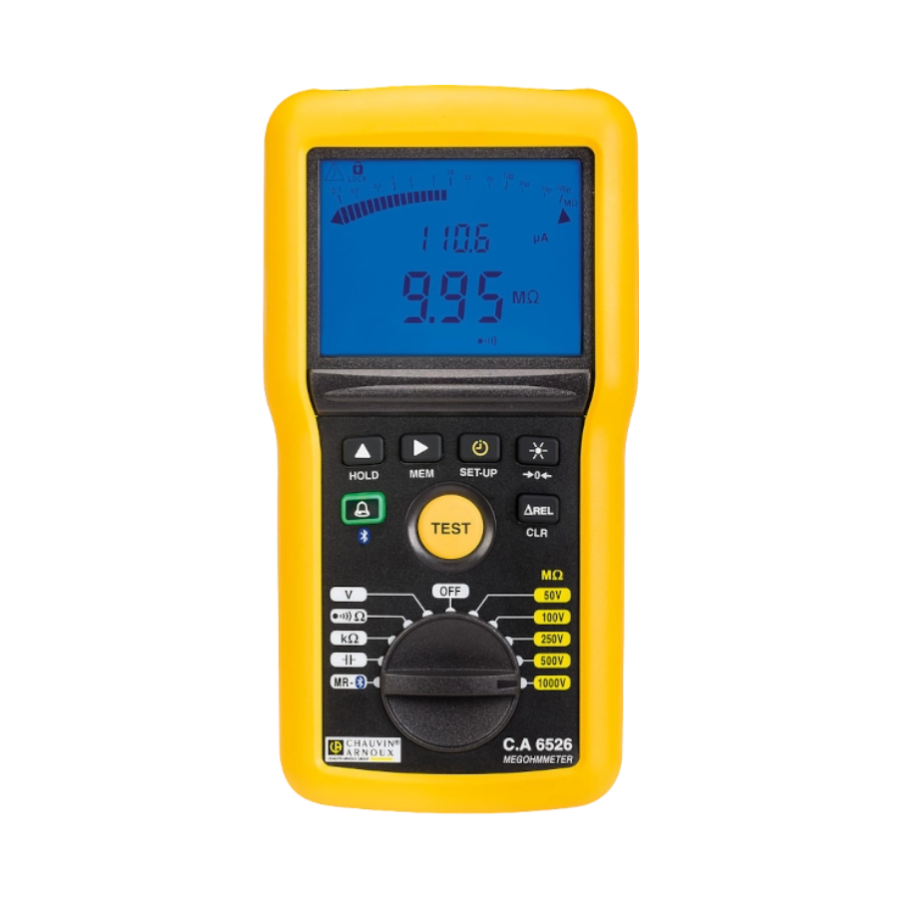

Chauvin Arnoux CA6526 Insulation & Continuity Tester
The Chauvin Arnoux CA6526 Insulation & Continuity Tester is a digital test instrument designed for industrial maintenance and routine electrical inspection. It measures insulation resistance up to 200GΩ and offers five selectable test voltages from 50V to 1000V. As well as insulation testing, it measures continuity, leakage current, voltage, frequency, resistance and capacitance. This range of functions makes it a practical choice for checking the condition of electrical installations and equipment.
For planned maintenance work, the tester provides manual, lock and programmed-duration test modes. Its PI and DAR ratio functions help assess insulation quality, while user-set alarm limits and a pass/fail indicator provide clear feedback during testing. The Chauvin Arnoux CA6526 Insulation & Continuity Tester also stores readings in its internal memory, allowing users to review results and transfer them to a PC for further analysis. The included Megohmmeter Transfer software supports this process and helps users keep a record of past measurements.
On-site testing is made easier by a magnetic mounting system that allows the instrument to attach to a suitable metal panel or surface. A digital display with two 4000-count displays and a logarithmic bar graph helps users view their readings. With a CAT IV 600V safety rating, IP54 protection and a compact, battery-powered design, the Chauvin Arnoux CA6526 Insulation & Continuity Tester is well suited to regular industrial maintenance tasks. It also comes with test leads, a carrying bag and other essential accessories for carrying out measurements.
Key Benefits
- Check a wide range of insulation conditions using five selectable test voltages, allowing greater control over the test.
- Carry out several electrical checks with one instrument, including insulation, continuity, voltage, frequency, resistance and capacitance measurements.
- Assess insulation quality using PI and DAR ratio functions, which help reduce the influence of temperature on insulation assessment.
- Set the duration of insulation tests to support repeatable measurements during planned maintenance.
- Use adjustable alarm limits and the pass/fail indicator light to identify whether readings meet the chosen limits.
- Store measurement results in the built-in memory, making it easier to compare readings from previous tests.
- Transfer saved readings to a PC using the included software for further analysis and record keeping.
- Attach the tester to a suitable metal surface using its magnetic mounting system for hands-free operation.
- View measurements on the digital display and logarithmic bar graph for clear reading of test results.
- Benefit from CAT IV 600V safety classification and IP54 protection during industrial maintenance work.
Common Applications
The Chauvin Arnoux CA6526 Insulation & Continuity Tester is suitable for a range of testing, maintenance and inspection tasks, including:
- Planned insulation testing of industrial electrical installations.
- Routine insulation resistance checks on electrical equipment.
- Monitoring insulation condition and identifying signs of ageing or deterioration.
- Continuity testing during electrical maintenance and inspection.
- Electrical voltage and frequency measurements.
- Resistance and capacitance measurements during equipment checks.
- Leakage current measurement as part of electrical testing.
- Timed insulation testing and PI/DAR assessment of insulation quality.
- Recording and comparing insulation test results over time.
Why Choose This Model?
The Chauvin Arnoux CA6526 combines insulation and continuity testing with programmable alarms, a pass/fail indicator and internal memory for recording results. Its magnetic mounting system, PC transfer software and multiple electrical measurement functions make it a practical option for industrial maintenance teams that need to test, record and review electrical measurements.
