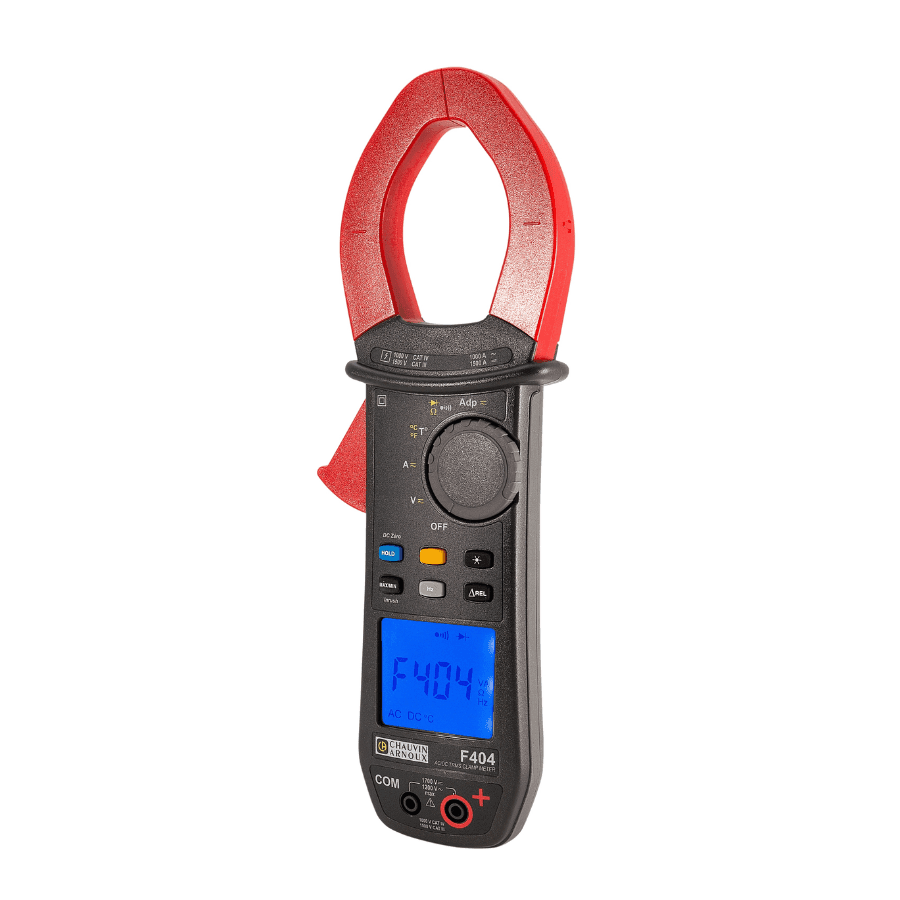

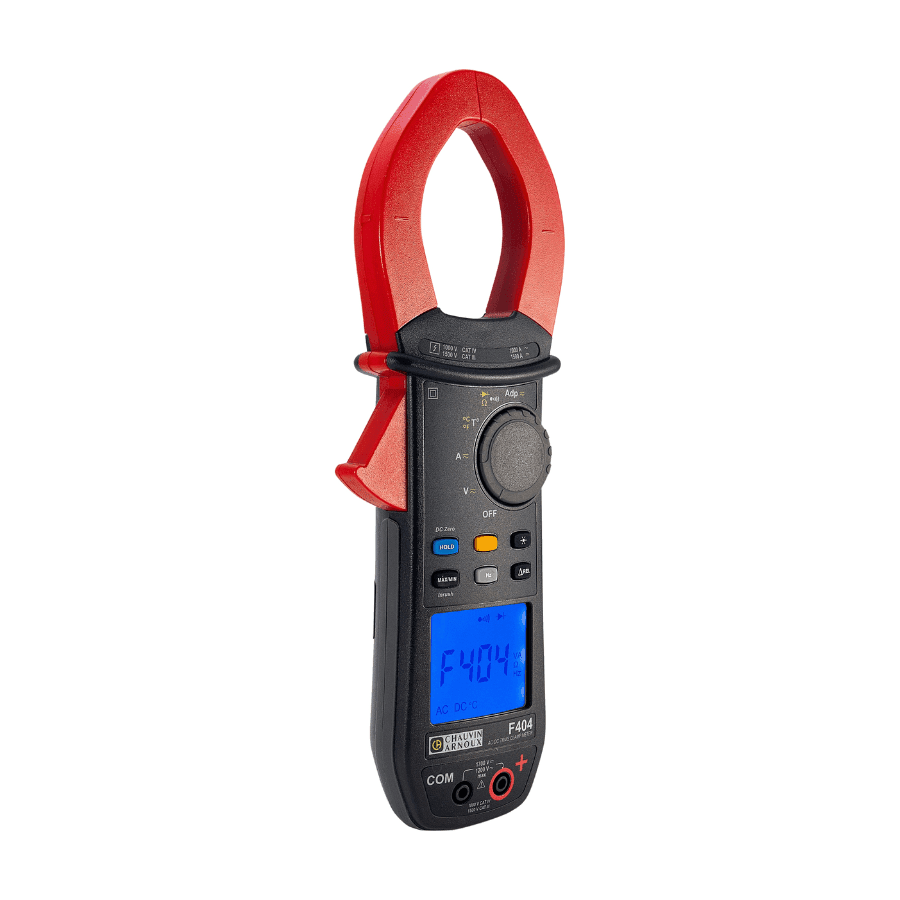

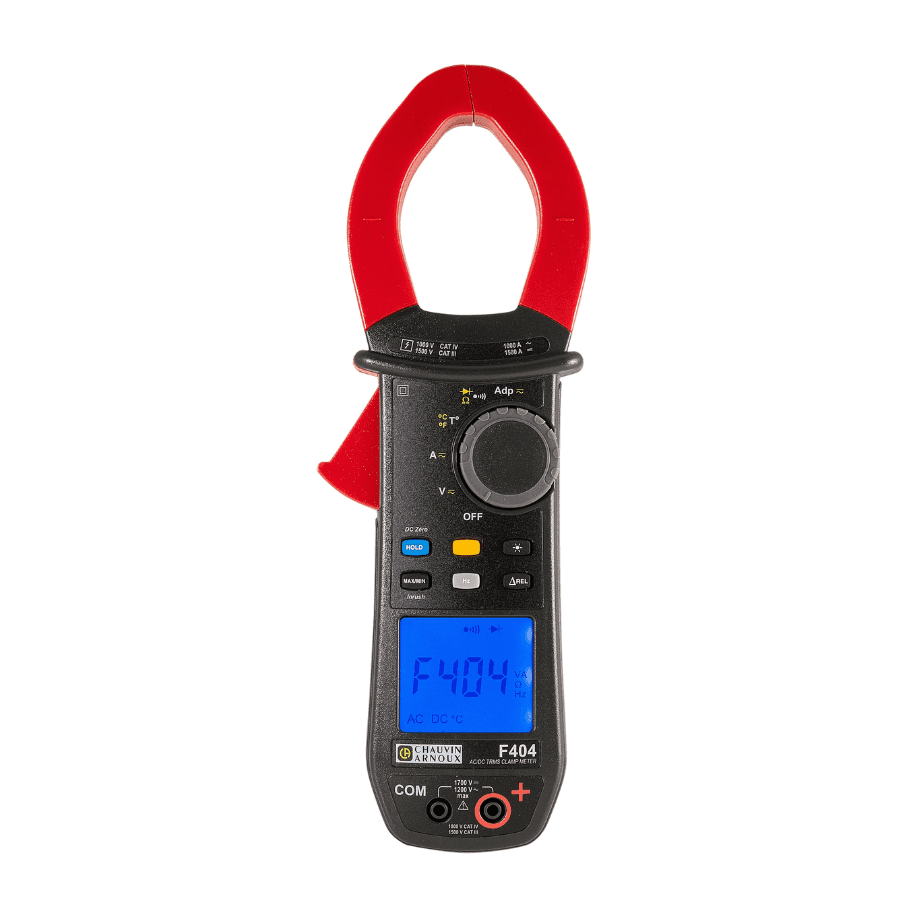

Chauvin Arnoux F404 Multimeter Clamp
The Chauvin Arnoux F404 Multimeter Clamp is designed for professionals who work on low-voltage electrical systems every day. It combines current, voltage and resistance measurement in one practical instrument. As a result, users can carry out testing, monitoring and fault finding with greater efficiency.
Built for demanding environments, this clamp meter supports maintenance work across industry, electrical distribution, transport systems and lifting equipment. The large backlit display provides clear readings in low-light areas. In addition, the rugged construction helps the instrument perform reliably during regular field use.
Accurate Measurement Performance
A fast 12-bit TRMS digital acquisition system helps the Chauvin Arnoux F404 Multimeter Clamp deliver dependable results across a wide range of applications. Automatic AC and DC detection reduces setup time and simplifies operation. This allows technicians to focus on the task rather than instrument settings.
TrueInrush measurement makes it easier to assess start-up currents on motors and electrical equipment. Relative and differential measurement functions provide additional analysis options when troubleshooting systems. Furthermore, Min and Max recording helps users identify changing conditions over time.
Designed for Everyday Use
The Chauvin Arnoux F404 Multimeter Clamp offers high measurement capability while remaining easy to handle. Its 48 mm clamp opening allows testing on larger conductors commonly found in industrial installations. Temperature measurement support also adds flexibility when carrying out inspections.
IP54 protection helps shield the instrument from dust and water splashes in challenging environments. Moreover, the adapter function expands measurement possibilities for specialist tasks. With strong performance, simple operation and a durable design, the Chauvin Arnoux F404 Multimeter Clamp is well suited to professional electrical work.
Key Features
- Designed for medium-power low-voltage applications
- Suitable for maintenance and diagnostic work
- Ideal for lift and elevator technicians
- Useful for transport and railway applications
- Large backlit display for clear visibility
- Automatic AC and DC detection
- TrueInrush current measurement capability
- Relative measurement functionality
- Differential measurement functionality
- Temperature measurement support
- Min and Max recording functions
- Audible continuity testing
- Resistance measurement capability
- Adapter function for expanded testing options
Technical Specifications
| Manufacturer | Chauvin Arnoux |
| Product name | Chauvin Arnoux F404 Multimeter Clamp |
| Manufacturer part code | F404 |
| Digital acquisition system | 12-bit TRMS |
| AC current measurement | Up to 1000 A AC |
| DC current measurement | Up to 1500 A DC |
| Voltage measurement | Up to 1000 V AC/DC |
| Maximum voltage capability | 1200 V AC / 1700 V DC |
| Clamp opening diameter | 48 mm |
| Protection rating | IP54 |
| Safety category | CAT IV 1000 V / CAT III 1500 V |
| Continuity testing | Audible continuity function |
| Resistance testing | Supported |
| Temperature measurement | Supported |
| Current analysis | TrueInrush measurement |
| Measurement analysis | Relative and differential measurements |
| Signal detection | Automatic AC/DC detection |
| Recording functions | Hold, Min and Max |
| Adapter compatibility | Adapter function supported |
Comparison Table
| Feature | Standard Clamp Meter | Chauvin Arnoux F404 Multimeter Clamp |
|---|---|---|
| TRMS Measurement | May not be available | 12-bit TRMS system |
| Current Measurement | Varies by model | 1000 A AC / 1500 A DC |
| Voltage Measurement | Varies by model | Up to 1000 V AC/DC |
| Inrush Current Testing | Often unavailable | TrueInrush function |
| Environmental Protection | Varies by model | IP54 rated |
| Safety Category | Varies by model | CAT IV 1000 V / CAT III 1500 V |
| Clamp Opening | Typically smaller | 48 mm |
Two different set types are available within the F400 Series range, allowing users to select the most suitable configuration for their testing requirements.
Document Downloads

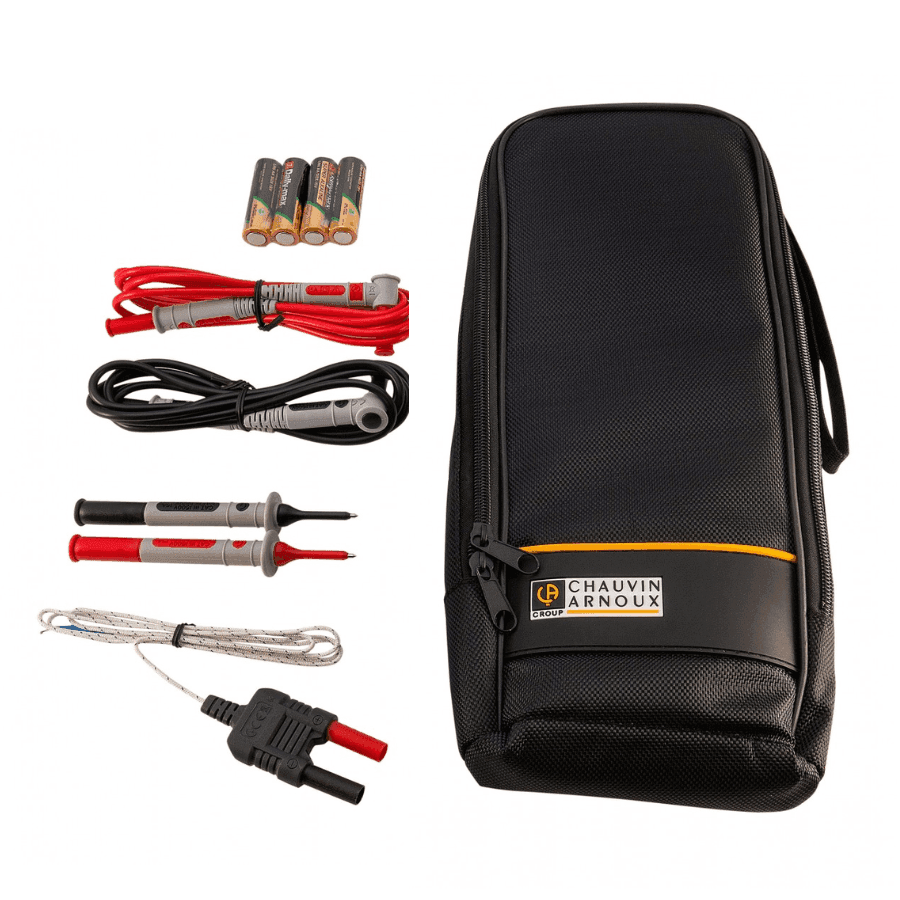

What’s Included
- Chauvin Arnoux F404 Multimeter Clamp
- User documentation
