Chauvin Arnoux F406 Multimeter Clamp

Chauvin Arnoux F406 Multimeter Clamp

The Chauvin Arnoux F406 Multimeter Clamp is designed to meet the demands of maintenance, testing, and diagnostics on medium-power installations. Built with precision in mind, it features a robust IP54-rated enclosure, making it suitable for challenging environments. This clamp multimeter offers reliable performance with a range of capabilities tailored for professional use.

Equipped with a high-speed 12-bit TRMS digital acquisition system, the F406 delivers unmatched accuracy regardless of the waveform’s complexity. Its ability to handle high current and voltage measurements, combined with advanced features like automatic AC/DC detection and inrush current analysis, ensures it meets the requirements of demanding tasks.

Advanced Measurement Capabilities

With a clamping diameter of 48 mm and the ability to measure up to 1,500 A DC or 1,000 A AC, the F406 is both versatile and efficient. Power measurements, harmonic distortion analysis, and phase rotation functions add to its utility in diagnostic tasks. The device is easy to use, featuring Hold, Min, Max, and Peak measurement functions for data capturing. Additionally, it offers a 3-year warranty for peace of mind.

Designed to IEC 61010-2-032 standards and backed by a CAT IV 1,000 V / CAT III 1,500 V safety rating, the Chauvin Arnoux F406 Multimeter Clamp ensures safe and reliable operation in any professional setting.

Key Features

• IP54-rated enclosure ensures durability in tough conditions
• Measures current up to 1,000 A AC and 1,500 A DC
• Handles voltages up to 1,200 V AC and 1,700 V DC
• Advanced 12-bit TRMS digital acquisition for high accuracy
• Power measurements include W, var, VA, and power factor
• Features harmonic distortion analysis (THDf, THDr)
• Automatic AC/DC detection simplifies usage
• True inrush current measurement for motor applications
• Phase rotation capability for “2-wire” systems
• Compact 48 mm clamping diameter for versatility

Technical Specifications

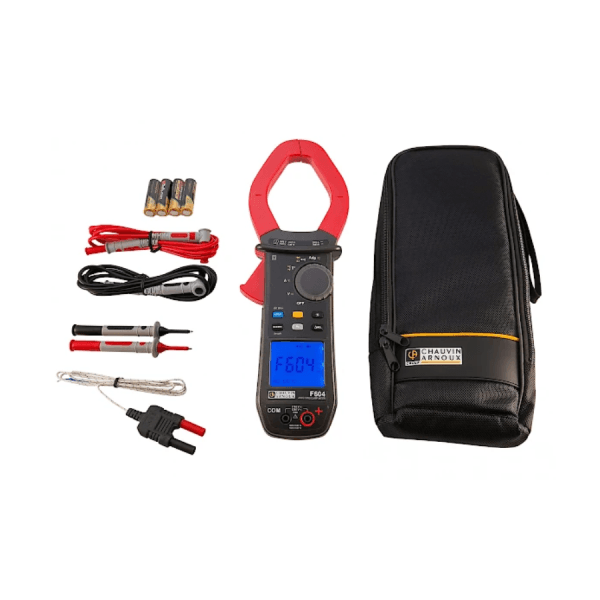

What’s Included

• Chauvin Arnoux F406 Multimeter Clamp
• User Manual
• Warranty Documentation
