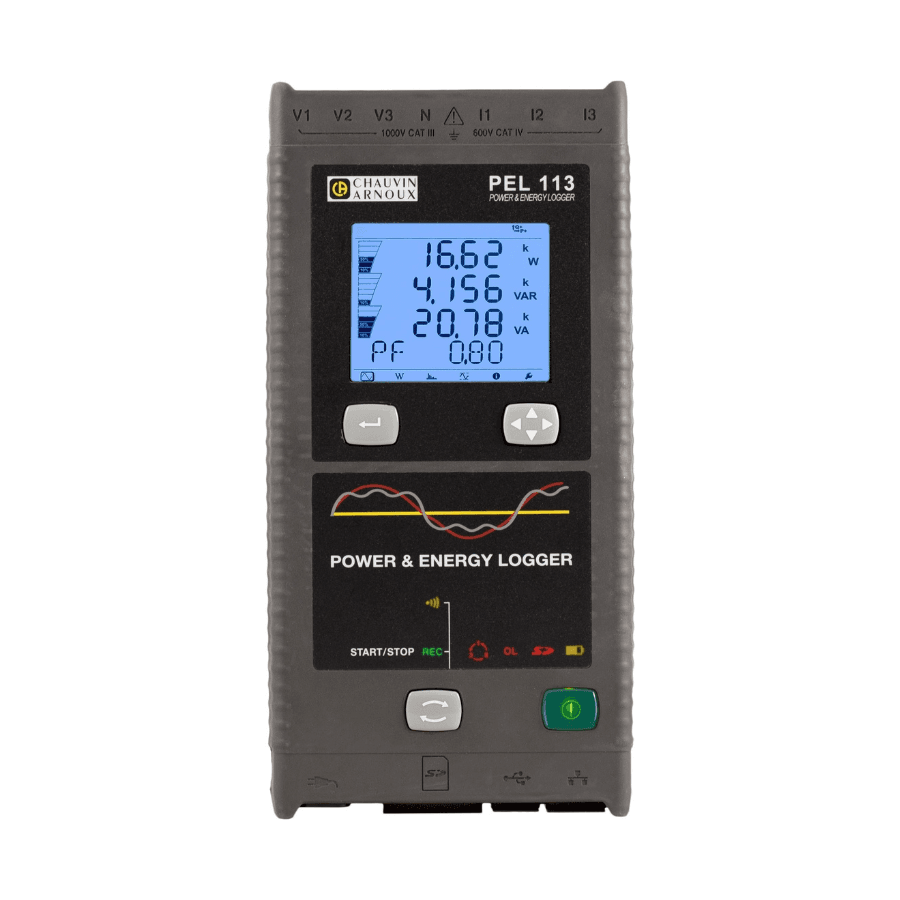

Chauvin Arnoux PEL113 Power Logger
Reliable energy monitoring helps identify inefficiencies and improve electrical system performance. The Chauvin Arnoux PEL113 Power Logger records power and energy data over extended periods, providing clear insight into how installations operate. Its compact body and magnetic mounting allow quick setup inside switchboards or electrical panels.
Accurate measurements are essential when performing energy audits or electrical diagnostics. The Chauvin Arnoux PEL113 Power Logger measures voltages up to 1000 V and currents up to 10 kA AC or 5 kA DC depending on the sensors used. Because of this wide capability, technicians can analyse power consumption in industrial facilities, commercial buildings, and energy systems.
Advanced monitoring and analysis
Detailed electrical analysis requires more than simple energy recording. This logger measures active, reactive, and apparent power while also evaluating harmonic distortion in voltage and current signals. As a result, engineers can understand energy losses and system behaviour during real operating conditions.
Flexible installation and connectivity
Easy installation makes field monitoring faster and more convenient. A compact magnetic housing allows the Chauvin Arnoux PEL113 Power Logger to mount directly inside electrical panels without additional brackets. Meanwhile, multiple communication options support USB, Ethernet, and WiFi connections for fast data access.
Energy logging often requires continuous recording across long periods. Adjustable logging intervals range from seconds to several months, allowing detailed monitoring for audits or diagnostics. With PEL Transfer software, the Chauvin Arnoux PEL113 Power Logger converts energy data into useful reports and cost calculations.
Key Features
- Compact housing designed for easy installation in electrical panels
- Magnetic mounting system allows quick secure positioning
- Records electrical power and energy data over extended periods
- Measures voltage and current parameters across multiple inputs
- Calculates power factor cosine phi and tan phi values
- Provides detailed harmonic and energy loss analysis
- Compatible with Android tools for motor diagnostic measurements
- USB Ethernet and WiFi connectivity support remote monitoring
- PEL Transfer software enables data configuration and reporting
- Self powered operation through phase connection
- Adjustable logging intervals allow flexible monitoring periods
- Designed for energy audits and electrical system diagnostics
Technical Specifications
| Manufacturer | Chauvin Arnoux |
| Product name | PEL113 Power Logger |
| Voltage measurement | Up to 1000 V AC or DC |
| Current measurement | Up to 10 kA AC or 5 kA DC depending on sensor |
| Frequency support | DC 50 Hz 60 Hz and 400 Hz |
| Power measurement | Active reactive and apparent power |
| Energy measurement | Active reactive and apparent energy |
| Harmonics analysis | Total harmonic distortion analysis for voltage and current |
| Display | Quadruple backlit digital display |
| Inputs | Three voltage inputs and three current inputs |
| Communication interfaces | USB Ethernet RJ45 and WiFi |
| Software | PEL Transfer configuration and data analysis software |
| Data logging interval | Adjustable from seconds to months |
| Mounting design | Compact magnetised housing |
| Power supply | Self powered via phase connection |
Document Downloads
What’s Included
- Chauvin Arnoux PEL113 Power Logger
- Quick start guide
- USB cable for local connection
- Software access instructions
