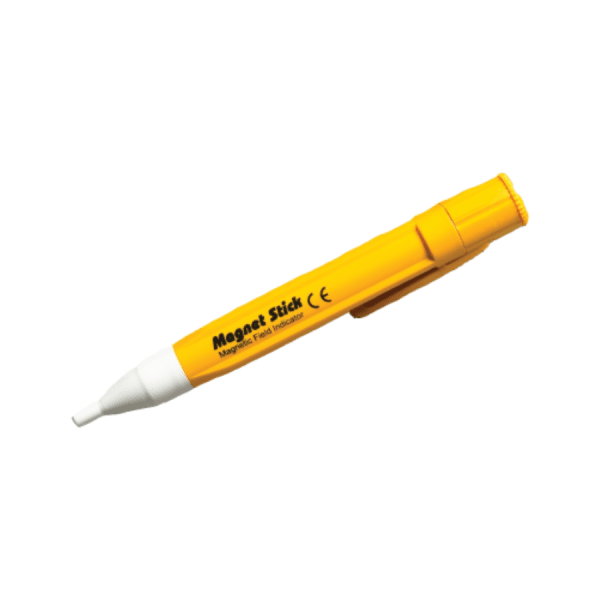

CIE Magnetstick Yellow Non-Contact Magnet Tester
CIE Magnetstick Yellow Non-Contact Magnet Tester checks for magnetic fields without making metallic contact. A powerful red light in the tip illuminates as soon as the tester detects a magnetic field. This immediate response helps users quickly confirm whether a magnetic coil is active during testing and servicing.
Users can often test equipment while it remains switched on and check magnetic coils through their protective covers. This approach can reduce the need to dismantle equipment simply to confirm whether a magnetic field is present. CIE Magnetstick Yellow Non-Contact Magnet Tester therefore supports quick fault finding and routine maintenance checks on magnetic components.
The tester detects magnetic fields from alternating current, direct current and permanent magnets. Users can apply it to solenoid valves, electrical relay switches and magnetic coils in a range of equipment. Its compact 145 mm length and low 0.04 kg net weight make it easy to handle during inspection, testing and maintenance work.
Key Benefits
- Checks for magnetic fields without metallic contact.
- Provides an immediate visual indication through a powerful red light in the tip.
- Allows equipment to be checked without having to switch it off.
- Can often detect magnetic coils through their protective covers.
- Helps reduce dismantling time when checking whether a coil is active.
- Responds to magnetic fields from alternating current, direct current and permanent magnets.
- Supports straightforward testing of solenoid valves and electrical relay coils.
- Compact dimensions and low net weight make the tester easy to handle.
Common Applications
CIE Magnetstick Yellow Non-Contact Magnet Tester is suitable for a range of testing, maintenance and inspection tasks, including:
- Checking solenoid valves in pneumatic control equipment.
- Checking solenoid valves in hydraulic control equipment.
- Testing electrical relays fitted with coils.
- Testing electrically controlled solenoid valves in vehicles.
- Testing electrically controlled solenoid valves in machines.
- Checking solenoid valves while servicing oil burners.
- Detecting magnetic fields from alternating current.
- Detecting magnetic fields from direct current and permanent magnets.
Why Choose This Model?
CIE Magnetstick Yellow Non-Contact Magnet Tester combines immediate red-tip indication with non-contact magnetic field detection. It can often check coils through protective covers and supports testing of AC, DC and permanent magnetic fields.
