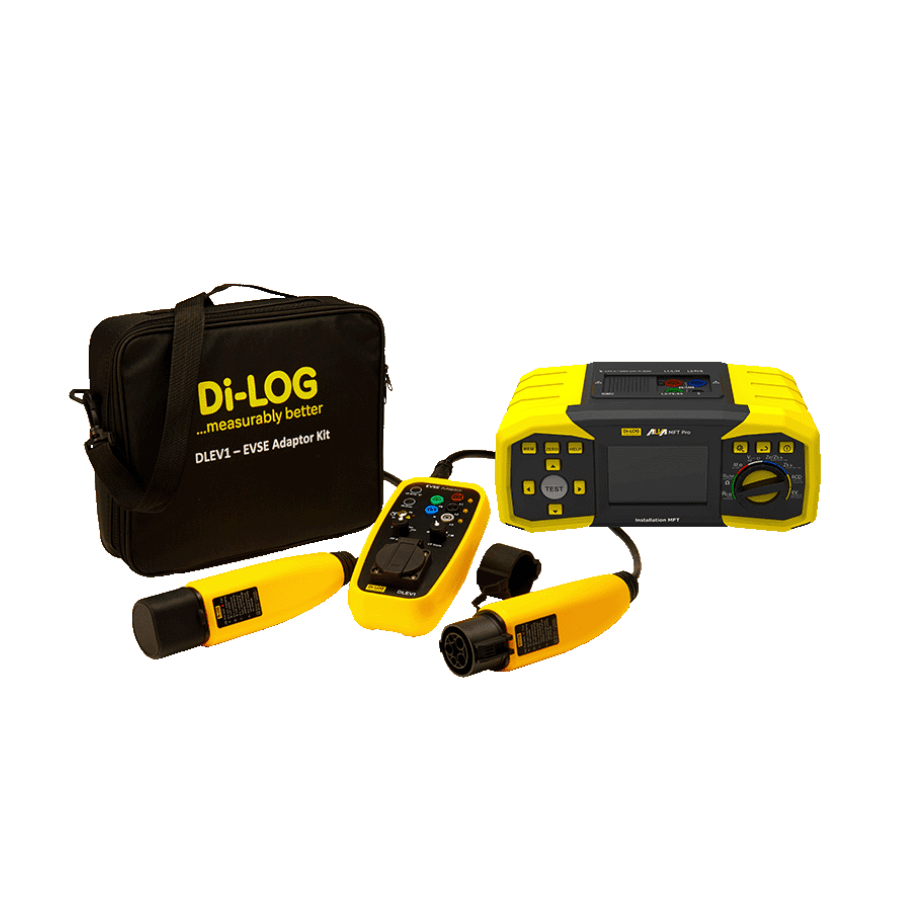

Di-Log ALVA MFT Pro EV Installation Multifunction Tester Kit
The Di-Log ALVA MFT Pro EV Installation Multifunction Tester Kit gives electricians a reliable way to test EV charge points and electrical systems. It combines advanced testing functions with a clear full-colour TFT display for fast readings in the field. In addition, the tester supports EV charger checks, loop testing, insulation testing, and RCD verification in one compact unit.
Built to meet BS EN 61557 standards, the Di-Log ALVA MFT Pro EV helps improve safety and testing accuracy. The included DLEV1 EVSE charge point adaptor allows full testing of Mode 3 EV charging systems. As a result, users can complete installation checks with fewer tools and less setup time.
Advanced EV Testing Performance
Automatic EV test functions help speed up installation verification and reduce manual errors. The tester supports AC, A, B, B+, EV and F type RCD testing, making it suitable for modern electrical systems. Furthermore, intelligent 2/3 wire high-current loop detection improves workflow by selecting the correct test method automatically.
Low current non-trip loop testing allows accurate readings while reducing the chance of unwanted RCD tripping. The Di-Log ALVA MFT Pro EV also includes 4mA continuity testing for inductive loads such as motor windings. This makes the unit useful for both EV charger work and wider electrical maintenance tasks.
Designed for Everyday Site Use
A built-in rechargeable battery system helps reduce downtime during long working days. The internal memory stores up to 1,000 measurements, allowing easier record keeping and improved traceability. In addition, the secondary display provides clear pass and fail results for quicker decision making on site.
Strong testing performance and simple controls make the Di-Log ALVA MFT Pro EV suitable for contractors, inspectors, and maintenance teams. The unit delivers accurate readings across voltage, continuity, insulation, loop impedance, PSC and RCD testing applications. Consequently, users can complete electrical verification work with greater confidence and efficiency.
Key Features
- Full-colour TFT display with interactive pass and fail indication
- Supports AC, A, B, B+, EV and F type RCD testing
- Automatic EV charge point verification sequence
- Integrated DLEV1 EVSE adaptor for Mode 3 charger testing
- Intelligent 2/3 wire high-current loop detection
- Low current non-trip loop impedance testing
- 4mA continuity testing for inductive loads
- Secondary display for recorded test results
- Built-in memory storage for up to 1,000 measurements
- Earth resistance testing with optional accessory kit
- Rechargeable NiMH battery operation for extended use
- Supports PE pre-test and CP status verification
- Measures contact voltage during RCD testing
- Designed to meet BS EN 61557 testing standards
Technical Specifications
| Product name | Di-Log ALVA MFT Pro EV Installation Multifunction Tester Kit |
| Display type | Full-colour TFT display |
| AC voltage range | 0V to 550V TRMS |
| DC voltage range | 0V to 550V |
| Frequency range | 10Hz to 499Hz |
| Frequency resolution | 0.1Hz |
| AC voltage accuracy | ±2% ±2 digits |
| DC voltage accuracy | ±2% ±2 digits |
| Frequency accuracy | ±0.2% ±1 digit |
| Phase rotation | Right 1-2-3 and Left 3-2-1 |
| Continuity range 200mA | 0.01Ω to 1999Ω |
| Continuity range 4mA | 0.1Ω to 1999Ω |
| Insulation test voltages | 50V, 100V, 250V, 500V and 1000V |
| Insulation resistance range | Up to >999MΩ |
| Line impedance range | 0.20Ω to 9999Ω |
| Earth loop impedance range | 0.20Ω to 9999Ω |
| Non-trip loop impedance range | 0.40Ω to 9999Ω |
| PSC measurement range | 0.00A to 100kA |
| PFC measurement range | 0.00A to 100kA |
| RCD trip time range | 0.0ms to 500.0ms |
| RCD trip current range | 0.2 x IΔn to 2.2 x IΔn |
| Supported RCD types | AC, A, B, B+, EV, F and S |
| Nominal RCD currents | 6mA, 10mA, 30mA, 100mA, 300mA, 500mA, 650mA and 1A |
| Contact voltage range | 3.0V to 99.9V |
| Data storage capacity | Up to 1,000 measurements |
| Battery type | Rechargeable NiMH batteries |
| Charging method | Integrated charger plug |
| Compliance standard | BS EN 61557 |
| EV testing support | Mode 3 EV charging systems |
Document Downloads
What’s Included
- Di-Log ALVA MFT Pro EV multifunction tester
- DLEV1 EVSE charge point adaptor kit
- Rechargeable NiMH battery pack
- Integrated battery charger
- Test leads and connectors
- User documentation
