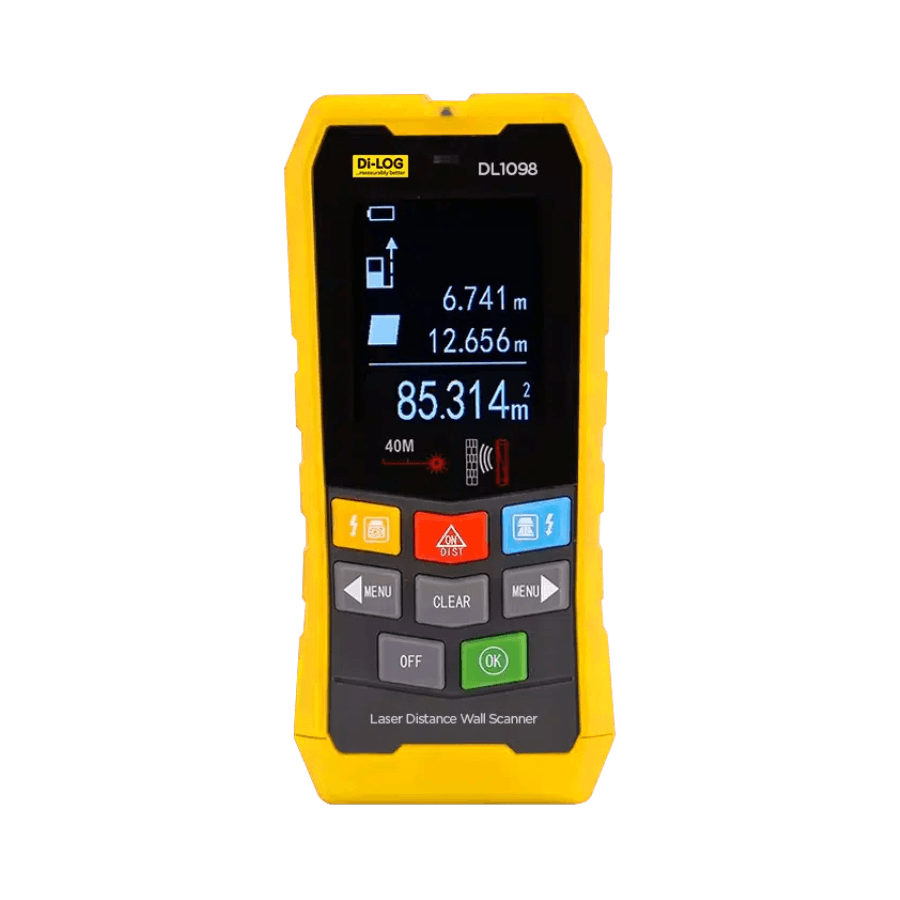

Di-Log DL1098 5-in-1 Laser Distance Wall Scanner
The Di-Log DL1098 5-in-1 Laser Distance Wall Scanner helps users work safely and accurately during renovation, installation, and maintenance tasks. It quickly detects wood, metal, and live wires hidden behind walls while also measuring distances up to 40 metres. Clear audio alerts and a bright colour TFT display make readings easy to understand in different working conditions.
Built for both trade and DIY use, the scanner combines several useful functions in one compact tool. Auto calibration improves scanning accuracy and helps reduce setup time before use. The lightweight body also makes it easy to carry around busy work areas or use overhead for longer periods.
Fast Detection Performance
Using advanced sensing technology, the Di-Log DL1098 5-in-1 Laser Distance Wall Scanner can detect ferrous metals up to 100mm deep and non-ferrous metals up to 80mm deep. It also identifies wooden studs between 20mm and 38mm depending on the selected mode. Live voltage detection adds another layer of safety when drilling or cutting into walls.
In addition, the built-in laser distance meter supports accurate measurements up to 40m for layout work and room sizing. Audible voice alerts provide quick feedback while scanning, which is useful when visibility is limited. The large colour screen keeps readings visible in bright or dark environments.
Designed For Everyday Use
Compact dimensions and rechargeable battery power make the scanner practical for regular site work. Auto power off helps extend battery life during periods of inactivity and keeps the unit ready for the next task. Durable construction also helps the scanner withstand demanding working environments.
Whether checking walls before drilling or measuring spaces for installation work, the Di-Log DL1098 5-in-1 Laser Distance Wall Scanner delivers reliable performance in one easy-to-use device. Its simple controls, clear display, and multiple detection modes make daily jobs quicker and safer for users at every skill level.
Key Features
- Measures distances up to 40 metres
- Detects ferrous metals through walls
- Finds non-ferrous metal pipework accurately
- Locates live AC voltage safely
- Colour TFT display improves visibility
- Voice alerts provide instant feedback
- Rechargeable Li-ion battery included
- Auto calibration supports reliable readings
- Multiple scanning modes for different materials
- Compact body for easier handling
- Designed for renovation and maintenance tasks
- Automatic shut-off saves battery power
- Suitable for professional and DIY users
- Robust housing for regular site use
Technical Specifications
| Product name | Di-Log DL1098 5-in-1 Laser Distance Wall Scanner |
| Manufacturer | Di-Log |
| Manufacturer part code | DL1098 |
| Scanner type | 5-in-1 wall scanner with laser distance meter |
| Laser distance range | Up to 40m |
| Display type | Colour TFT display |
| Voltage indication range | 100V to 250V AC |
| Frequency range | 50Hz to 60Hz |
| Wood and metal stud detection precision mode | 20mm |
| Wood and metal stud detection depth mode | 38mm |
| Ferrous metal detection depth | 100mm |
| Non-ferrous metal detection depth | 80mm |
| Voltage detection depth | 50mm |
| Power supply | 300mAh Lithium rechargeable battery |
| Battery type | Li-ion rechargeable |
| Auto calibration | Yes |
| Voice indication | Audible voice alerts |
| Auto power off | Yes |
| Dimensions | 150 x 68 x 32 mm |
| Weight | 153g |
| Suitable applications | Wall scanning, pipe detection, stud finding and distance measurement |
| Safety compliance | CE and UKCA compliant |
Document Downloads
What’s Included
- Di-Log DL1098 5-in-1 Laser Distance Wall Scanner
- Rechargeable Li-ion battery
