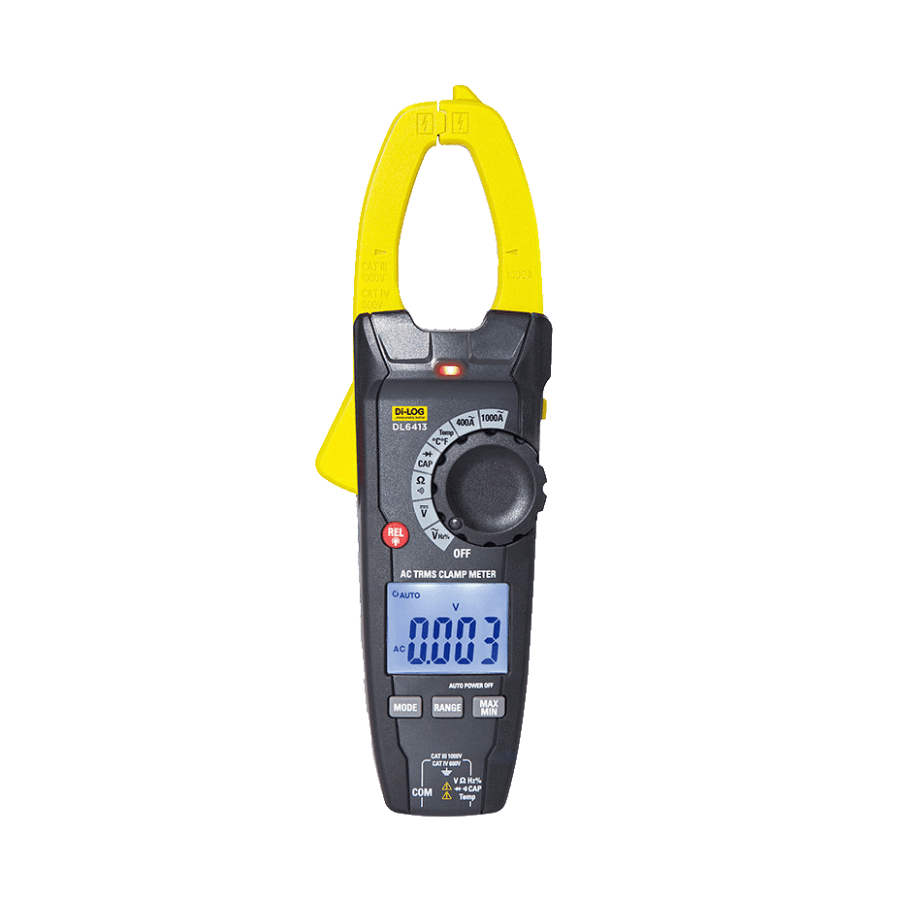

Di-Log DL6413 TRMS AC Clamp Meter

The Di-Log DL6413 TRMS AC Clamp Meter helps engineers and technicians test AC current with clear, dependable results. It measures up to 1000A AC, so it suits many electrical, solar, HVAC and maintenance tasks. Its compact shape also makes it easy to carry between jobs.

Built for daily site use, this clamp meter combines True RMS testing with voltage, resistance, capacitance, frequency, duty cycle and temperature functions. As a result, users can check more faults with one tool. The rotary dial keeps function choice simple and helps reduce set-up time.

Practical Testing Performance

For current work, the Di-Log DL6413 TRMS AC Clamp Meter covers 0.1A to 1000A across two AC current ranges. In addition, it supports AC and DC voltage up to 1000V. This makes it useful for both supply checks and general fault finding.

Capacitance testing adds value when checking components during service work. Meanwhile, the temperature function works with the supplied K-type adaptor and thermocouple. A bright LED torch also improves visibility in darker panels or low-light plant rooms.

Safe, Clear and Site Ready

The 35mm jaw opening helps the user clamp around cables in tight spaces. Furthermore, complete protection is provided across all measurement ranges. The unit meets EN61010 CAT III 1000V and CAT IV 600V safety and performance requirements.

A 24-month manufacturer warranty covers defects in materials and workmanship. Annual recalibration is recommended to help maintain measurement accuracy. Overall, the Di-Log DL6413 TRMS AC Clamp Meter gives a broad test range in a simple, robust instrument.

Key Features

True RMS AC current testing up to 1000A
Two AC current ranges for wider site use
AC voltage and DC voltage testing up to 1000V
Auto ranging on voltage, resistance and capacitance
Capacitance measurement for component checks
Temperature testing with K-type adaptor and thermocouple
Frequency measurement up to 99.99kHz
Duty cycle measurement from 10% to 90%
Built-in ultra-bright LED torch for low-light work
35mm jaw opening for cables in confined spaces
Clear rotary dial for fast function selection
Complete protection across all measurement ranges
CAT III 1000V and CAT IV 600V safety rating
Suitable for solar, HVAC and automotive diagnostics
24-month manufacturer warranty supplied

Technical Specifications

Product name	Di-Log DL6413 TRMS AC Clamp Meter
Manufacturer part code	DL6413
AC current True RMS range	0.1A to 600.0A and 600.1A to 1000A
AC current accuracy	2.5% ± 8 digits to 600.0A, 2.8% ± 8 digits from 600.1A to 1000A
AC voltage True RMS range	0.001V to 1000V, auto ranging
AC voltage accuracy	1.5% ± 5 digits
DC voltage range	0.1mV to 1000V, auto ranging
DC voltage accuracy	0.5% ± 5 digits to 600.0mV, 1.5% ± 5 digits from 600.1mV to 1000V
Resistance range	0.1Ω to 40.00MΩ, auto ranging
Resistance accuracy	1.0% ± 4 digits to 400.0Ω, up to 3.5% ± 5 digits at 40.00MΩ
Capacitance range	0.01nF to 100.0mF, auto ranging
Capacitance accuracy	3.0% ± 5 digits on most ranges, up to 5.0% ± 8 digits on 400.1µF to 4.000mF
Frequency range	9.999Hz to 99.99kHz
Frequency accuracy	1.2% ± 5 digits
Duty cycle range	10% to 90%
Duty cycle accuracy	1.2% ± 2 digits
Temperature range	-20.0°C to 1000°C, -4.0°F to 1832°F
Temperature accuracy	±3.0% of reading ± 5°C, ±3.0% of reading ± 9°F
Diode test	0.3mA into 3.2V DC
Jaw opening	35mm
Safety rating	EN61010 CAT III 1000V and CAT IV 600V
Power supply	3 x AAA V batteries, included
Dimensions	250 x 78 x 40mm
Weight	350g
Warranty	24-month manufacturer warranty

Comparison Table

Measurement	Range	Basic accuracy
AC current True RMS	0.1A to 1000A	2.5% ± 8 digits to 600.0A, 2.8% ± 8 digits above 600.0A
AC voltage True RMS	0.001V to 1000V	1.5% ± 5 digits
DC voltage	0.1mV to 1000V	0.5% ± 5 digits to 600.0mV, 1.5% ± 5 digits above 600.0mV
Resistance	0.1Ω to 40.00MΩ	1.0% ± 4 digits to 400.0Ω, up to 3.5% ± 5 digits at highest range
Capacitance	0.01nF to 100.0mF	3.0% ± 5 digits typical, range dependent
Frequency	9.999Hz to 99.99kHz	1.2% ± 5 digits
Duty cycle	10% to 90%	1.2% ± 2 digits
Temperature	-20.0°C to 1000°C	±3.0% of reading ± 5°C
