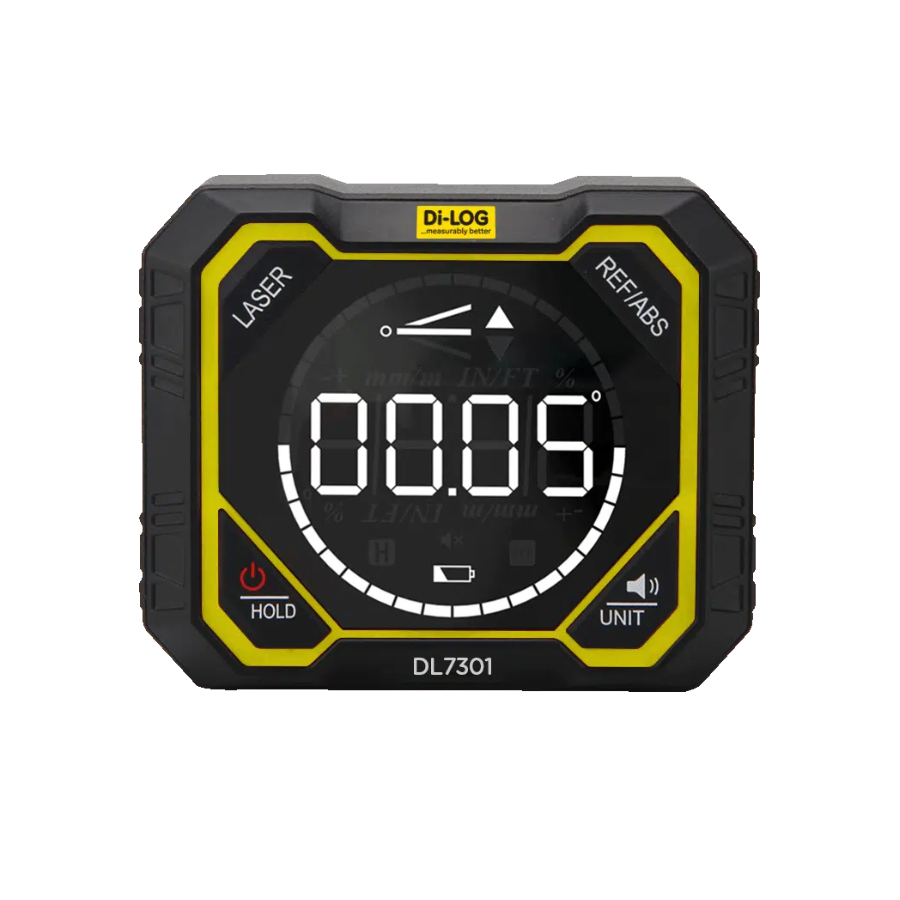

Di-Log DL7301 Tri-Laser Line Angle Meter

Di-Log DL7301 Tri-Laser Line Angle Meter

The Di-Log DL7301 Tri-Laser Line Angle Meter combines digital angle measurement with three laser reference lines for practical alignment work. It provides a full 4 x 90° measurement range and an angle accuracy of ±0.2°. Its compact design makes it suitable for professional use across installation, construction, engineering and workshop tasks.

A high-definition colour display gives clear measurement readings, while automatic screen rotation helps keep the information easy to view as the instrument changes position. Users can select relative or absolute measurement modes to suit different angle checks. Multiple unit options are available, including degrees, percentage, mm/m and in/ft.

The Di-Log DL7301 Tri-Laser Line Angle Meter uses a lightweight aluminium alloy frame and ABS construction for a balance of portability and durability. Four-sided magnetic positioning helps hold the meter securely against suitable metallic surfaces during measurement and alignment work. A rechargeable 3.7 V 1000 mAh lithium battery provides up to six hours of stated battery life, while the five-minute automatic power-off function helps manage battery use.

Key Benefits

• Three laser reference lines help with levelling, squaring and alignment tasks.
• A full 4 x 90° measuring range supports angle checks in several orientations.
• Relative and absolute modes give flexibility for different measurement tasks.
• The high-definition colour screen provides clear, easy-to-read measurement results.
• Automatic screen rotation keeps readings conveniently orientated as the meter is moved.
• Four-sided magnetic positioning provides stable placement on suitable metallic surfaces.
• Angle hold allows a displayed angle reading to be retained when required.
• Multiple measurement units allow readings in degrees, percentage, mm/m and in/ft.
• The rechargeable lithium battery supports extended portable use without a mains connection.
• Automatic power-off after five minutes helps reduce unnecessary battery use.

Common Applications

Di-Log DL7301 Tri-Laser Line Angle Meter is suitable for a range of testing, maintenance and inspection tasks, including:

• • Angle measurement and checking

• Levelling work
• Squaring and alignment tasks
• Construction installation work
• Mechanical installation tasks
• Engineering measurement work
• Electrical installation work
• Workshop and site alignment
• DIY measurement and alignment tasks

Why Choose This Model?

The Di-Log DL7301 combines digital angle measurement, three laser reference lines, a rotating colour display and four-sided magnetic positioning in one compact instrument. Its relative and absolute modes, multiple measurement units and rechargeable battery make it well suited to varied site, workshop and installation tasks.

General Specifications

Measurement and Accuracy Specifications

Mechanical and General Information

Specification Notes

• The three laser reference lines provide 0°, 90° and 270° projection.
• The magnetic base provides four-sided positioning on suitable metallic surfaces.
• The instrument includes automatic screen rotation and a five-minute automatic power-off function.

Di-Log DL7301 Tri-Laser Line Angle Meter | User Manual

What’s Included

• Di-Log DL7301 Tri-Laser Line Angle Meter
