Di-Log DLEVLite EVSE Charge Station Adaptor
The Di-Log DLEVLite EVSE Charge Station Adaptor helps electricians test Mode 3 EV charge points with a multifunction tester. It connects to the EVSE socket and simulates a vehicle connection. This supports safe checks during set-up, service work and fault finding.
Installers can use the adaptor when they commission a new charge point or carry out routine checks. It helps confirm that the charger responds as expected before it is put into use. As a result, testing can be faster, safer and more repeatable.
Practical EVSE Testing
This compact adaptor plugs directly into Type 2 EV charging sockets. It works with standard 4 mm test leads and most multifunction testers. Therefore, it fits well into existing test kits without a complex set-up.
The Di-Log DLEVLite EVSE Charge Station Adaptor allows users to check Control Pilot signal presence and status. It verifies CP states A, B and C during EV charge point testing. It also simulates CP Error “E” fault conditions to help assess charger response.
Built for Site Use
Durable construction makes the unit suitable for regular field use. Its small size helps electricians move between jobs with less kit to carry. In addition, the supplied protective case helps keep the adaptor safe during transport and storage.
The Di-Log DLEVLite EVSE Charge Station Adaptor supports single-phase EVSE testing in domestic and commercial settings. It also includes a 4 mm input for single and 3-phase chargers. This makes it a useful tool for EV installation professionals working to 18th Edition EV testing requirements.
Key Features
- Designed for Mode 3 electric vehicle charge point testing
- Connects directly to Type 2 EV charging sockets
- Simulates an electric vehicle connection during checks
- Works with multifunction testers for EVSE testing
- Uses standard 4 mm test leads for simple connection
- Checks Control Pilot signal presence and status
- Verifies Control Pilot states A, B and C
- Simulates CP Error “E” fault conditions
- Supports charger response assessment during diagnostics
- Suitable for commissioning new EV charge points
- Useful for routine service and maintenance work
- Supports domestic and commercial single-phase EVSE testing
- Compact design helps with frequent on-site use
- Supplied in a protective case for storage and transport
Technical Specifications
| Product name | Di-Log DLEVLite EVSE Charge Station Adaptor |
| Adaptor type | EVSE charge station adaptor |
| EVSE test mode | Mode 3 electric vehicle charge point testing |
| Socket connection stated | Type 2 EV socket |
| EV connector stated | IEC 62196-2 Type 2 male |
| Tester compatibility | Most multifunction testers |
| Test lead connection | Standard 4 mm test leads |
| Input provision | 4 mm input for single and 3-phase chargers |
| Control Pilot checks | CP signal presence and status |
| Control Pilot states | A, B and C |
| Fault simulation | CP Error “E” fault condition |
| Charging system support | Single-phase EVSE testing |
| Use setting | Domestic and commercial EV charge points |
| Main applications | Commissioning, diagnostics and routine maintenance |
| Regulation support | 18th Edition EV testing requirements |
| Safety standards stated | EN 61326-2-2, EN IEC 61326-1:2021, BS EN 61010-1, BS EN 61010-2-30 and IEC 62196 |
| Storage | Protective case supplied |
Comparison Table
| Data point | Type 2 information provided | Type 1 information provided |
| Socket connection | Connects to Type 2 EV sockets | Connects to Type 1 EV sockets |
| EVSE test mode | Mode 3 charge point testing | Mode 3 charge point testing |
| Tester use | Designed for use with an MFT | Designed for use with an MFT |
| Control Pilot testing | Verifies CP signal and states A, B and C | Verifies CP signal |
| Fault simulation | CP Error “E” simulation | CP Error “E” simulation |
Document Downloads
What’s Included

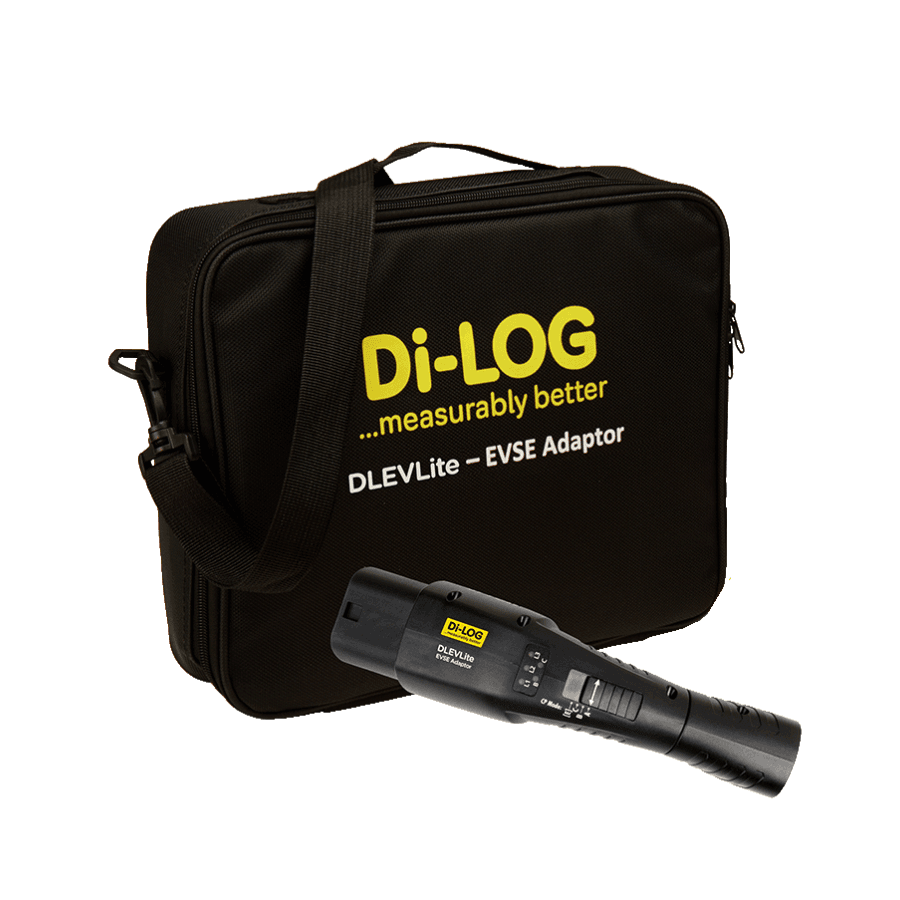

- Di-Log DLEVLite EVSE Charge Station Adaptor
- Protective case
