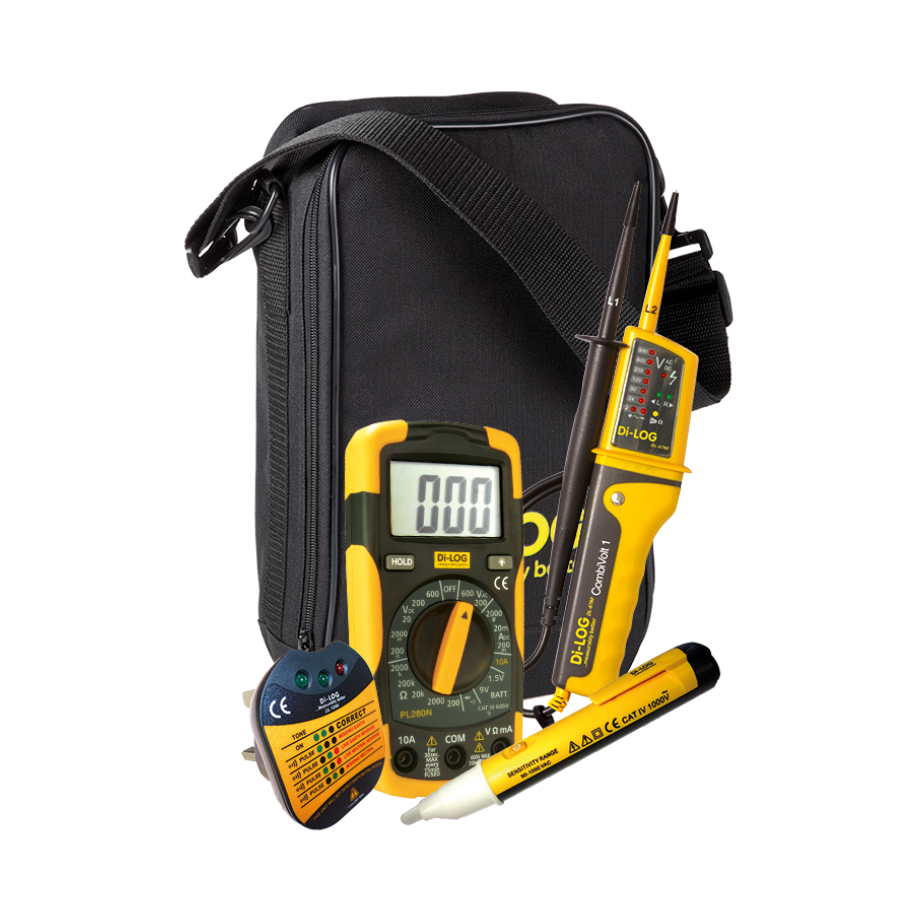

Di-Log EKB001 Electrician’s Test Kit Bundle
The Di-Log EKB001 Electrician’s Test Kit Bundle brings together key tools for daily electrical work. It supports testing, inspection, and fault finding with ease. Each device is built for clear readings and safe use in busy environments.
Work becomes faster and more organised with this kit. It combines voltage testing, continuity checks, and socket inspection in one set. As a result, users can move between tasks without changing tools often.
Reliable testing performance
The Di-Log EKB001 Electrician’s Test Kit Bundle includes a CombiVolt tester with wide voltage coverage. It handles both AC and DC testing while switching modes automatically. In addition, audible and visual alerts improve safety during checks.
A compact multimeter supports accurate measurement of voltage, current, and resistance. It features a clear LCD display and strong housing for site use. This makes it suitable for both quick checks and detailed diagnostics.
Practical tools for site work
A non contact voltage indicator allows safe detection of live circuits. It uses clear LED signals and sound alerts for quick results. Therefore, users can identify faults without direct contact.
The Di-Log EKB001 Electrician’s Test Kit Bundle also includes a socket tester with buzzer indication. It helps confirm correct wiring quickly and clearly. A durable carry case keeps all items protected and easy to transport.
Key Features
- Measures AC and DC voltage across multiple tools
- Automatic switching between voltage and continuity modes
- Audible and visual indicators for safer testing
- Compact multimeter with double moulded casing
- Non contact voltage detection for safer operation
- Socket tester provides clear wiring status feedback
- Wide voltage detection range for varied applications
- Durable nylon carry case for protection and storage
- Phase rotation and single pole detection support
- Clear LCD display for easy reading in all conditions
- Designed to meet relevant electrical safety standards
- Supplied with batteries for immediate use
Technical Specifications
| Manufacturer | Di-Log |
| Manufacturer part code | EKB001 |
| Voltage tester range | 6 to 690 V AC DC |
| Continuity range | 0 to 400 kOhm |
| Frequency range | 0 to 400 Hz |
| Response time | LED less than 0.1 seconds LCD less than 2 seconds |
| Over voltage protection | 690 V AC DC |
| Power supply tester | 2 x AAA batteries |
| Multimeter voltage range | Up to 600 V AC DC |
| Multimeter current | Up to 10 A DC |
| Resistance range | 0.1 to 2000 kOhm |
| Voltage indicator range | 90 to 1000 V AC |
| Operating temperature | -10 to 50 degrees Celsius |
| Safety rating | CAT III 600 V |
| Ingress protection | IP30 socket tester |
| Dimensions tester | 255 x 70 x 28 mm |
| Weight tester | 210 g |
| Warranty | 24 months |
Comparison Table
| Feature | CombiVolt DL6790 | DL9204 Multimeter | PL107N Indicator | DL1090 Socket Tester |
| Voltage range | 6 to 690 V | Up to 600 V | 90 to 1000 V | Socket wiring only |
| Continuity test | Yes | Yes | No | No |
| Display type | LED and LCD | LCD | LED | LED |
| Audible alert | Yes | Yes | Yes | Yes |
| Special function | Phase rotation | Current measurement | Non contact detection | Wiring status check |
Document Downloads
What’s Included
- CombiVolt DL6790 voltage and continuity tester
- DL9204 digital multimeter
- PL107N non contact voltage indicator
- DL1090 socket tester
- CCDL001 carry case
