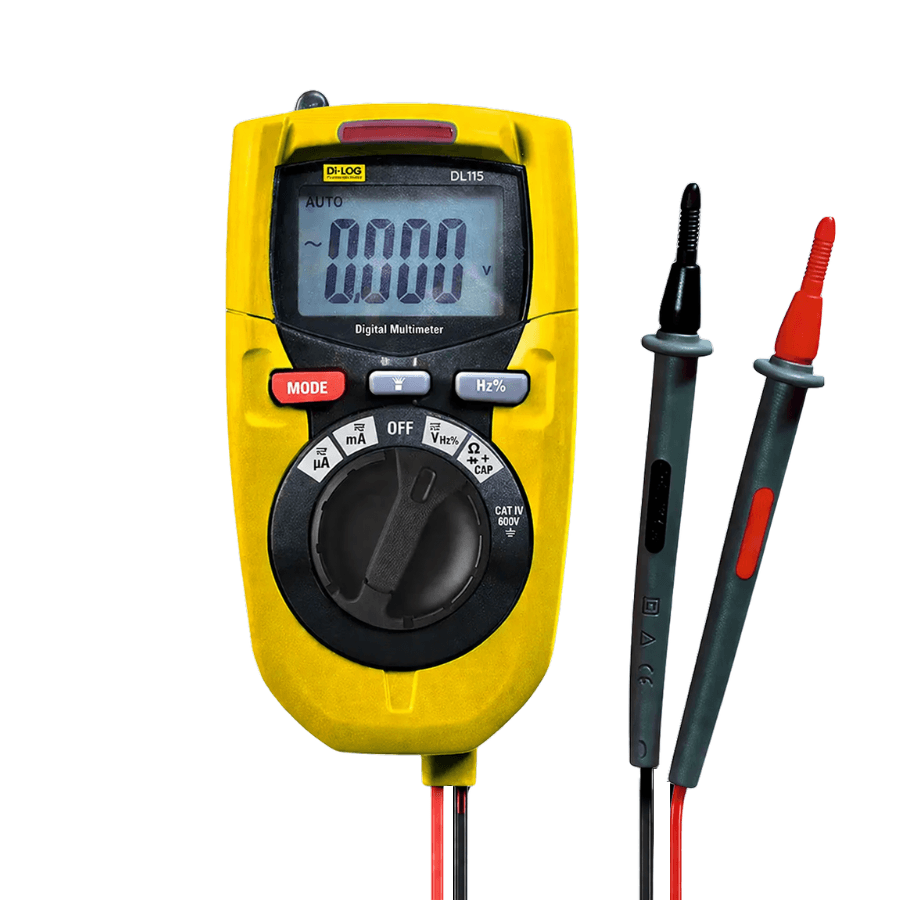

Di-Log DL115 3-in-1 600V Pocket Digital Multimeter

The Di-Log DL115 3-in-1 600V Pocket Digital Multimeter gives you reliable testing in a small form. It combines key electrical functions into one simple device. As a result, you can work faster and carry less equipment on site.

Designed for daily use, it fits easily in your pocket or tool pouch. In addition, the slim body and low weight make it comfortable to carry all day. The fixed probe design also helps reduce setup time and keeps testing straightforward.

Practical Performance

This Di-Log DL115 3-in-1 600V Pocket Digital Multimeter measures AC and DC voltage with precision. It also handles current, resistance, capacitance, and frequency testing. Therefore, it suits both simple checks and more detailed fault finding tasks.

Moreover, the auto-ranging function selects the correct range for you. This saves time and reduces user error. The clear 4000 count display with backlight ensures readings stay visible even in low light areas.

Safety and Ease of Use

Safety is improved with built-in non-contact voltage detection. This allows you to check live wires without direct contact. As a result, the Di-Log DL115 3-in-1 600V Pocket Digital Multimeter adds an extra layer of protection during testing.

Audible alerts support continuity checks and diode testing. In addition, the simple layout makes it easy for both new and experienced users. Overall, this tool offers a dependable and efficient solution for electrical work.

Key Features

Measures AC and DC voltage up to 600V
Supports current testing for low power circuits
Includes resistance measurement for diagnostics
Tests capacitance up to 100 microfarads
Frequency measurement up to 10 kHz
Non-contact voltage detection for safer checks
Auto-ranging for quick and simple operation
4000 count backlit LCD display for clarity
Audible continuity alerts for fast testing
Integrated diode testing function included
Compact design fits in pocket or tool pouch
Lightweight build supports all day use

Technical Specifications

Product name	Di-Log DL115 3-in-1 600V Pocket Digital Multimeter
AC voltage range	1.0 mV to 600 V
DC voltage range	1.0 mV to 600 V
AC current range	1.0 µA to 200 mA
DC current range	1.0 µA to 200 mA
Voltage accuracy	±2.3% + 10 digits
Current accuracy	±2.3% + 10 digits
Resistance range	0.1 Ω to 20 MΩ
Resistance accuracy	±1.2% + 5 digits
Capacitance range	Up to 100 µF
Frequency range	Up to 10 kHz
Continuity	Audible above 150 Ω
Diode test	Test current 0.1 mA
Display type	4000 count LCD with backlight
Non-contact voltage	100 V to 600 V AC detection
Power supply	2 x 1.5 V AAA batteries
Dimensions	104 x 55 x 32.5 mm
Weight	145 g

Comparison Table

Measurement	Range	Accuracy
AC voltage	1.0 mV to 600 V	±2.3% + 10 digits
DC voltage	1.0 mV to 600 V	±2.3% + 10 digits
AC current	1.0 µA to 200 mA	±2.3% + 10 digits
DC current	1.0 µA to 200 mA	±2.3% + 10 digits
Resistance	0.1 Ω to 20 MΩ	±1.2% + 5 digits
Continuity	Audible above 150 Ω	—
Diode test	0.1 mA test current	—

Document Downloads

Di-Log DL115 3-in-1 600V Pocket Digital Multimeter - Datasheet (Size: 530 KB)

Di-Log DL115 3-in-1 600V Pocket Digital Multimeter - User Manual (Size: 2 MB)
