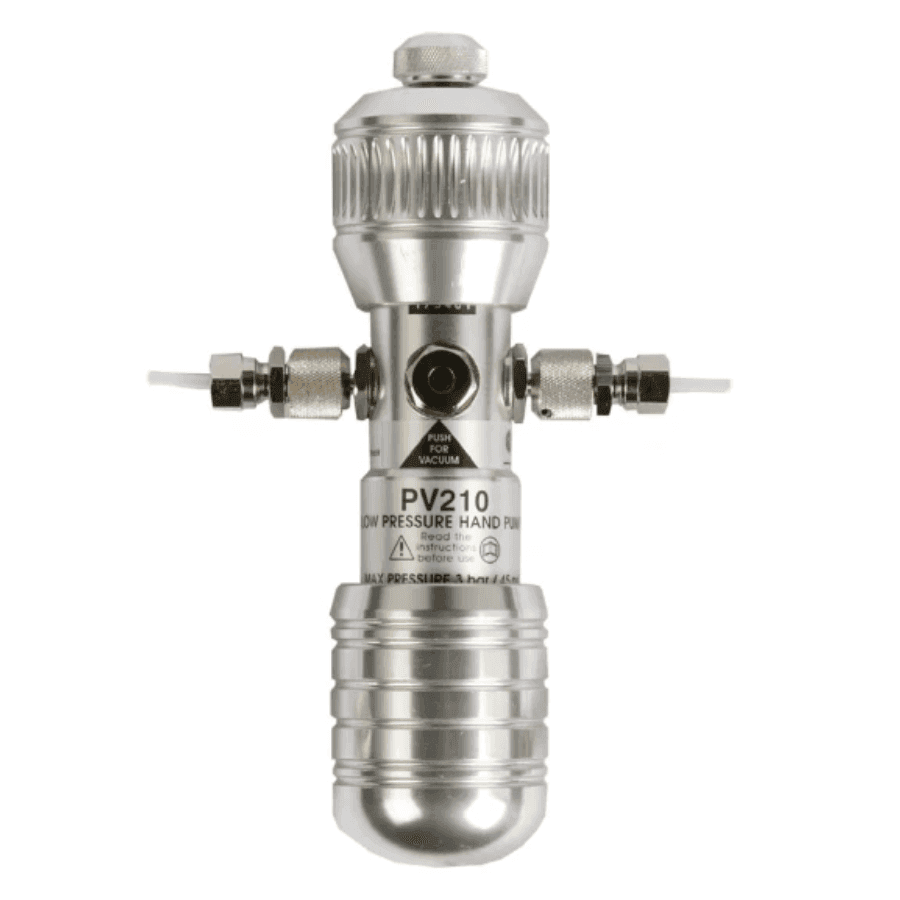

Druck PV210 Pressure Pump
The Druck PV210 is a compact, robust, and durable hand pump specifically designed for low pressure and vacuum calibrations, embodying exceptional fine control. Its lightweight design does not compromise on strength, ensuring it can withstand the rigours of daily use in various environments. With its thermal insulation, the PV210 effectively eliminates the influence of hand temperature on performance, making it an ideal tool for precise calibrations.
This versatile pump offers a dual functionality, enabling the generation of both pneumatic pressure and vacuum with remarkable ease. The integration of finger-tight quick-fit connectors simplifies the setup process, allowing for swift transitions between tasks without the need for tools. The PV210 is especially adept at generating extremely low pressures, a feature facilitated by its fine adjust vernier, which works independently for ultra-precise control.
A key safety feature of the PV210 is its built-in pressure relief valve, which allows for the setting of maximum output pressure to protect connected test instruments. This, along with a fine control needle valve for pressure release, ensures both the safety of the user and the longevity of the pump and connected devices.
Precision and Safety
The pump’s capability to reach up to 1250 in H2O/45 psi in pressure and -27 in Hg in vacuum, alongside precise control down to 0.01 in H2O, highlights its suitability for a wide range of calibration tasks. The adjustable relief valve, ranging from 20 in H2O to the maximum pressure, offers additional versatility and safety during use.
Key Features
- Dual functionality for pneumatic pressure and vacuum generation
- Lightweight, rugged, and durable design
- Finger-tight quick-fit connectors for easy setup
- Fine adjust vernier for ultra-precise control
- Built-in pressure relief valve to set maximum output pressure
- Fine control needle valve for accurate pressure release
- Capable of generating up to 1250 in H2O/45 psi
- Vacuum generation up to -27 in Hg
- Precise control up to 0.01 in H2O
- Thermally insulated to prevent temperature effects
- Adjustable relief valve for enhanced safety
