Drummond MTL15 CAT IV Voltage Indicator
The Drummond MTL15 CAT IV Voltage Indicator is a cutting-edge voltage detection tool designed for professional use. It displays nominal voltages at 50V, 230V, 400V, and 690V AC/DC RMS and detects voltages up to 1000V DC/AC through a highly visible LED bar graph that can be easily read from any angle.
This versatile lamp is suitable for a range of applications, especially those on the supply side, as it boasts a Cat IV 1000V rating according to BS EN 61010 and meets HSE (GS38) guidelines. To ensure user safety, it guards against potential hazards from live conductors with a finger shield and insulated probe tip. Additionally, its dual-layered insulation with a contrasting white inner layer effectively highlights any damage.
One of the standout features of the Drummond MTL15 is its unique power source. It eliminates the need for batteries as it operates solely from the conductor being tested. This not only enhances convenience but also reduces environmental impact.
Furthermore, the Drummond MTL15 includes six interchangeable test probes, including both interchangeable and right-angled options, providing users with maximum flexibility. This makes it an ideal tool for various high-power applications, such as ensuring safety in wind turbine installations, energy-intensive process industries, high-power variable speed drives, and UPS systems.
In summary, the Drummond MTL15 CAT IV Voltage Indicator stands out as a state-of-the-art voltage detection instrument, offering superior functionality, optimal safety measures, and exceptional convenience for professionals working in a wide range of industries.
Key Features
- Professional voltage detection instrument
- Detects voltages up to 1000V DC/AC
- Nominal voltage indications at 50V, 230V, 400V, and 690V AC/DC RMS

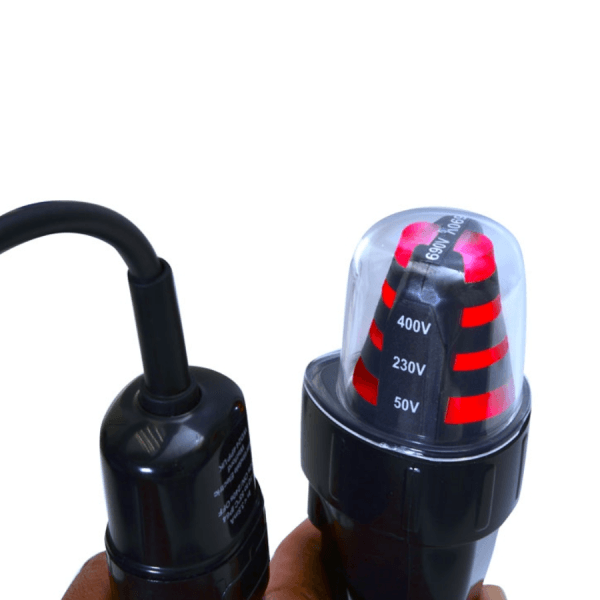

- Clear LED bar graph for easy readability from any angle
- Cat IV 1000V rating according to BS EN 61010
- Meets HSE (GS38) guidelines for safety
- Finger shield and insulated probe tip for user protection
- Dual-layered insulation with white inner layer to highlight damage
- It requires no batteries as it operates solely from the conductor being tested

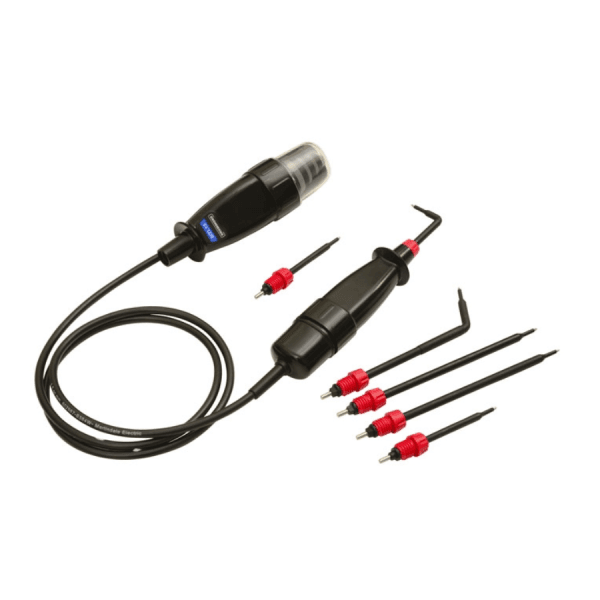

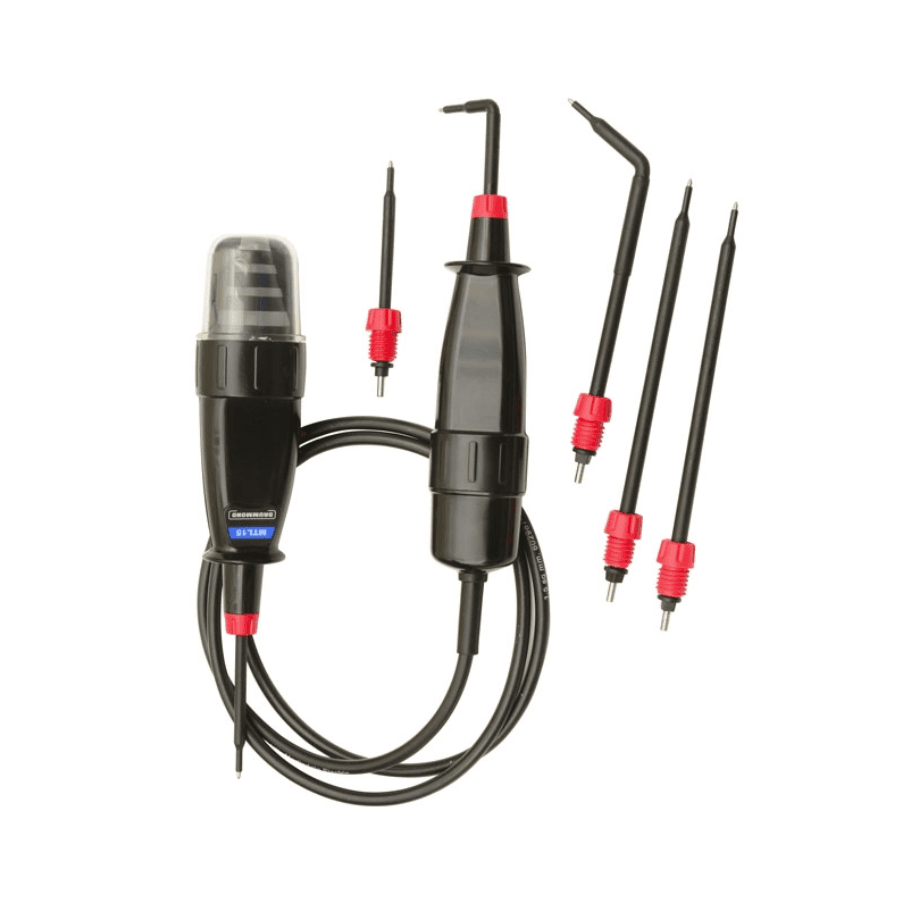

- Comes with six interchangeable test probes, including interchangeable and right-angled options
- Ideal for use in high-power applications such as wind turbine installations, process industries, variable speed drives, and UPS systems
What’s Included
- Drummond MTL15 CAT IV Voltage Indicator
- x2 Straight Prods
- x2 Long Straight Prods
- x1 Long Angled Prod
- x1 L-Shaped Prod
- Instructions for Drummond MTL15
