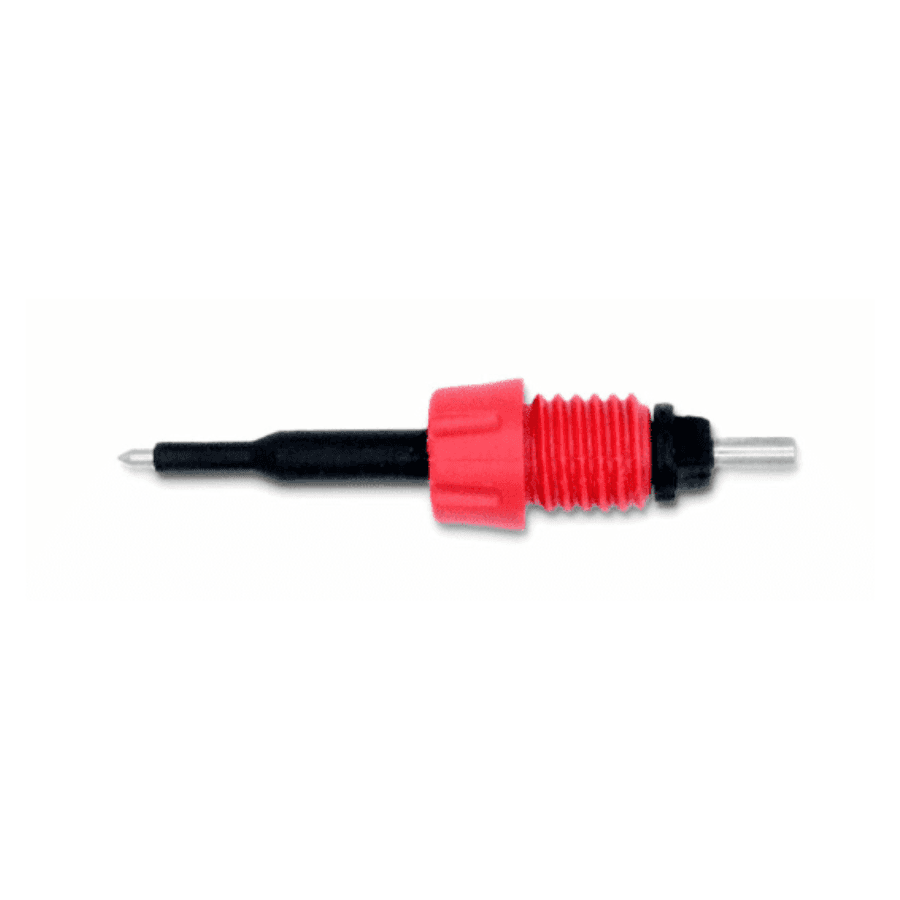

Drummond MTL2103 Test Lamp Probe
The Drummond MTL2103 Test Lamp Probe is a short test probe designed for use with compatible Drummond test lamps. Its 30 mm probe length provides greater stability when touching insulation materials and helps reduce bending during use. The shorter format can also lower the risk of the probe slipping away from a contact compared with longer probes.
A square peg and screw fitting secures the probe to the tester, helping provide a firm connection during use. The sharp probe tip makes it easier to penetrate insulation material when required. A reduced insulation diameter around the tip also helps the probe reach contacts where access is restricted.
The Drummond MTL2103 Test Lamp Probe is designed to fit MTL10, MTL15, MTL20 and MTL20/B Drummond Test Lamps. Its exposed probe tip measures 2–4 mm and meets GS38 requirements. With a stated overall length of 213 mm, the probe combines a short working tip with secure tester fitment for practical test lamp use.
Key Benefits
- Short 30 mm probe length gives greater stability when touching insulation materials.
- Reduced probe length helps minimise bending compared with longer probes.
- Shorter construction can reduce the risk of slipping away from a contact.
- Square peg and screw fitment provides a secure connection to the tester.
- Sharp tip helps the probe penetrate insulation materials more easily.
- Reduced insulation diameter at the tip improves access in restricted conditions.
- Exposed tip length of 2–4 mm meets GS38 requirements.
- Fits MTL10, MTL15, MTL20 and MTL20/B Drummond Test Lamps.
Common Applications
Drummond MTL2103 Test Lamp Probe is suitable for a range of testing, maintenance and inspection tasks, including:
- Use with compatible Drummond test lamps.
- Use with MTL10 Drummond Test Lamps.
- Use with MTL15 Drummond Test Lamps.
- Use with MTL20 Drummond Test Lamps.
- Use with MTL20/B Drummond Test Lamps.
- Probing through insulation materials with the sharp tip.
- Making contact where a shorter probe helps improve stability.
- Reaching contacts where the reduced tip insulation diameter assists access.
Why Choose This Model?
The Drummond MTL2103 Test Lamp Probe combines a short 30 mm probe length, secure square peg and screw fitment, a sharp insulation-penetrating tip and a GS38-compliant 2–4 mm exposed tip. It is designed for use across the MTL10, MTL15, MTL20 and MTL20/B Drummond Test Lamp range.
