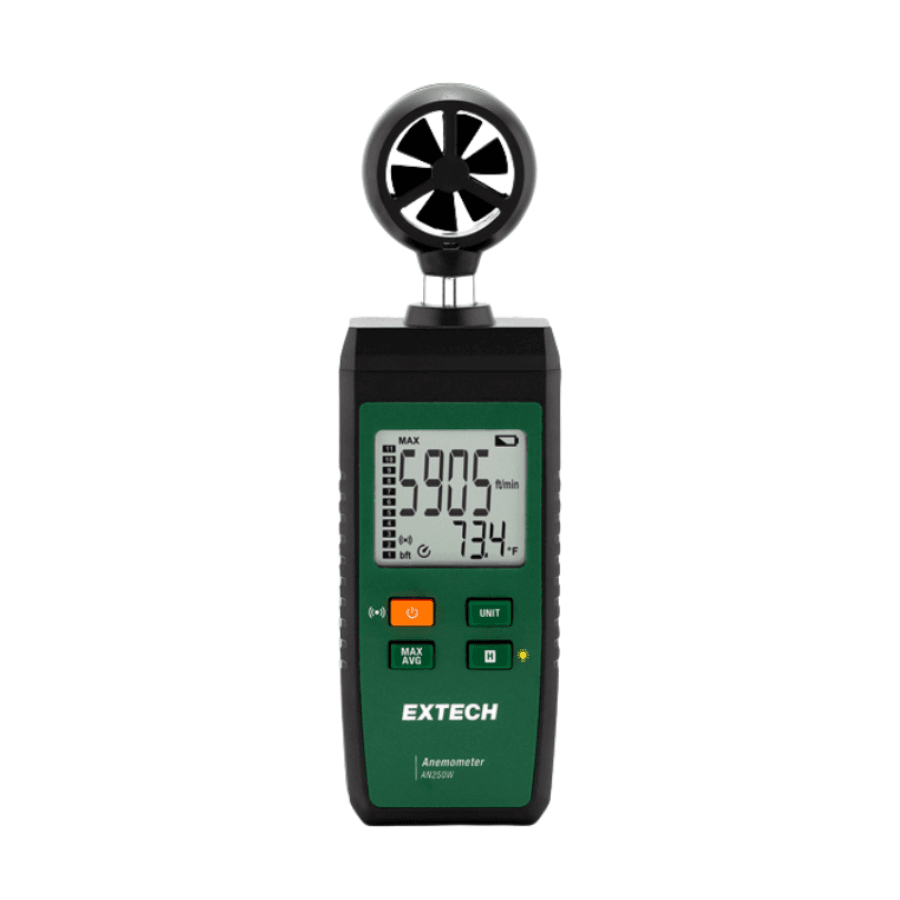

Extech AN250W Anemometer

The Extech AN250W Anemometer gives fast and reliable airflow readings for HVAC engineers, maintenance teams and building inspectors. It measures air velocity and ambient temperature in one compact meter. Bluetooth support also allows live data viewing and report creation through the ExView mobile app.

Designed for daily field work, the meter captures readings every 0.5 seconds and displays results on a large backlit LCD screen. Users can record maximum and average values or freeze measurements using the data hold function. A standard tripod mount also allows stable hands-free monitoring during longer tests.

Wireless Monitoring and Reporting

Using Bluetooth connectivity, the Extech AN250W Anemometer sends readings directly to the free ExView application for iOS and Android devices. The app can display trends, trigger high and low alarms and connect to up to eight compatible Extech Connected Series meters at the same time. Users can also export data as CSV files or create PDF reports with photos of the test location.

Wireless communication reaches up to 90 metres in line-of-sight conditions, making the instrument suitable for larger plant rooms and commercial spaces. The meter therefore supports quick inspections and clear documentation without the need for manual note taking. Its compact body and low weight also make it easy to carry between testing points.

Built for HVAC Applications

The Extech AN250W Anemometer measures airflow in multiple units including m/s, ft/min, km/h, mph, knots and Beaufort force. This flexibility makes it suitable for ventilation balancing, fan checks and commissioning work. Ambient temperature measurements further increase its usefulness when assessing indoor conditions.

Two set options are available to suit different requirements, allowing users to select the package that best matches their application. With dependable measurements, wireless reporting and simple operation, the Extech AN250W Anemometer provides an efficient solution for professional airflow testing and documentation.

Key Features

Measures airflow and ambient temperature simultaneously
Bluetooth communication with the ExView mobile application
Displays live readings on compatible smartphones and tablets
Creates PDF reports with optional site photographs
Exports recorded readings in CSV file format
Supports high and low audible alarm settings
Large dual LCD display with backlight for clear viewing
Data hold function freezes readings for easy recording
Displays maximum and average measured values
Tripod mounting thread supports hands-free monitoring
Connects with up to eight compatible Extech meters
Compact and lightweight design for portable use
Suitable for HVAC commissioning and ventilation inspections
Two different set configurations are available

Technical Specifications

Manufacturer	Extech
Manufacturer part code	AN250W
Product type	Bluetooth airflow meter and thermometer
Air velocity range in m/s	1.5 to 30m/s
Air velocity range in ft/min	295.2 to 5905ft/min
Air velocity range in km/h	5.4 to 108km/h
Air velocity range in mph	3.3 to 67mph
Air velocity range in knots	2.9 to 58 knots
Beaufort scale	0 to 12
Air velocity accuracy	±5% full scale
Beaufort accuracy	±1
Air velocity resolution in m/s	0.1m/s
Air velocity resolution in ft/min	1ft/min
Air velocity resolution in km/h	0.1km/h
Air velocity resolution in mph	0.1mph
Air velocity resolution in knots	0.1 knots
Air temperature range	-10 to 50°C (14 to 122°F)
Temperature resolution	0.1°C (0.2°F)
Temperature accuracy	±2°C (±4°F)
Sampling rate	0.5 seconds
Connectivity	Bluetooth via ExView application
App compatibility	iOS 13.0 and later and Android 9.0 and later
Wireless transmission distance	10m up to 90m line of sight
Display	Large backlit dual LCD
Operating conditions	0 to 40°C and less than 80% RH
Power supply	Three AAA 1.5V batteries
Dimensions	176 x 53 x 28mm
Weight	90g
Certifications	CE, FCC and UKCA
Warranty	2 years

Document Downloads

Extech AN250W Anemometer - Datasheet (Size: 716 KB)

What’s Included
