FLIR Si2a-PD Industrial Fixed Acoustic Imaging Camera
The FLIR Si2a-PD Industrial Fixed Acoustic Imaging Camera provides continuous acoustic monitoring for medium and high voltage assets. It detects partial discharge, corona, arcing and other electrical faults before they become costly failures. This fixed solution helps maintenance teams improve safety, reduce downtime and support condition-based maintenance across critical installations.

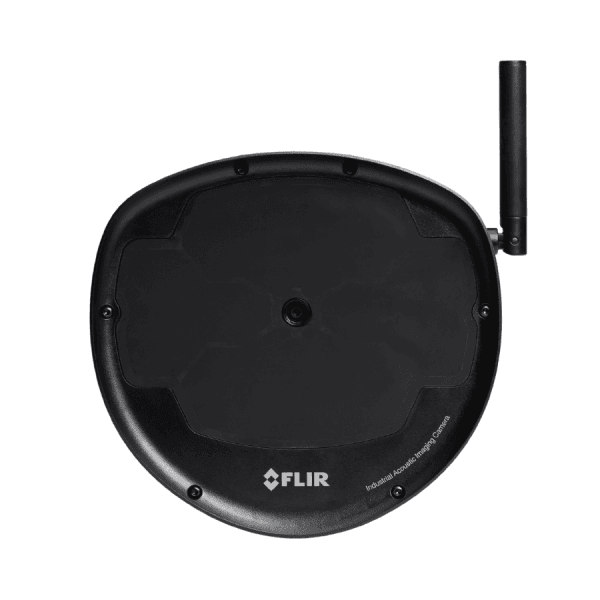

Designed for permanent installation, the FLIR Si2a-PD Industrial Fixed Acoustic Imaging Camera combines 124 low-noise MEMS microphones with advanced AI-assisted analysis for reliable fault detection. It continuously listens for acoustic events while classifying discharge types automatically. As a result, operators receive clear information with minimal manual input.
Continuous Asset Monitoring
Unlike handheld inspection tools, this camera operates around the clock and provides constant monitoring of substations, switchgear, transformers and gas insulated switchgear. It supports fixed installation using a VESA mounting interface and an IP66 enclosure for demanding industrial environments. In addition, Power over Ethernet simplifies installation by supplying both power and network connectivity through a single cable.
Data integrates easily into existing monitoring systems through REST API support together with MQTT, SMTP, FTP and RTSP protocols. Users can configure alarms, define monitoring zones and capture images through the web-based configurator. Furthermore, reports and recorded data can be reviewed using FLIR Acoustic Viewer or FLIR Assetlink for wider asset management.
Designed for Industrial Reliability
The FLIR Si2a-PD Industrial Fixed Acoustic Imaging Camera captures accurate acoustic images from distances between 0.3 m and 200 m. It also includes a 12 MP colour camera with a 75° field of view for clear visual context. This combination allows engineers to locate discharge sources quickly while reducing inspection time and improving maintenance planning.
Two different set types are available to suit different installation requirements. Each version delivers the same reliable monitoring performance while allowing users to choose the most suitable package for their application. Combined with enterprise-ready integration and flexible communications, the camera supports long-term monitoring across multiple industrial sites.
Key Features
- Provides continuous fixed acoustic monitoring for partial discharge detection.
- Automatically detects, locates and classifies electrical discharge events.
- Uses AI-assisted analysis to reduce manual interpretation.
- Supports condition monitoring across substations and switchgear.
- Helps identify insulation degradation before equipment failure.
- Suitable for monitoring transformers and gas insulated switchgear.
- Supports enterprise asset management through FLIR Assetlink.
- Offers configurable monitoring zones and alarm thresholds.
- Provides web-based configuration over wired or Wi-Fi connections where supported.
- Supports REST API integration with existing maintenance systems.
- Generates reports using FLIR Assetlink or FLIR Acoustic Viewer.
- Compatible with MQTT, RTSP, SMTP and FTP communication protocols.
- Allows remote firmware updates through the configurator.
- Available in two different set types for varying installation requirements.
Technical Specifications
| Manufacturer | FLIR |
| Manufacturer part code | T912643 |
| Product type | Industrial fixed acoustic imaging camera |
| Acoustic measurements | 124 low-noise MEMS microphones with real-time sound visualisation |
| Detection threshold | 20 kHz -19.5 dB, 35 kHz -11.2 dB, 50 kHz -9.8 dB, 80 kHz -12.8 dB, 100 kHz 22.8 dB |
| Bandwidth | 2 kHz to 130 kHz |
| Directional resolution | From 1° up to 0.125° |
| Operating distance | 0.3 m to 200 m |
| PD recognition | Surface or internal discharge, positive and negative corona, negative corona, floating discharge |
| PRPD pattern recognition | Automatic |
| Severity assessment | AI-based assessment with recommended actions |
| Digital camera | 12 MP colour |
| Camera field of view | 75° diagonal |
| Video frame rate | Streaming 15 fps, snapshots 30 fps |
| Video resolution | 960 × 540 streaming |
| Aspect ratio | 16:9 |

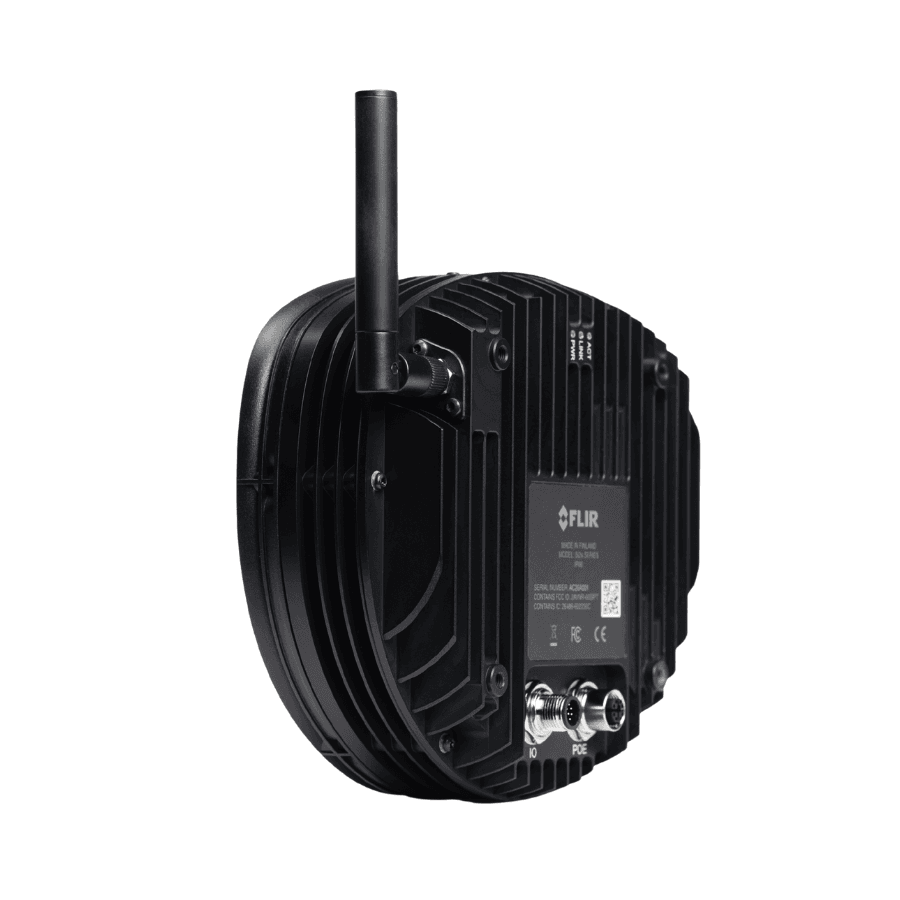

| Network interface | M12 X-code 8-pin Ethernet with PoE IEEE 802.3at |
| Wireless connectivity | Wi-Fi 2.4 GHz and 5 GHz, IEEE 802.11 b/g/n/ac |
| Supported protocols | TCP/IP, RTSP, MQTT, SMTP, FTP |
| Video bandwidth | 7.5 Mbps typical |
| Firmware updates | Via configurator tool |
| Digital I/O | 2-pin output and 2-pin input |
| Current loop output | 4–20 mA with 8 discrete levels |
| API | HTTP REST |
| Event triggering | PD severity, PD type and dB SPL threshold |
| Export format | .NLZ |
| Data messages | JSON |
| Offline software | FLIR Thermal Studio |
| Web interface | Acoustic Configurator Tool |
| Power supply | PoE+ Type 2 |
| Maximum power consumption | 25.5 W typical, 18 W maximum |
| DC input voltage | 42.5–57 VDC |
| Operating temperature | -20°C to 50°C |
| Storage temperature | -20°C to 50°C |
| Relative humidity | 0–90% non-condensing |
| Ingress protection | IP66 |
| Safety | IEC 62368-1 |
| EMC compliance | FCC CFR 47 Part 15 Subpart B Class B, FCC CFR47 Part 15 Subpart C/E, ICES-0032, EN 55032, EN 55035, EN 301 489-1/17, EN 300 328, EN 301 893 |

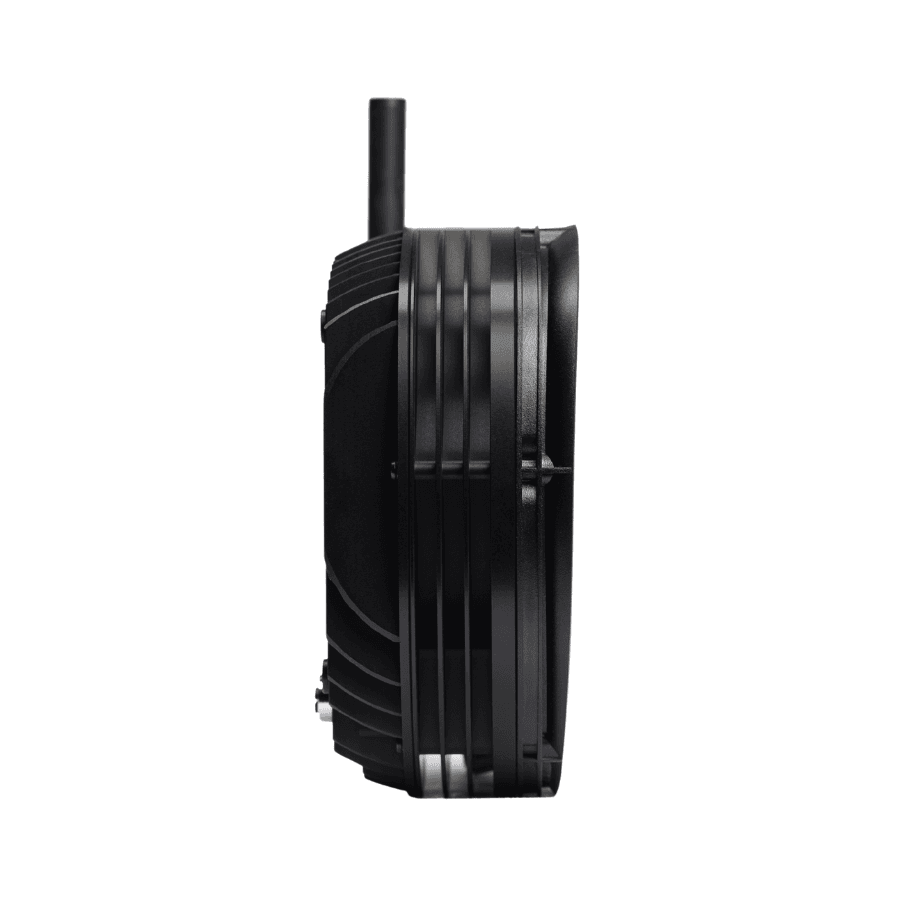

| Camera dimensions | 182 × 171 × 79 mm |
| Camera weight | Approx. 1.4 kg |
| Mounting | VESA 100 × 100 mm, 4 × M4 threaded holes |
| Calibration | Factory calibrated by FLIR |
| Warranty | Not specified |
Comparison Table
| Feature | FLIR Si2 Series | FLIR Si2a-PD |
|---|---|---|
| Fixed acoustic monitoring | ✓ | ✓ |
| Continuous 24/7 operation | ✓ | ✓ |
| Partial discharge detection | ✓ | |
| Partial discharge classification | ✓ | |
| Partial discharge severity assessment | ✓ | |
| Automatic PRPD pattern recognition | ✓ | |
| AI-assisted fault analysis | ✓ | |
| 12 MP colour camera | ✓ | ✓ |
| 124 MEMS microphone array | ✓ | ✓ |
| PoE+ power | ✓ | ✓ |
| IP66 enclosure | ✓ | ✓ |
| REST API integration | ✓ | ✓ |
| MQTT support | ✓ | ✓ |
| RTSP streaming | ✓ | ✓ |
| SMTP notifications | ✓ | ✓ |
| FTP support | ✓ | ✓ |
| FLIR Assetlink compatible | ✓ | ✓ |
| FLIR Acoustic Viewer compatible | ✓ | ✓ |
| Wi-Fi connectivity (supported models) | ✓ | ✓ |
| Configurable monitoring zones | ✓ | ✓ |
| Remote firmware updates | ✓ | ✓ |
Document Downloads
What’s Included
- FLIR Si2a-PD Industrial Fixed Acoustic Imaging Camera
- Cardboard storage box
- Camera

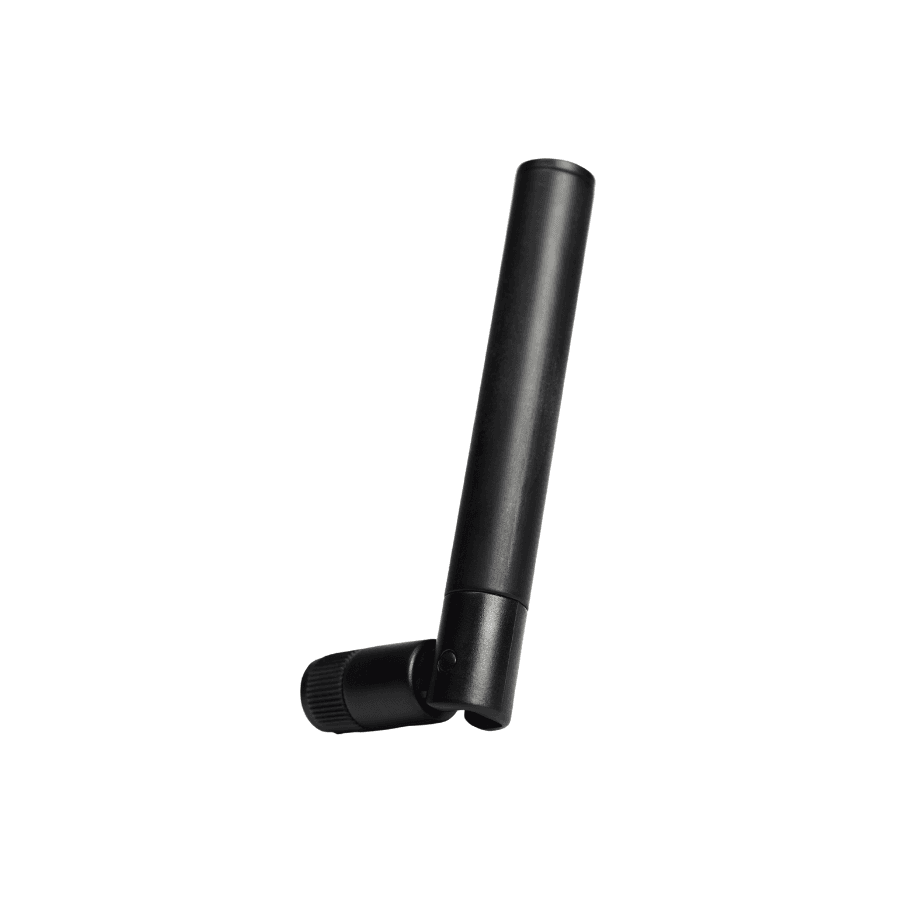

- Wi-Fi antenna (included with models that support Wi-Fi)
- Printed documentation with username and password for first-time web interface access
- Licence card for FLIR Si-Series Plug-in for FLIR Thermal Studio (perpetual licence)
For additional accessories, please contact the Test4Less team directly via our contact form.
