Fluke 1000V VDE Insulated Screwdriver Set
The Fluke 1000V VDE Insulated Screwdriver Set gives electricians a clear choice of insulated tools for live electrical work. It includes seven screwdrivers with slotted, Phillips and square tip types. Each tool helps protect the user against shock and arcing when used as specified.
Fluke makes these insulated screwdrivers from hardened German chromium-molybdenum-vanadium steel. This helps reduce wear during regular site use. As a result, the blades can grip fasteners well and apply torque without harming the screw head.
Designed For Electrical Safety
This kit is certified for 1000 V AC and 1500 V DC work. In addition, every screwdriver is individually tested to 10,000 volts. The Fluke 1000V VDE Insulated Screwdriver Set also meets NFPA 70E work-practice requirements.
Users should keep fingers behind the finger guards during use. They should also avoid wet or damp areas unless the tool is clean and dry. Excess force, prying, wedging or gripping the insulated handle with other tools may damage the insulation.
Practical Kit Layout
Key Features

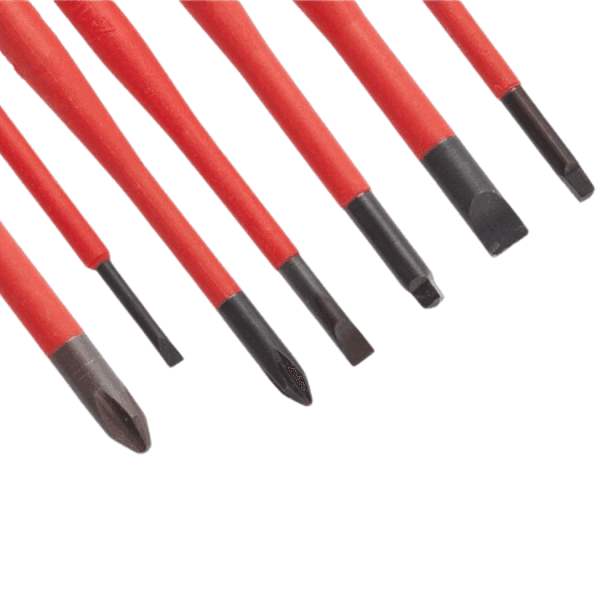

- Seven-piece insulated screwdriver kit
- Certified for 1000 V AC electrical use
- Certified for 1500 V DC electrical use
- Each screwdriver is tested to 10,000 volts
- Meets NFPA 70E work-practice requirements
- Includes three slotted screwdriver sizes
- Includes two Phillips screwdriver sizes
- Includes two square screwdriver sizes
- Made from hardened German CMV steel
- Designed to reduce blade wear
- Ergonomic handles support comfortable use
- Finger guards help support safer handling
- Designed to grip fasteners correctly
- Manufacturer part code is 5067345
Technical Specifications
| Product name | Fluke 1000V VDE Insulated Screwdriver Set |
| Model | IKSC7 |
| Manufacturer part code | 5067345 |
| UPC | 0 95969 90522 0 |
| Kit size | 7 insulated screwdrivers |
| Driver types supplied | Slotted, Phillips and square |
| Slotted screwdrivers | 3 inch 3/32 inch bladeform, 4 inch 5/32 inch bladeform and 5 inch 1/4 inch bladeform |
| Phillips screwdrivers | 3 inch #1 tip with 7/32 inch bladeform and 4 inch #2 tip with 1/4 inch bladeform |
| Square screwdrivers | 4 inch #1 tip with 5/32 inch bladeform and 5 inch #2 tip with 1/4 inch bladeform |
| Voltage rating | 1000 V AC and 1500 V DC |
| Individual test voltage | Each screwdriver is individually tested to 10,000 volts |
| Material | Hardened German chromium-molybdenum-vanadium steel |
| Compliance reference | Meets NFPA 70E work-practice requirements |
| Operating temperature guidance | Use between -20 °C and +70 °C, or -40 °C and +70 °C for tools marked “C” |
| Inspection guidance | Visually inspect before use and retest if there is doubt about safety |
| Storage guidance | Store separately from other tools and protect from excess heat and UV radiation |
| Warranty | Fluke Insulated Hand Tool Lifetime Limited Warranty for the original purchaser |
Comparison Table
| Screwdriver type | Included in IKSC7 kit | Quantity | Blade length | Bladeform diameter |
| Slotted | Yes | 3 | 3 inch, 4 inch and 5 inch | 3/32 inch, 5/32 inch and 1/4 inch |
| Phillips | Yes | 2 | 3 inch and 4 inch | 7/32 inch and 1/4 inch |
| Square | Yes | 2 | 4 inch and 5 inch | 5/32 inch and 1/4 inch |
Document Downloads
What’s Included
- ISLS3 insulated slotted screwdriver 3/32 inch, 3 inch
- ISLS5 insulated slotted screwdriver 5/32 inch, 4 inch
- ISLS8 insulated slotted screwdriver 1/4 inch, 5 inch
- IPHS1 insulated Phillips screwdriver #1, 3 inch
- IPHS2 insulated Phillips screwdriver #2, 4 inch
- ISQS1 insulated square screwdriver #1, 4 inch
- ISQS2 insulated square screwdriver #2, 5 inch
