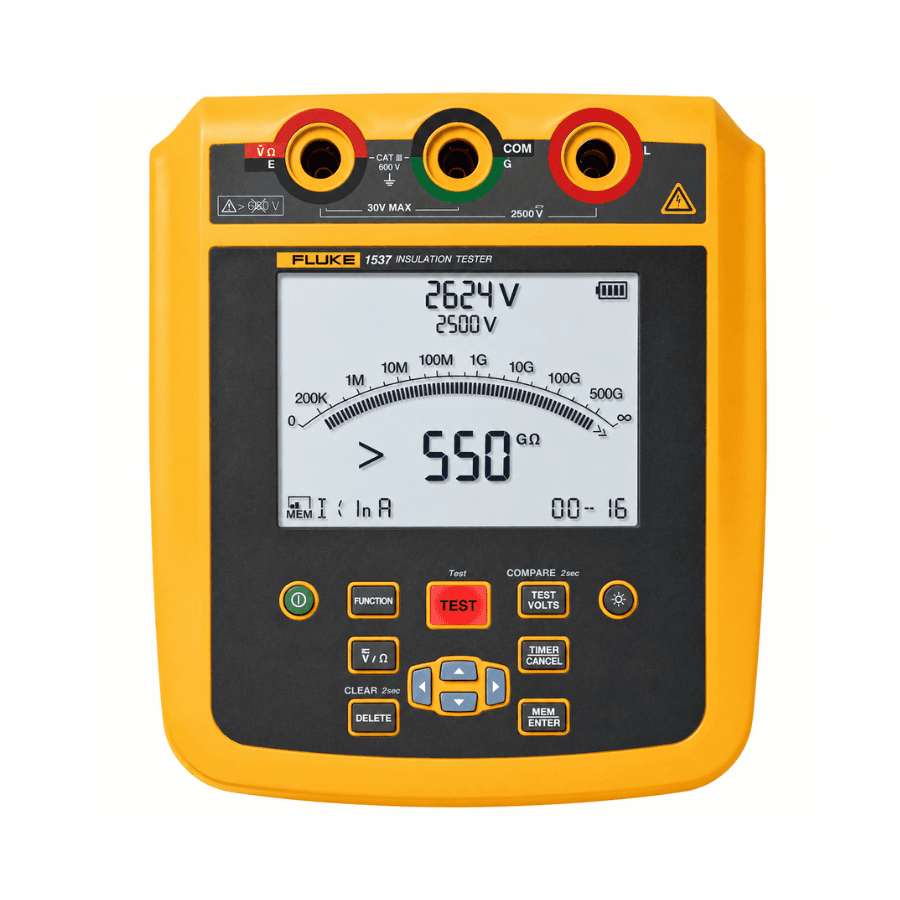

Fluke 1537 Advanced Insulation Tester

SKU: FLU/1537
MPN: 5592405
  • Ideal for industrial insulation testing
  • Tests insulation across ranges to 500 GΩ
  • Selectable test output from 250 V to 2500 V
  • USB transfer supports clear test records
Write a review
Ask a question

£1,645.00 (ex VAT)

£1,974.00 (inc VAT)

Earn 1645 points

In Stock - Express Delivery Available

Why buy from Test4Less?

  • Fast UK delivery
  • Full manufacturer warranty
  • 3 day calibration turnaround on eligible products
  • Price match promise
  • Official authorised distributor
  • Ideal for industrial insulation testing
  • Tests insulation across ranges to 500 GΩ
  • Selectable test output from 250 V to 2500 V
  • USB transfer supports clear test records
Free Shipping

Spend over £100 on any new goods order and receive automatic free shipping

Rewards

Points make purchases! For every £1 spent, earn back 1p that can be spent on any future new goods purchase

Our Price Promise

We offer a Price Match Promise! Find an equivalent tester for a cheaper price on a competitor site, and we’ll do our best to match it

Express Delivery & Calibration

Express Delivery is currently unavailable for customers wishing to add calibration to their New Goods order. For more information, visit our Delivery Information page.

£1,645.00 (ex VAT)

£1,974.00 (inc VAT)

Earn 1645 points

In Stock - Express Delivery Available

Customers also viewed

Fluke 1537 Advanced Insulation Tester

Fluke 1537 Advanced Insulation Tester provides portable, high-voltage insulation testing for field work, solar installations and routine electrical maintenance. It offers selectable test voltages of 250 V, 500 V, 1000 V and 2500 V, with insulation resistance measurements up to 500 GΩ. A short-circuit current greater than 5 mA supports faster and more stable measurements.

Built-in Polarisation Index and Dielectric Absorption Ratio calculations help users assess insulation without completing the calculations separately. The ramp test mode increases the applied voltage from 250 V to 2500 V in 100 V steps, helping users locate insulation faults. A dielectric discharge rate calculation, timed testing and adjustable test duration add further control for detailed testing.

Fluke 1537 Advanced Insulation Tester also measures AC voltage, DC voltage and resistance. Its visual and audible continuity indicator allows users to confirm continuity without constantly watching the display. Results can be stored, transferred through the supplied USB cable and managed using the downloadable PC software.



Key Benefits
  • Measures insulation resistance up to 500 GΩ for high-voltage testing tasks.
  • Provides four selectable test voltages to suit different insulation systems.
  • Uses a short-circuit current greater than 5 mA for faster, more stable readings.
  • Calculates Polarisation Index and Dielectric Absorption Ratio automatically.
  • Uses ramp testing to help identify possible insulation fault conditions.
  • Provides visual and audible continuity indication for easier testing without watching the screen.
  • Stores up to 1,300 measurements at 2500 V or 6,500 measurements at 250 V.
  • Transfers stored results through USB for review and management using PC software.
  • Includes adjustable test duration, user-defined labels and timed testing.
  • Warns when an energised circuit above 30 V is detected.



Common Applications

Fluke 1537 Advanced Insulation Tester is suitable for a range of testing, maintenance and inspection tasks, including:

  • Industrial electrical insulation testing
  • Commercial electrical maintenance
  • Solar installation testing
  • Routine electrical troubleshooting
  • High-voltage insulation resistance measurement
  • Polarisation Index and Dielectric Absorption Ratio testing
  • Ramp testing to help locate insulation faults
  • AC and DC voltage measurement
  • Resistance and continuity testing
  • Timed insulation testing and result recording



Why Choose This Model?

Compared with the Fluke 1535 2500V Insulation Tester, the Fluke 1537 adds AC/DC voltage and resistance measurements, ramp testing, timed testing, visual and audible continuity indication, USB transfer and PC software. It also provides a short-circuit current greater than 5 mA, compared with greater than 2 mA for the Fluke 1535.

Fluke 1537 Advanced Insulation Tester

Fluke 1537 Advanced Insulation Tester provides portable, high-voltage insulation testing for field work, solar installations and routine electrical maintenance. It offers selectable test voltages of 250 V, 500 V, 1000 V and 2500 V, with insulation resistance measurements up to 500 GΩ. A short-circuit current greater than 5 mA supports faster and more stable measurements.

Built-in Polarisation Index and Dielectric Absorption Ratio calculations help users assess insulation without completing the calculations separately. The ramp test mode increases the applied voltage from 250 V to 2500 V in 100 V steps, helping users locate insulation faults. A dielectric discharge rate calculation, timed testing and adjustable test duration add further control for detailed testing.

Fluke 1537 Advanced Insulation Tester also measures AC voltage, DC voltage and resistance. Its visual and audible continuity indicator allows users to confirm continuity without constantly watching the display. Results can be stored, transferred through the supplied USB cable and managed using the downloadable PC software.



Key Benefits
  • Measures insulation resistance up to 500 GΩ for high-voltage testing tasks.
  • Provides four selectable test voltages to suit different insulation systems.
  • Uses a short-circuit current greater than 5 mA for faster, more stable readings.
  • Calculates Polarisation Index and Dielectric Absorption Ratio automatically.
  • Uses ramp testing to help identify possible insulation fault conditions.
  • Provides visual and audible continuity indication for easier testing without watching the screen.
  • Stores up to 1,300 measurements at 2500 V or 6,500 measurements at 250 V.
  • Transfers stored results through USB for review and management using PC software.
  • Includes adjustable test duration, user-defined labels and timed testing.
  • Warns when an energised circuit above 30 V is detected.



Common Applications

Fluke 1537 Advanced Insulation Tester is suitable for a range of testing, maintenance and inspection tasks, including:

  • Industrial electrical insulation testing
  • Commercial electrical maintenance
  • Solar installation testing
  • Routine electrical troubleshooting
  • High-voltage insulation resistance measurement
  • Polarisation Index and Dielectric Absorption Ratio testing
  • Ramp testing to help locate insulation faults
  • AC and DC voltage measurement
  • Resistance and continuity testing
  • Timed insulation testing and result recording



Why Choose This Model?

Compared with the Fluke 1535 2500V Insulation Tester, the Fluke 1537 adds AC/DC voltage and resistance measurements, ramp testing, timed testing, visual and audible continuity indication, USB transfer and PC software. It also provides a short-circuit current greater than 5 mA, compared with greater than 2 mA for the Fluke 1535.

Product Comparison
Feature Fluke 1535 2500V Insulation Tester Fluke 1537 Advanced Insulation Tester
Selectable test voltages 250 V, 500 V, 1000 V and 2500 V 250 V, 500 V, 1000 V and 2500 V
Maximum insulation resistance 500 GΩ 500 GΩ
Short-circuit current Greater than 2 mA Greater than 5 mA
AC/DC voltage and resistance Not included among the listed functions Included
Ramp test mode Not included among the listed functions 250 V to 2500 V in 100 V steps
Continuity indication Not included among the listed functions Visual and audible
Timer Not included among the listed functions 0 to 99 minutes
Data management Not included among the listed functions USB cable and downloadable PC software



General Specifications
Specification Details
Product type Advanced insulation resistance tester
Display size 73.5 mm × 104 mm
Overvoltage category CAT IV 600 V
General safety standards IEC 61010-1, Pollution Degree 2; IEC 61557-1
Measurement safety standards IEC 61010-2-030: CAT IV 600 V; IEC 61010-2-034: 2500 V DC
Insulation resistance standards IEC 61557-1 and IEC 61557-2
Ingress protection IEC 60529 IP40
Electromagnetic compatibility IEC 61326-1 portable electromagnetic environment; IEC 61326-2-2 CISPR 11, Group 1, Class A

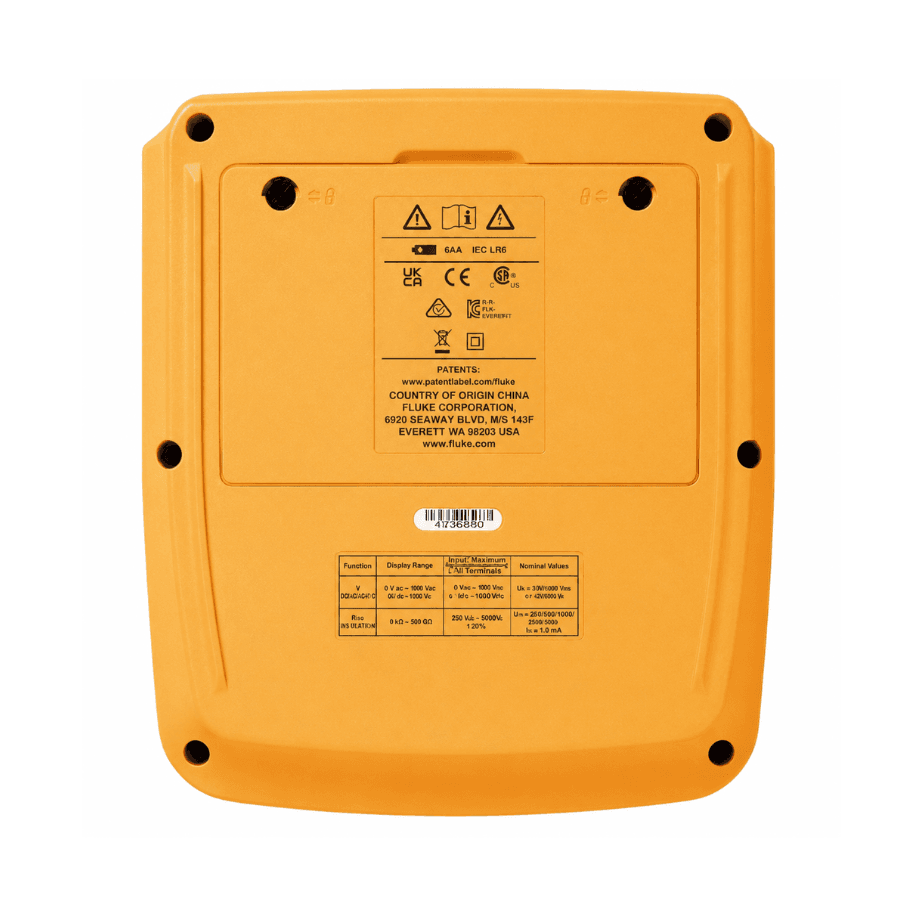

Power supply Eight AA alkaline cells, IEC LR6
Result storage Up to 1,300 measurements at 2500 V or 6,500 measurements at 250 V
Data transfer USB cable and downloadable PC software



Measurement and Accuracy Specifications
Specification Details
Insulation test voltages 250 V, 500 V, 1000 V and 2500 V
Test voltage accuracy ±(3% + 3 V)
250 V insulation range 200 kΩ to 500 kΩ: 1 kΩ resolution, 5% accuracy; 0.50 MΩ to 5.00 MΩ: 0.01 MΩ, 5%; 5.0 MΩ to 50.0 MΩ: 0.1 MΩ, 5%; 50 MΩ to 500 MΩ: 1 MΩ, 5%; 0.50 GΩ to 5.00 GΩ: 0.01 GΩ, 5%; 5.0 GΩ to 50.0 GΩ: 0.1 GΩ, 20%
500 V insulation range 200 kΩ to 500 kΩ: 1 kΩ resolution, 5% accuracy; 0.50 MΩ to 5.00 MΩ: 0.01 MΩ, 5%; 5.0 MΩ to 50.0 MΩ: 0.1 MΩ, 5%; 50 MΩ to 500 MΩ: 1 MΩ, 5%; 0.50 GΩ to 5.00 GΩ: 0.01 GΩ, 5%; 5.0 GΩ to 10.0 GΩ: 0.1 GΩ, 5%; 10.0 GΩ to 50.0 GΩ: 0.5 GΩ, 20%; 50 GΩ to 100 GΩ: 5 GΩ, 20%
1000 V insulation range 200 kΩ to 500 kΩ: 1 kΩ resolution, 5% accuracy; 0.50 MΩ to 5.00 MΩ: 0.01 MΩ, 5%; 5.0 MΩ to 50.0 MΩ: 0.1 MΩ, 5%; 50 MΩ to 500 MΩ: 1 MΩ, 5%; 0.50 GΩ to 5.00 GΩ: 0.01 GΩ, 5%; 5.0 GΩ to 20.0 GΩ: 0.1 GΩ, 5%; 20.0 GΩ to 50.0 GΩ: 0.5 GΩ, 20%; 50 GΩ to 200 GΩ: 5 GΩ, 20%
2500 V insulation range 200 kΩ to 500 kΩ: 1 kΩ resolution, 5% accuracy; 0.50 MΩ to 5.00 MΩ: 0.01 MΩ, 5%; 5.0 MΩ to 50.0 MΩ: 0.1 MΩ, 5%; 50 MΩ to 500 MΩ: 1 MΩ, 5%; 0.50 GΩ to 5.00 GΩ: 0.01 GΩ, 5%; 5.0 GΩ to 50.0 GΩ: 0.1 GΩ, 5%; 50 GΩ to 500 GΩ: 5 GΩ, 20%
Leakage current measurement 1 nA to 2 mA; accuracy ±(20% + 2 nA)
Capacitance measurement 0.01 µF to 2.00 µF; accuracy ±(15% of reading + 0.03 µF)
Short-circuit current Greater than 5 mA
AC voltage 0 V to 600.0 V; 0.1 V resolution; ±(2% + 10) accuracy; 45 Hz to 500 Hz
DC voltage 0 V to 600.0 V; 0.1 V resolution; ±(2% + 10) accuracy
Resistance measurement 0 Ω to 600.0 Ω: 0.1 Ω resolution; 600 Ω to 6000 Ω: 1 Ω; 6.00 kΩ to 60.00 kΩ: 0.01 kΩ; accuracy ±(2% + 10)
Energised circuit warning Warning range above 30 V
Timer 0 to 99 minutes; indication resolution of 1 second
Ramp test 250 V to 2500 V in 100 V increments



Mechanical and General Information
Specification Details
Dimensions 184 mm × 211 mm × 93 mm
Weight 1.3 kg
Operating temperature −10°C to +50°C
Storage temperature −20°C to +60°C
Operating humidity Non-condensing below 10°C; no more than 80% RH from 10°C to 30°C; no more than 50% RH from 30°C to 50°C
Operating altitude 2000 m
Storage altitude 12,000 m
Battery type Eight AA alkaline cells, IEC LR6
Carrying method Supplied soft carrying case
Continuity indication Visual indication on the display and audible indication



Specification Notes
  • Insulation resistance accuracy is 5% across the lower stated ranges and changes to 20% across the higher stated ranges.
  • Ranges below 200 kΩ and above the stated maximum for each selected test voltage have unspecified resolution and accuracy.
  • The CAT IV 600 V rating and listed IEC standards apply to the supplied safety and measurement specifications.

Fluke 1537 2500V Advanced Insulation Tester | Datasheet

What’s Included
  • Fluke 1537 Advanced Insulation Tester
  • Test leads with red, black and green alligator clips
  • Red and black probes
  • Soft carrying case
  • USB cable
  • Downloadable PC software
