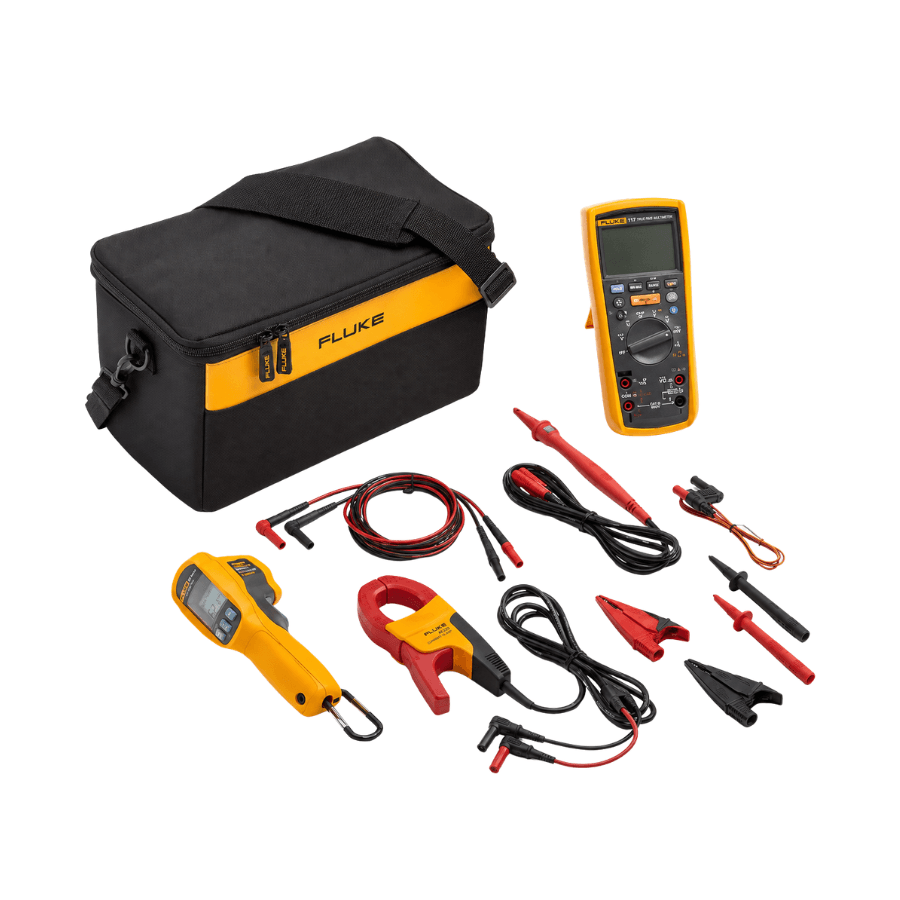

Fluke 1587 FC Advanced Electrical Troubleshooting Kit
The Fluke 1587 FC Advanced Electrical Troubleshooting Kit brings together three test instruments for electrical troubleshooting and preventive maintenance. It combines the Fluke 1587 FC Insulation Tester/Digital Multimeter with a Fluke i400 AC Current Clamp and Fluke 62 Max+ Infrared Thermometer. This combination allows engineers to check insulation, electrical measurements, AC current and temperature with one supplied kit.
At the centre of the kit, the 1587 FC combines a True RMS digital multimeter with an insulation resistance tester. Selectable insulation test voltages of 50 V, 100 V, 250 V, 500 V and 1000 V support a range of insulation checks, while the meter also measures voltage, frequency, capacitance, diode, temperature, resistance, milliamps and continuity. Fluke Connect support adds wireless measurement storage, timed PI/DAR testing with TrendIt graphs and temperature compensation through the app.
The Fluke 1587 FC Advanced Electrical Troubleshooting Kit also extends testing beyond the meter itself. Its i400 clamp measures from 1 A AC to 400 A AC without breaking the circuit, while the 62 Max+ provides non-contact temperature measurement from -30 °C to 650 °C. Together, these instruments help users find electrical faults and identify overheating components during maintenance and inspection work.
Key Benefits
- Combines insulation, multimeter, AC current and infrared temperature testing in one kit.
- Measures AC current with the i400 clamp without requiring the circuit to be broken.
- Stores 1587 FC measurement results wirelessly through the Fluke Connect Measurements app.
- Supports timed PI/DAR measurements with TrendIt graphs for insulation testing.
- Uses temperature compensation through Fluke Connect Measurements for supported 1587 FC measurements.
- Includes a VFD low-pass filter to support accurate motor drive measurements.
- Provides non-contact temperature checks for detecting overheating components from a safe distance.
- The 62 Max+ carries an IP54 rating for resistance to water and dust.
- Includes probes, leads, clips, a thermocouple and a hard carrying case for practical field use.
Common Applications
Fluke 1587 FC Advanced Electrical Troubleshooting Kit is suitable for a range of testing, maintenance and inspection tasks, including:
- Electrical troubleshooting and fault finding.
- Preventive electrical maintenance.
- Insulation resistance testing.
- PI/DAR insulation measurements.
- Voltage, frequency, capacitance and resistance checks.
- AC current measurement without breaking the circuit.
- Testing motor drives using the VFD low-pass filter.
- Non-contact temperature measurement.
- Detection of overheating electrical components.
Why Choose This Model?
This kit suits buyers who need the functions of the Fluke 1587 FC together with dedicated AC current and non-contact temperature measurement. Unlike purchasing the 1587 FC alone, the kit also supplies the i400 AC Current Clamp, 62 Max+ Infrared Thermometer and associated accessories listed below.
