Fluke 2052 Advanced Wire Tracer & Cable Locator Kit

Fluke 2052 Advanced Wire Tracer & Cable Locator Kit

The Fluke 2052 Advanced Wire Tracer and Cable Locator Kit revolutionises wire and cable tracing for technicians in industrial and utility environments. With its ability to swiftly and accurately locate both energised and de-energised wires in walls, ceilings, and floors up to CAT IV 600V, this kit ensures safety and efficiency.

Equipped with essential accessories such as test leads, probes, adaptors, and alligator clips, users can easily trace wires and circuits, detect breaks or shorts, and identify faults in electrical wiring and equipment. The inclusion of the Fluke i400 current clamp allows for boosted signal induction through insulation in loop mode.

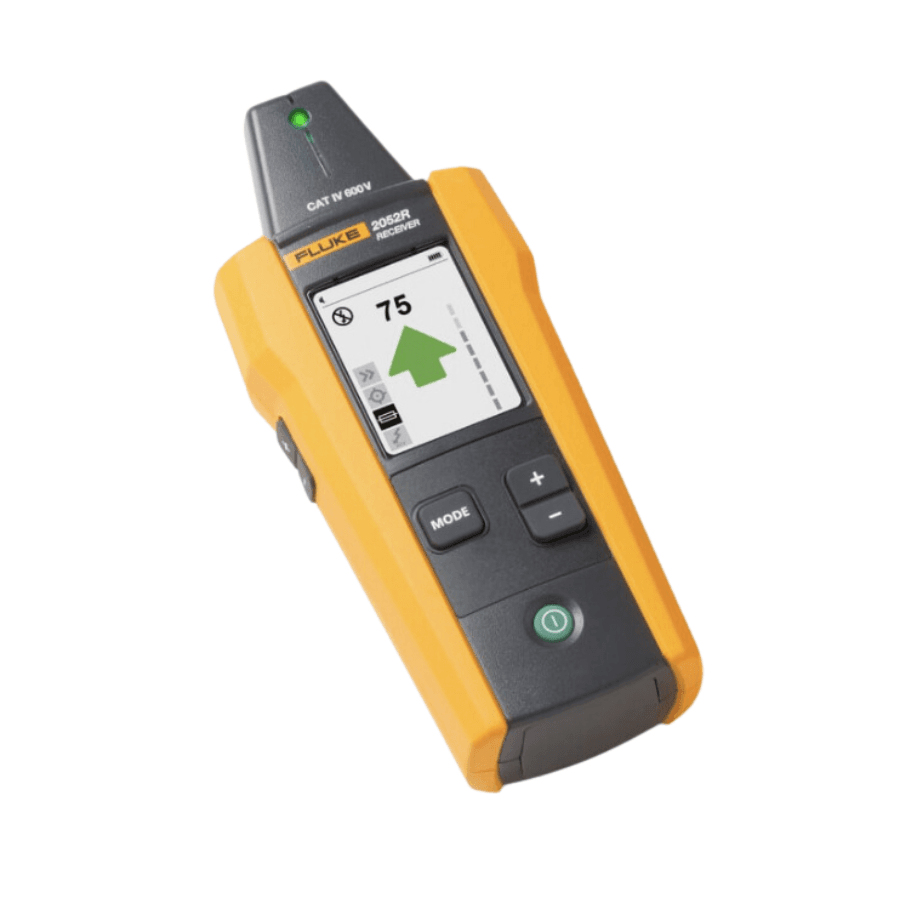

The Fluke 2052 receiver provides two tracing methods: passive tracing for non-contact voltage detection and active tracing with the transmitter for all other modes. Its user-friendly features, including a 2.5-inch colour LCD screen with backlight, IP40 rating, and drop resistance of up to 1m, ensure convenient and reliable operation even in challenging conditions.

Receiver Tracing Modes

With four receiver tracing modes – Quick Scan, Precision, Beaker, and Non-Contact Voltage Detection – the Fluke 2052 offers versatility in detecting and visualising energised wires and locating breakers and fuses. Powered by 4 x AA batteries, the receiver provides up to 16 hours of usage and features a battery indicator for easy monitoring.

The Fluke 2000-T Transmitter, compatible with energised and de-energised circuits up to CAT IV 600V, offers three modes – high, low, and loop – to deliver the appropriate signal strength for accurate tracing. Automatic sensing of system status and multiple receiver sensitivity levels further enhance tracing flexibility and precision.

Safeguarding the kit during storage and transportation is made easy with the included hard transport case. Experience advanced wire and cable tracing capabilities with the Fluke 2052 Advanced Wire Tracer and Cable Locator Kit, revolutionising the way technicians tackle electrical wiring and circuit problems.

Key Features

• Fluke 2052R Advanced Wire Tracer and Fluke 2000T Transmitter included
• CAT IV 600V safety rated for enhanced safety in electrical environments
• Ability to locate both energized and de-energized wires for comprehensive tracing
• Fluke 2052R protected against transient overvoltage spikes up to 8000V
• Capable of locating breaks, opens, and shorts in wiring and circuits
• Four operating modes on the Fluke 2052R: Quick Scan, Precision, Breaker, and Non-contact voltage
• Receiver tip allows for tracing in tight spaces, corners, and junction boxes
• Battery powered by 4 x AA batteries for convenient and portable use
• Features a 2.5-inch LCD colour TFT screen for clear and easy viewing
• Fluke 2000T Transmitter offers three signal strengths: High, Low, and Loop
• Automatic sensing of system energization and selection of 6kHz or 33kHz output frequency on the Fluke 2000-T transmitter
• Eight receiver sensitivity levels for increased flexibility and accuracy during tracing.

What’s Included

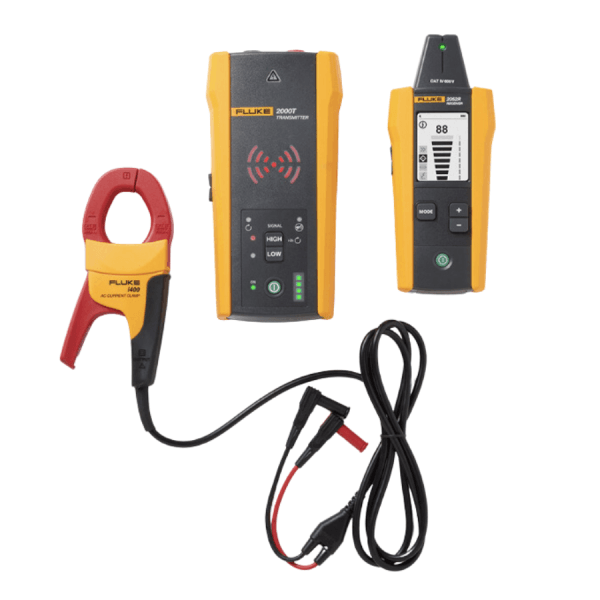

• Fluke 2052 Advanced Wire Tracer and Cable Locator Kit
• Fluke 2000T Advanced Wire Tracer Transmitter
• i400 AC Current Clamp
• Fluke 2000ACC Test Lead Accessory kit for 2052
• Premium hard carrying case
• Batteries
• Quick reference guide
