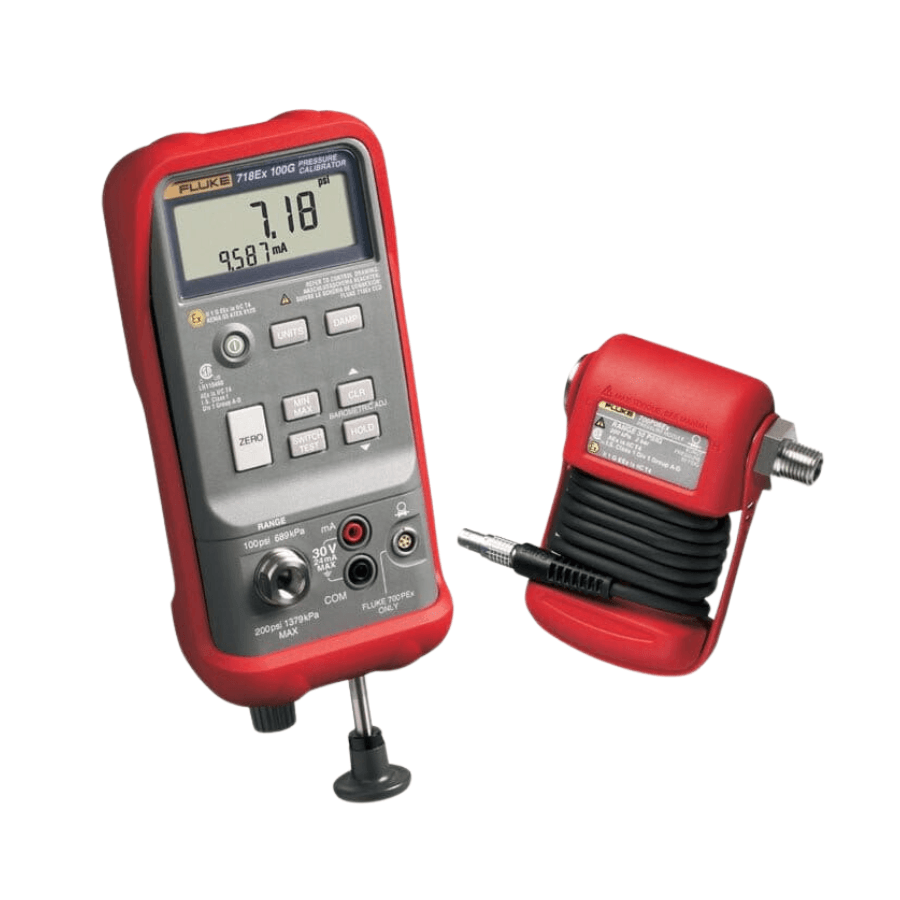

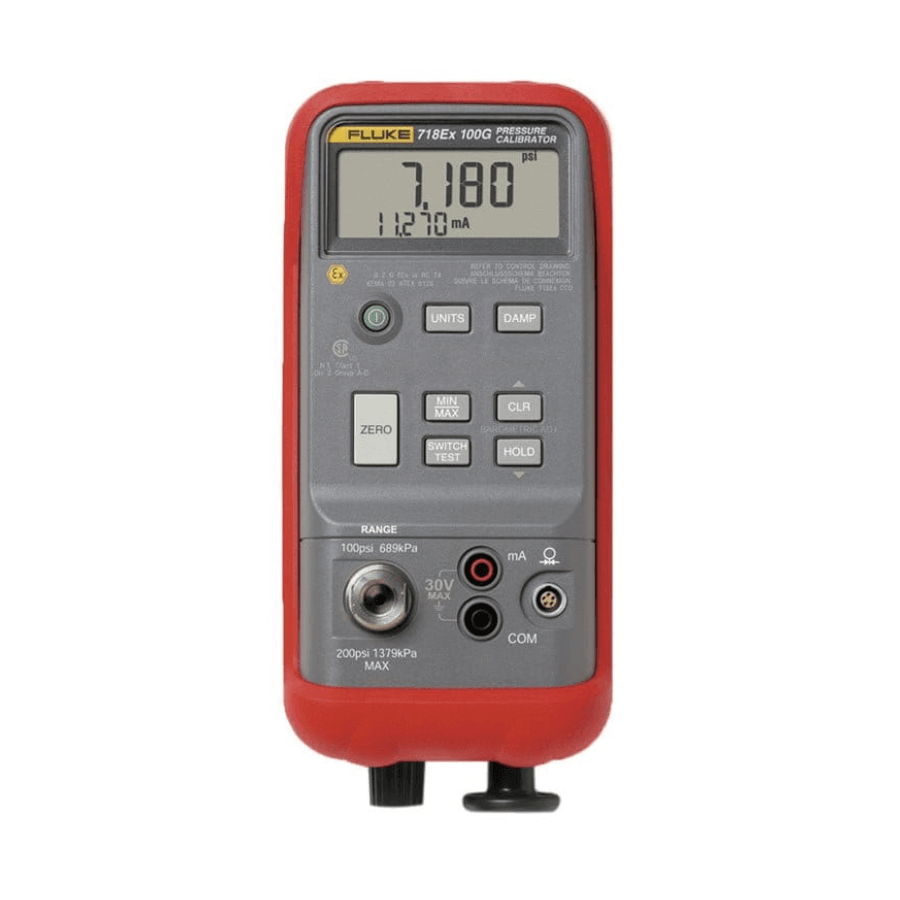

Fluke 718Ex 100G Intrinsically Safe Pressure Calibrator 100 PSI, EX – I.S
The Fluke 718Ex Intrinsically Safe Pressure Calibrator is a new, powerful intrinsically safe, self contained pressure calibrator for usage in Explosion endangered areas.
Features:
- ATEX II 1G Ex ia IIC T4 Compliant
- Built-in pressure / vacuum hand pump, with fine adjust vernier and bleed valve
- 30, 100, and 300 psi ranges (2, 7, and 20 bar)
- Pressure measurement to 0.05% of full span, using an internal pressure sensor
- Pressure measurement to 200 bar using any of eight intrinsically safe Fluke 700PEx Pressure Modules
- Wide range of selectable measurement units for pressure
- Current measurement with 0.02% accuracy and 0.001 mA resolution
- Pressure switch test function
- Min-Max Hold functions
- Compact size and weight
- Simple, push-button user interface
- Rugged and reliable, ideal for field use
What’s Included?
- Fluke 718Ex
- Protective Red Holster
- TL75 Test Leads
- AC72 Test Clips
- CD Users Manual
- Fluke 718Ex CCD content control drawing
- NIST- traceable calibration report and data
