Fluke 721 Precision Pressure Calibrator (Choice of Version)

Fluke 721 Precision Pressure Calibrator

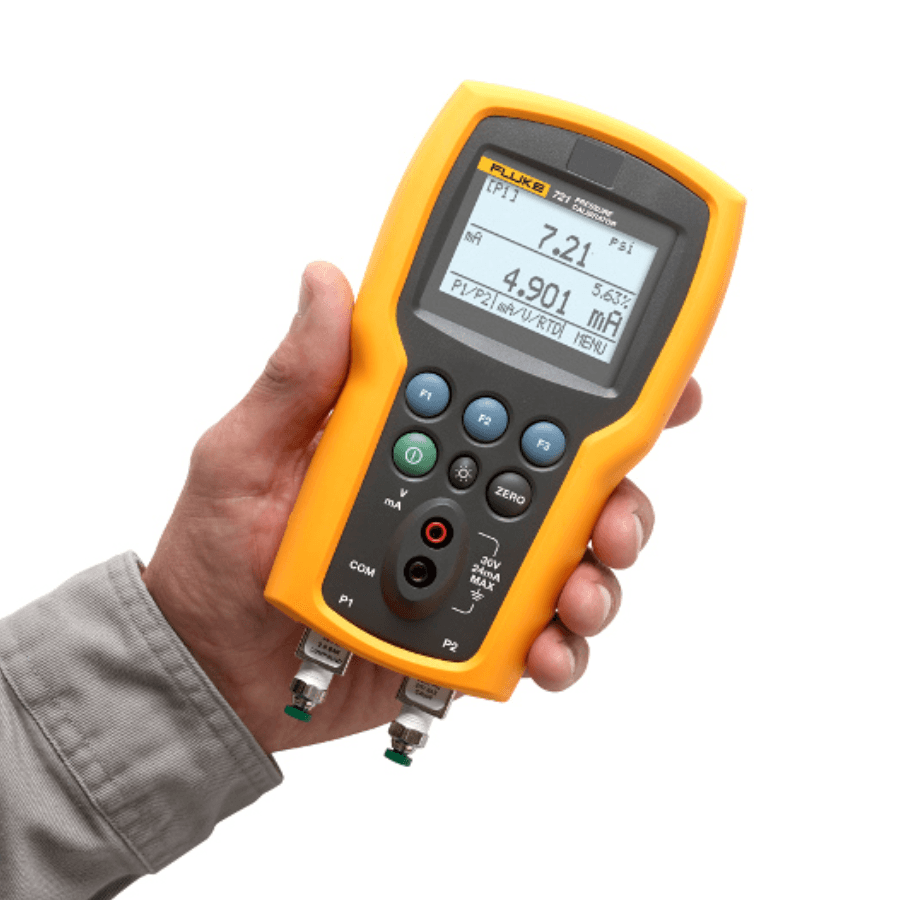

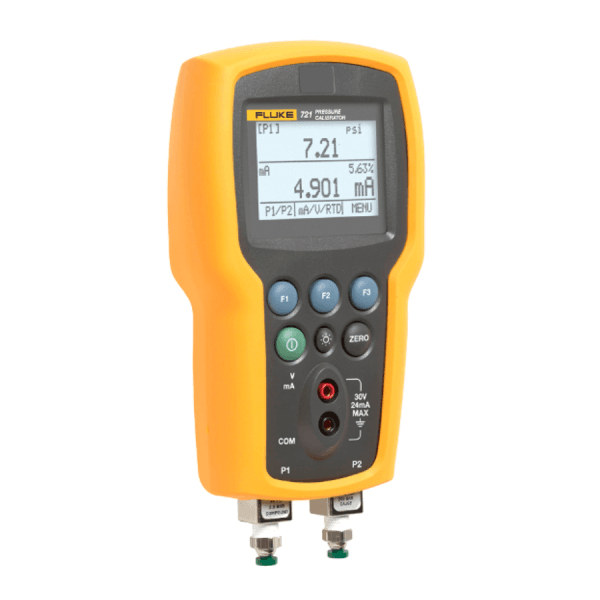

The Fluke 721 Pressure Calibrator stands as an unparalleled solution for gas custody transfer applications. Equipped with dual isolated stainless steel pressure sensors, it offers exceptional accuracy of 0.025%. This device allows simultaneous static and differential pressure measurements, streamlining processes with a single tool. The FLUKE 721 also boasts versatility in configuration, offering a choice between a 16 psi or 36 psi low pressure sensor and seven high pressure ranges up to 5000 psi. Additionally, it enables mA and temperature measurements, further enhanced by an optional 720RTD Pt100 probe. Designed for practicality, it includes a large backlit graphic display capable of showing three measurements at once and an internal 24 V loop power supply for powering transmitters under test. With its capability to extend pressure measurement ranges via connection to external 750P series pressure modules, the Fluke 721 721 is a robust tool offering a comprehensive solution for a range of calibration and testing needs.

About Fluke

Fluke Corporation is a renowned global supplier of test and measurement equipment, catering to professionals in various industries such as electronics, electrical, and industrial maintenance. With a rich history dating back to its founding in 1948, Fluke has consistently been at the forefront of innovation, producing high-quality instruments that ensure precision and reliability in measurement tasks. Their product range includes digital multimeters, thermal imagers, oscilloscopes, and environmental test equipment, among others. Widely trusted for their accuracy and durability, Fluke instruments have become a staple for technicians, engineers, and maintenance professionals. This reflects on the company’s commitment to delivering cutting-edge solutions for diverse testing needs.

Click here to view our entire Fluke product catalogue. Click here to go to the Fluke UK homepage.

Key Features

• Ideal for gas flow calibration (custody transfer) applications
• Two isolated, stainless steel, pressure sensors with 0.025% accuracy
• Temperature measurement with the optional 720RTD Pt100 probe
• Measures 4 to 20 mA signals
• Measure DC voltage to 30 Vdc, check 24V power supplies and 1-5V signals
• Internal 24 V loop power supply can power a transmitter under test
• Extend pressure measurement range with connection to external 750P series pressure modules (50 ranges)
• Large backlit graphic display can show up to three measurements simultaneously
• 3-year warranty

Summary Specifications

• Low pressure sensor (P1) 16 psi (1.1 bar) or 36 psi (2.48 bar)
• High pressure sensor (P2) 100, 300, 500, 1000, 1500, 3000 or 5000 psi (6.9, 20, 24.5, 69, 103.4, 200, 345 bar).
• mA measurement with 0.015% accuracy
• Temperature measurement from -40 to 150 C with optional 720RTD probe
• Measure V dc to 30V with 0.015% accuracy

Applications

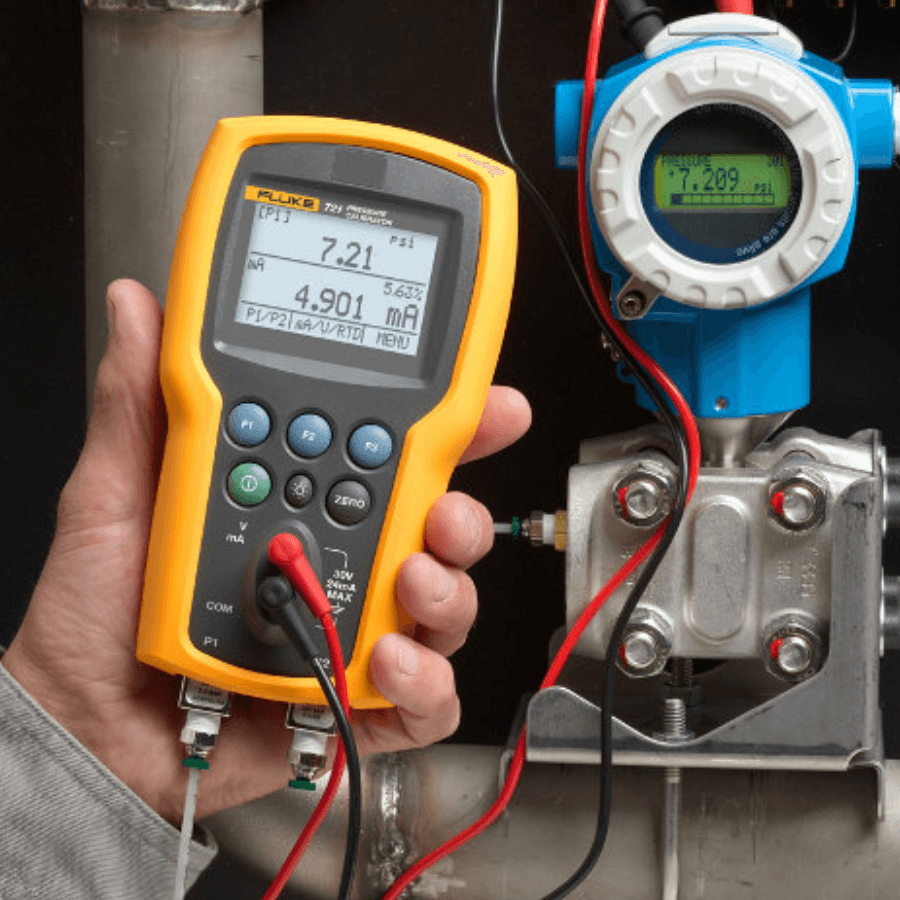

• Transmitter calibration
• Flow computer calibration
• Switch testing
• Gauge testing

What’s Included

• 721 Precision Pressure Calibrator
• Soft case
• Four (4) AA batteries
• Manual
• Traceable calibration certificate
• Test leads
