Fluke FEV500 Fast DC EV Charging Station Analyser
The Fluke FEV500 Fast DC EV Charging Station Analyser gives engineers a simple way to check fast DC chargers in the field. It brings safety, performance and communication testing into one portable unit. As a result, teams can complete key checks without bringing an electric vehicle to site.
Built for daily field work, it helps speed up setup, validation and reporting. Guided workflows keep the process clear, while PASS and FAIL results make decisions easier. In turn, users can spot issues sooner and reduce downtime on live charging assets.
Efficient Workflow
With the Fluke FEV500, users can simulate EV charging up to 2.4 kW through a single CCS connection. This supports repeatable charger checks without extra load banks, extra testers or a vehicle. Furthermore, the touchscreen and Autotest function help keep each job quick and consistent.
Data handling is also straightforward. Results can be captured, stored and used with Fluke TruTest software for reporting and records. Therefore, the unit supports clear documentation as well as better asset tracking with stored EVSE and connection point IDs.
Built for Field Use

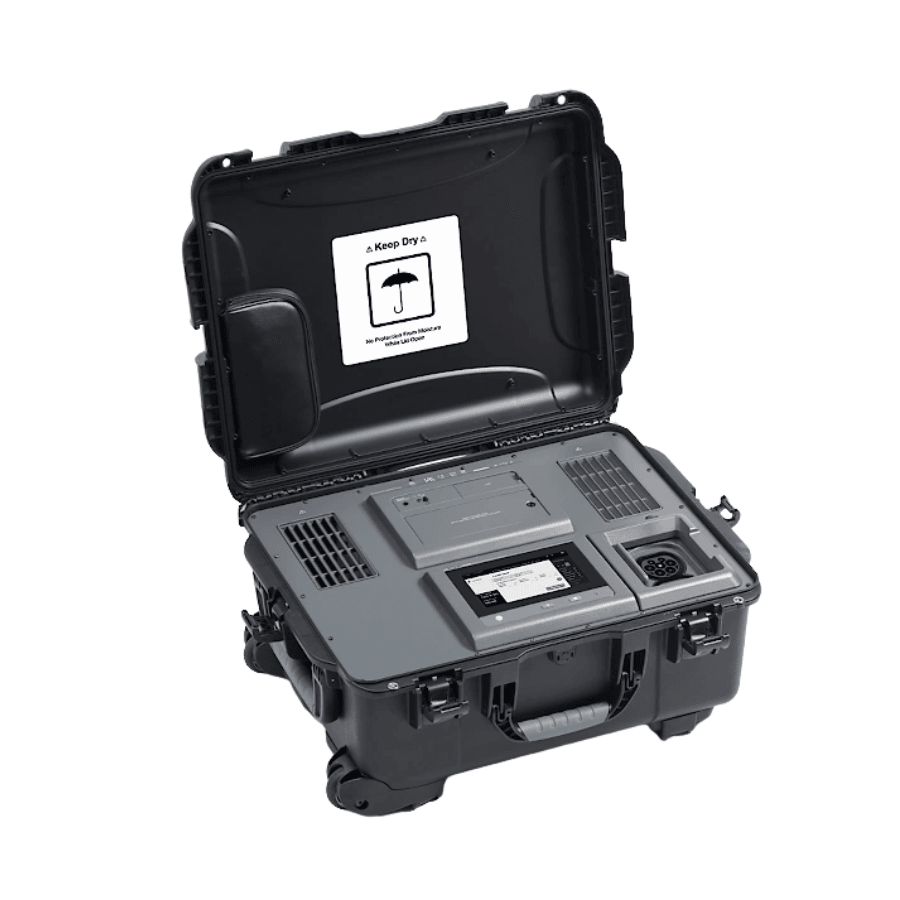

Field conditions often demand a tough and mobile test tool, and the Fluke FEV500 is designed with that in mind. Its rugged wheeled case, bright display and removable lithium-ion battery make transport and use easier on busy sites. In bright sunlight or changing weather, the analyser remains practical and easy to read.
Reliable charger testing matters because faults in communication, insulation or power delivery can affect safety and uptime. This analyser helps technicians check those areas before problems grow into service calls. Overall, the Fluke FEV500 supports faster commissioning, safer validation and better long-term charger performance.
Key Features
- Combines charger safety and performance checks in one unit
- Simulates EV charging without a vehicle on site
- Supports guided workflows for clear step-by-step testing
- Shows clear PASS and FAIL results for fast decisions
- Uses a single CCS connection for charger validation
- Helps verify charger communication during field testing
- Supports documentation through Fluke TruTest software
- Stores EVSE and connection point IDs for asset records
- Uses an ultra-bright screen for outdoor visibility
- Runs from a removable battery for mobile working
- Reduces the need for extra load banks and test tools
- Supports repeatable checks across multiple charger sites
- Designed for technicians who need quick field deployment
- Tested for compatibility with most major EVSE manufacturers
Technical Specifications
| Manufacturer | Fluke |
| Manufacturer part code | 6008411 |
| Display | 7-inch TFT display with 1024 x 600 pixel resolution, capacitive touch and operation with PPE gloves |
| Brightness | Up to 1700 cd/m² with sunlight-readable screen and ambient light sensor |
| Voltage range | 1000 V with 0.1 V resolution |
| Voltage accuracy | ± (0.2% reading + 4 digits) |
| Current range | 10 A with 0.01 A resolution |
| Current accuracy | ± (0.5% reading + 5 digits) |
| Power range | 0 to 3.75 kW with 0.001 kW resolution |
| IMD test range | 19.5 kΩ to 3 MΩ across 256 values |
| Continuity test current | Maximum 10 A |
| Insulation resistance | 10 kΩ to 20 MΩ at 500 V and 1000 V |
| Frequency range | 900 to 1100 Hz |
| Duty cycle range | 2 to 98% |
| Communication protocols | DIN SPEC 70121 and ISO 15118 |
| Operating temperature | -20 °C to +50 °C |
| Humidity | ≤100% up to 30 °C, 55% at 40 °C, 35% at 50 °C |
| Ingress protection | IP54 with lid closed |
| Battery type | Lithium-ion, 10.8 V, 6.8 Ah, 73.44 Wh, customer replaceable |
| Battery runtime | 10 hours |
| Charging time | Typically 3 hours with USB-C PD 65 W charger |
| Dimensions | 65 cm x 50.8 cm x 30 cm |
| Weight | 25.8 kg |
| Warranty | Main unit 2 years, battery and accessories 1 year |
Document Downloads
What’s Included
- FEV500 Analyser
- TP165X remote control probe
- Lithium-ion battery
- USB-C to USB-A cable
