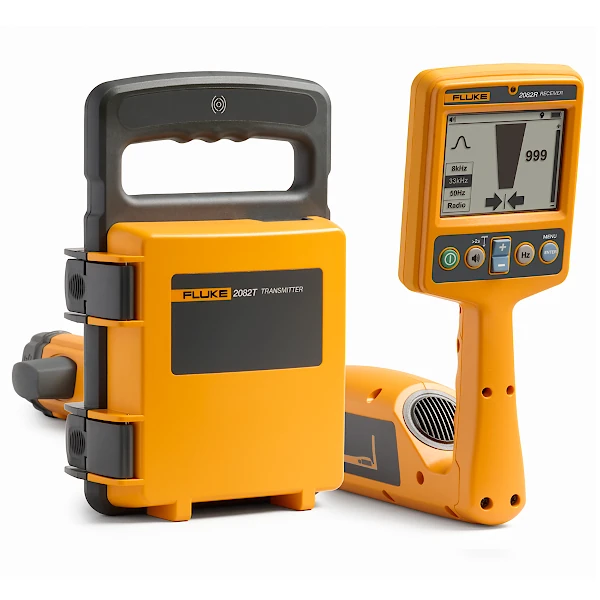

Fluke SmartTrace™ 2082 Underground Utility Locator Kit
The Fluke SmartTrace™ 2082 Underground Utility Locator Kit helps electricians, linemen and contractors find buried electrical lines, communication cables and other underground services. It provides a safer, faster and more accurate way to locate underground assets in the field.

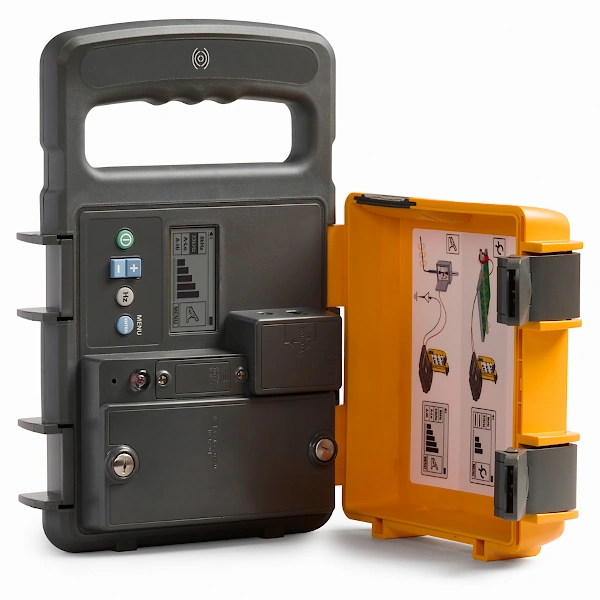

The SmartTrace™ 2082 uses a CAT IV 600 V-rated transmitter for work around energised systems. It also traces energised and de-energised lines through active and passive modes. In addition, the receiver measures depth up to 20 ft (6 m), while the system can detect signals up to 100 ft, depending on conditions.
Efficient Locating Workflow

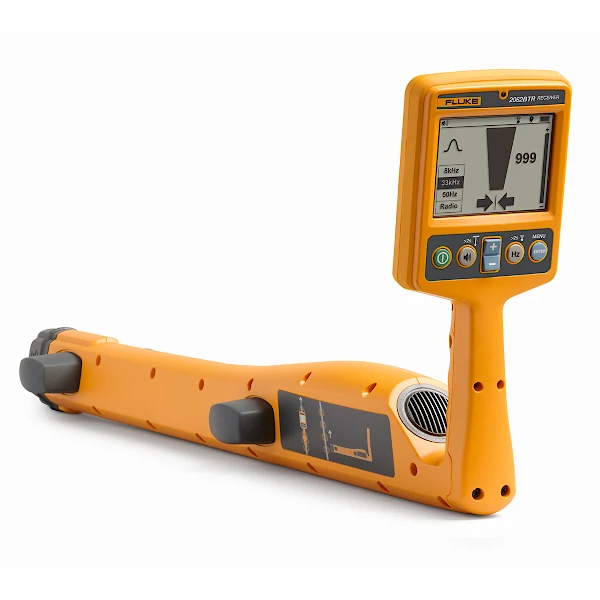

The receiver combines Peak and Null locating modes with fast sound and meter response. As a result, operators can trace buried services more quickly and check paths with more confidence. It supports active tracing at 8 kHz and 33 kHz, and it supports passive tracing at 50/60 Hz and Radio.
The high-contrast grayscale display stays readable in full sunlight or light rain. Therefore, crews can keep working in changing site conditions. Responsive controls and simple operation also help reduce setup time in the field.
Built for Field Use

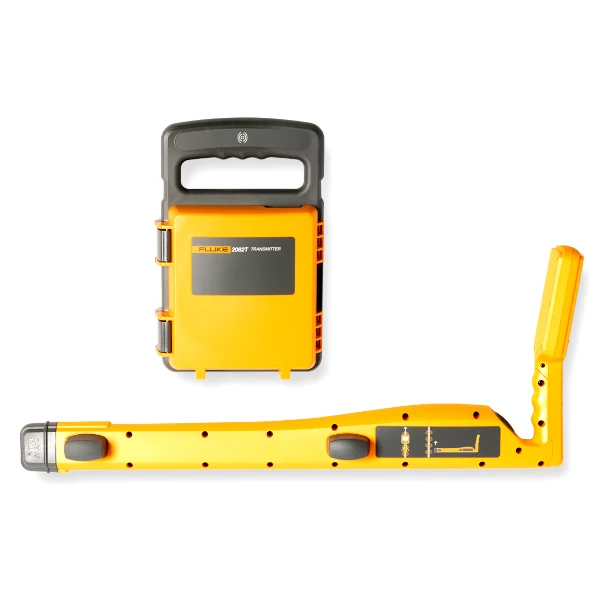

The kit arrives ready for work with a transmitter, receiver, carrying case, test lead kit, marking flags, replacement fuses and batteries. Moreover, the rugged IP54 design supports demanding outdoor work. The transmitter runs on eight D-cell batteries, while the receiver runs on six AA batteries.
Key Features
- CAT IV 600 V safety for energised circuit work
- Depth measurement up to 20 ft (6 m)
- Detection range up to 100 ft, depending on conditions
- High-contrast grayscale display readable in sun or rain
- Peak and Null locating modes
- Active tracing at 8 kHz and 33 kHz
- Passive tracing at 50/60 Hz and Radio
- Rugged IP54 design for field durability
- Ready-to-work core kit with transmitter, receiver, leads and batteries
Technical Specifications
| Manufacturer | Fluke |
|---|---|
| Model | FLUKE-2082 |
| Part Number | 6074049 |
| Maximum voltage between any terminal and earth ground | 600 V |
| Operating temperature | -20 °C to 50 °C |
| Storage temperature | -40 °C to 60 °C |
| Humidity (non-condensing) | 0 to 90% (5 °C to 30 °C), 0 to 75% (30 °C to 40 °C), 0 to 45% (40 °C to 50 °C) |
| Altitude | ≤ 2000 m |
| Ingress protection | IP54 (non-operating) |
| Safety compliance | IEC 61010-1, Pollution Degree 2 |
| EMC | IEC 61326-1: Portable Electromagnetic Environment; IEC 61326-2-2 CISPR 11: Group 1, Class A |
| Transmitter safety rating | IEC 61010-2-030, CAT IV 600 V |
| Transmitter frequencies | Induction mode: 33 kHz. Direct connection modes: 8 kHz and 33 kHz. |
| Transmitter output power | Max. 3 W |
| Transmitter output voltage | Max. 50 V rms |
| Transmitter output current | Max. 250 mA rms, constant current in 5 steps |
| Transmitter display | Monochrome dot matrix graphic LCD display, LED backlight, 2.4 in x 1.3 in (60 mm x 32 mm) |
| Transmitter power supply | Eight (8) 1.5 V D cells, IEC LR20 |
| Transmitter battery life | Up to 16 hours at 21 °C |
| Receiver operating voltage | 90 V to 600 V |
| Receiver tracing modes | Active tracing: 33 kHz and 8 kHz. Passive tracing: 50/60 Hz and Radio. |
| Receiver locating modes | Peak and Null |
| Sensitivity adjustment | Yes |
| Depth measurement | Up to 20 ft (6 m) |
| Depth measurement accuracy | 4 in (0.1 m) to 10 ft (3 m): ± 5% or +4 digits (imperial) / +10 digits (metric), whichever is greater. 10 ft (3 m) to 20 ft (6 m): ± 10%. |
| Receiver display | 4.3 in (109 mm), 320 x 240 BW outdoor LCD display with auto backlight |
| Receiver power supply | Six (6) 1.5 V AA, IEC LR6 |
| Receiver auto power off | 15 minutes idle |
| Receiver battery life | Up to 35 hours at 21 °C |

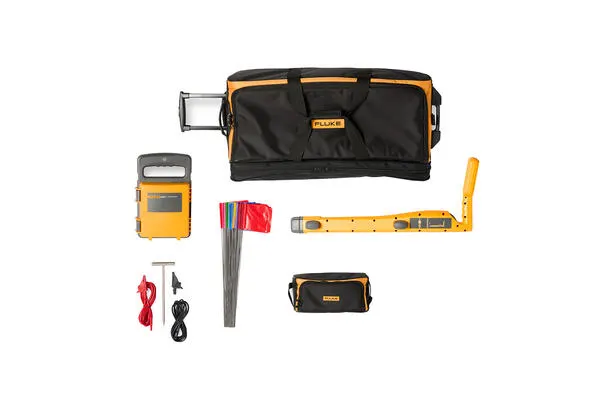

What’s Included
- 2082R Receiver
- 2082T Transmitter
- C2082 carrying case
- TL2082 test lead kit
- FLG2082 marking flags, 8 colours, 100-pack
- FP-UAT-600 fuse 2-pack
- Battery LR6, AA (6)
- Battery LR20, D-cell (8)
