Fluke SMFT-1000 Solar Multifunction PV Tester (Pro Kit)
The Fluke SMFT-1000 Pro Kit delivers fast and reliable solar PV testing in one compact solution. It supports full system checks and I-V curve tracing for accurate performance insight. As a result, engineers can complete commissioning and maintenance tasks with confidence.
Built for systems up to 1000V, the unit handles both Category 1 and Category 2 testing. It measures open circuit voltage, short circuit current, insulation resistance and polarity in one workflow. Therefore, fewer tools are needed on site, which saves time and reduces setup errors.
Advanced Measurement Capability
The Fluke SMFT-1000 Pro Kit includes a wireless irradiance meter for real time environmental data. It captures irradiance and temperature to support accurate I-V curve results. In addition, Bluetooth connectivity allows smooth data transfer without cables.
An intuitive colour screen guides users step by step through each test. Auto test mode further speeds up repeated tasks by combining multiple checks. Consequently, technicians can work faster while maintaining consistent test quality.
Efficient Workflow and Data Handling
Fluke SMFT-1000 Pro Kit integrates with TruTest software for easy reporting and storage. Results can be exported to external devices for documentation and compliance records. This helps streamline project handover and auditing processes.
The rugged design supports field use with CAT III 1000V DC and CAT III 700V AC safety ratings. Keep the leads system reduces reconnection time between tests. Overall, the kit improves productivity and lowers the risk of user error on site.
Key Features
- Supports PV systems up to 1000V DC
- Performs I-V curve tracing for performance checks
- Complies with IEC 62446-1 testing standards
- Measures voltage, current and insulation resistance
- Wireless irradiance and temperature measurement
- Bluetooth communication for data transfer
- Auto test mode for faster workflow
- Colour display with guided test steps
- Integrated TruTest software compatibility
- Keep the leads system reduces setup time
- Includes current clamp for functional testing
- Supports inverter efficiency measurements
Technical Specifications
| Manufacturer | Fluke |
| Product name | Fluke SMFT-1000 Solar Multifunction PV Tester (Pro Kit) |
| Maximum system voltage | 1000 V DC |
| Safety rating | CAT III 1000 V DC and CAT III 700 V AC |
| Standards compliance | IEC 62446-1 Category 1 and Category 2 |
| Test functions | Voc, Isc, insulation resistance, polarity |
| I-V curve tracing | Yes with real time environmental data |
| Display | Colour screen with guided interface |
| Connectivity | Bluetooth wireless communication |
| Data management | Compatible with TruTest software |
| Irradiance meter range | 50 to 1400 W/m² |
| Temperature range | -30°C to 100°C |
| Irradiance meter connectivity | Bluetooth up to 127 hours logging |
| Auto test sequences | Yes with combined measurements |
| Test lead system | Keep the leads fixed configuration |
| Data export | External device via software |
| Warranty | Not specified |
| Manufacturer part code | SMFT-1000/PRO |
Comparison Table
| Feature | Lite Kit | Standard Kit | Pro Kit |
| Backpack | No | Yes | Yes |
| Hard case | Yes | No | No |
| Test lead sets | Yes | Yes | Yes |
| TruTest software | Optional | Optional | Included |
| Irradiance meter | Optional | Yes | Yes |
| MC4 clamp leads | Optional | Optional | Yes |
| Current clamp | Optional | Yes | Yes |
| Temperature probe | No | Yes | Yes |
| Accessories set | No | Yes | Yes |
| Power clamp leads | No | No | Yes |
Document Downloads

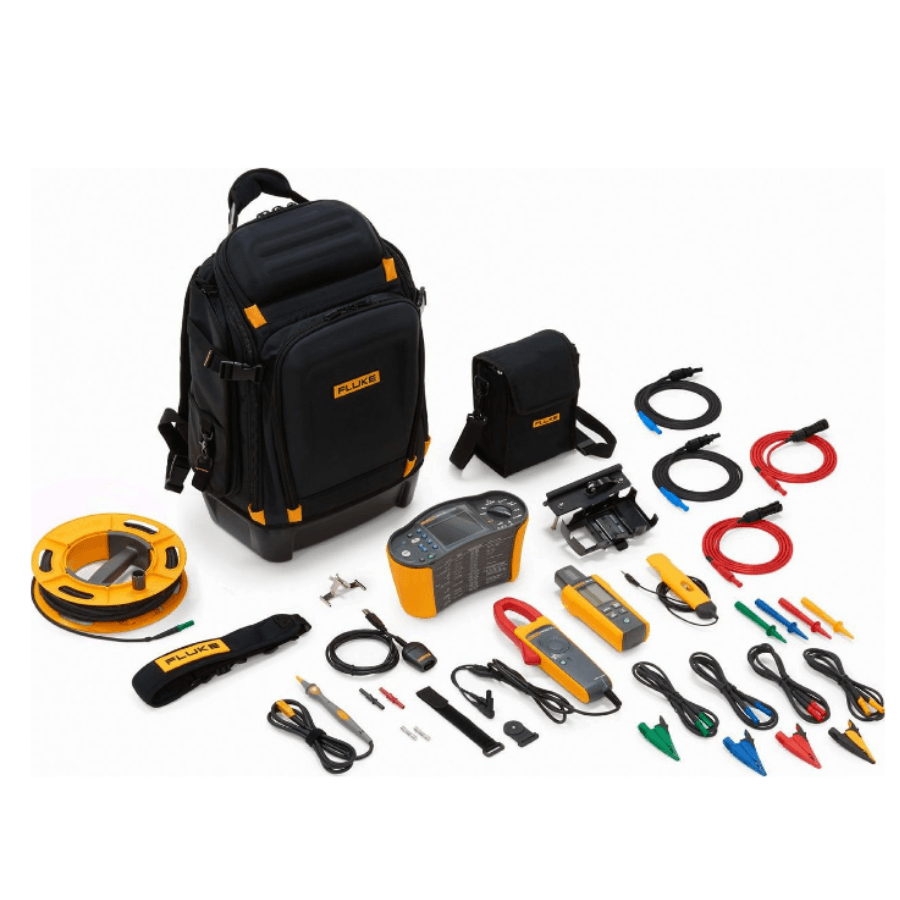

What’s Included
- Fluke SMFT-1000 multifunction PV analyser
- IRR2-BT wireless irradiance meter
- 100A AC DC current clamp
- Panel mounting bracket
- Zero adapter
- External temperature probe
- Magnet set
- Carry strap and carry case
- Test probe with remote button
- MC4 test lead set
- Coupler set and fuse pack
- 30 m test lead on reel
- IR optical to USB cable
- Fluke backpack
- TruTest software licence
- Solar power clamp test leads
