Fluke SMFT-1000 Solar PV Multifunction Tester (Standard Kit)
The Fluke SMFT-1000 Standard Kit provides a complete solution for solar PV testing in the field. It supports installation, commissioning and maintenance with simple guided steps. As a result, engineers can work faster and reduce setup errors during testing.
Built to meet IEC 62446-1 standards, the tester handles both Category 1 and Category 2 tests with ease. It measures key electrical values with consistent accuracy and clear display feedback. In addition, the Fluke SMFT-1000 Standard Kit combines multiple tools into one compact unit.
Efficient PV System Testing
Testing workflows become more efficient with automatic sequences and guided instructions. The tester performs voltage, current and insulation checks with minimal input. Consequently, users can confirm safety and system performance quickly.
Data handling is simple and reliable through integration with Fluke TruTest software. Results can be saved, reviewed and exported for reporting. Therefore, the Fluke SMFT-1000 Standard Kit helps keep records organised and compliant.
Advanced Measurement Capability
Built-in I-V curve tracing allows deeper insight into PV system performance. Users can compare expected and measured output values to identify faults. At the same time, visual and audible alerts improve awareness during testing.
Wireless irradiance and temperature measurement enhances overall accuracy. Real-time data supports better decisions on site and improves test quality. Overall, the Fluke SMFT-1000 Standard Kit offers a reliable and practical solution for PV professionals.
Key Features
- Designed for solar PV installation and maintenance
- Supports systems up to 1000 V DC
- Complies with IEC 62446-1 standards
- Performs insulation resistance testing
- Measures open circuit voltage and short circuit current
- Provides polarity testing for PV systems
- Includes automated test sequence mode
- Supports diode testing functions
- Offers integrated I-V curve tracing
- Works with Fluke TruTest software
- Includes wireless irradiance meter support
- Captures temperature and environmental data
- Provides clear on screen guidance
- Stores results for reporting and analysis
Technical Specifications
| Manufacturer | Fluke |
| Product type | Solar PV multifunction tester |
| Maximum system voltage | 1000 V DC |
| Testing standard | IEC 62446-1 Category 1 and Category 2 |
| Test functions | Voltage, current, insulation resistance, polarity |
| I-V curve tracing | Integrated |
| Insulation testing capability | Up to 1000 V |
| Display | Colour screen with guided interface |
| Data storage | Internal memory with export function |
| Software compatibility | Fluke TruTest |
| Wireless connectivity | Irradiance meter connection supported |
| Irradiance measurement range | 50 to 1400 W/m² |
| Temperature measurement range | -30°C to 100°C |
| Safety rating | CAT III 1000 V and CAT IV 600 V AC |
| Data logging duration | Up to 17 hours |
| Manufacturer part code | Not specified |
| Warranty | Not specified |
Comparison Table
| Feature | Lite Kit | Standard Kit | Pro Kit |
| Backpack | No | Yes | Yes |
| Hard case | Yes | Yes | Yes |
| Test leads | Yes | Yes | Yes |
| Irradiance meter | Optional | Yes | Yes |
| Software licence | Optional | Optional | Included |
| Current clamp | Optional | Yes | Yes |
| Temperature probe | No | Yes | Yes |
| Test probe with remote | No | Yes | Yes |
| Clamp test leads | No | No | Yes |
Document downloads

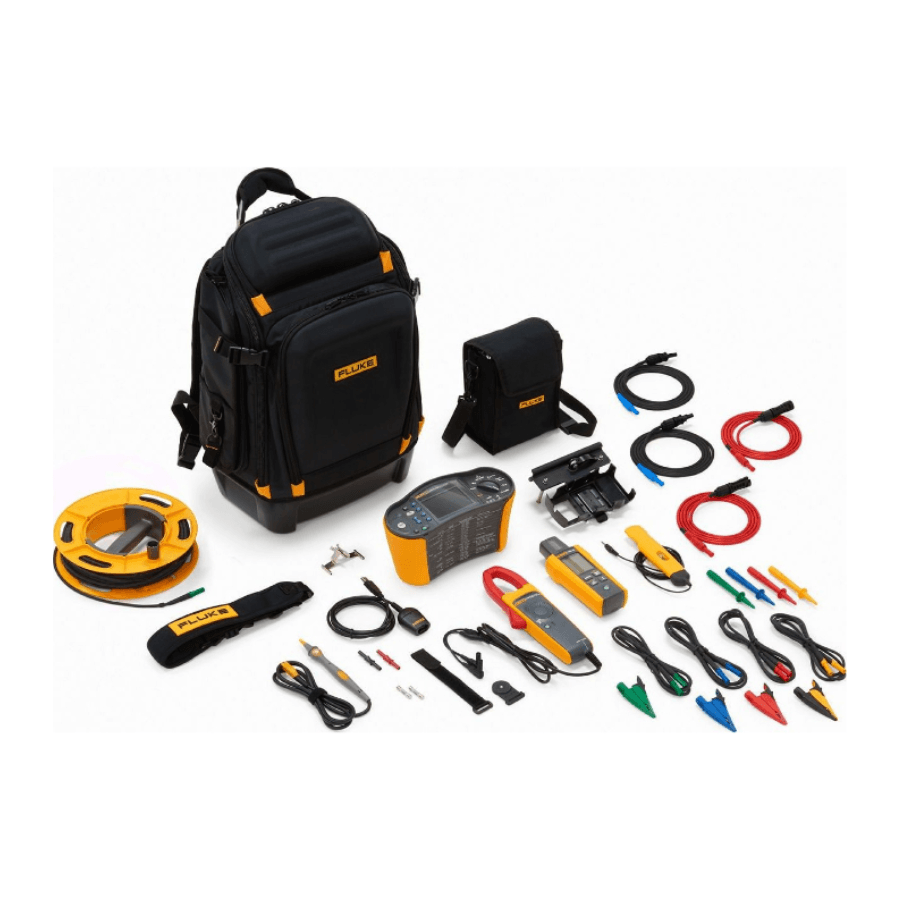

What’s Included
- Fluke SMFT-1000 multifunction PV analyser
- IRR2-BT wireless irradiance meter
- i100 AC DC current clamp
- Panel mounting bracket for irradiance meter
- Zero adapter
- External temperature probe
- Magnet set
- Carry strap
- Carry case for irradiance meter
- Test probe with remote button
- Test lead set with MC4 connectors
- Coupler set
- Fuse pack
- Test leads on reel
- IR optical to USB adapter cable
- Professional tool backpack
