Fluke Solmetric PVA-1500T2 1500V I-V Curve Tracer Kit
The Fluke Solmetric PVA-1500T2 1500V I-V Curve Tracer Kit gives solar engineers a fast and reliable way to test PV strings and modules in the field. It captures accurate I-V curves and power data, which helps users confirm system performance with confidence. In addition, the kit supports commissioning, maintenance, troubleshooting, and operational testing for commercial solar systems.
Built for demanding environments, the Fluke Solmetric PVA-1500T2 1500V I-V Curve Tracer Kit measures up to 1500V and 30A DC. The analyser uses a capacitive load for rapid curve tracing and can record either 100 or 500 data points during each sweep. As a result, users can identify faults, performance loss, and weak modules more quickly during routine inspections.
Wireless Solar Performance Testing
Wireless communication between the analyser and SolSensor allows smooth field operation without long cable runs. The SolSensor measures irradiance, temperature, and array tilt angle, then feeds this information directly into the PV model. Consequently, the system can predict expected I-V behaviour and compare it with live measured values for more accurate diagnostics.
Fast sweep times also improve productivity on larger installations. Typical PV string measurements can complete in as little as 0.2 seconds, while throughput can reach up to 400 sweeps per hour. Furthermore, the Windows-based software supports automated reporting and data management, making long-term system analysis much easier.
Designed for High Efficiency Modules
The Fluke Solmetric PVA-1500T2 1500V I-V Curve Tracer Kit is available in both standard and high-efficiency versions. The high-efficiency PVA-1500HE2 model supports up to 30A DC for modern high-current solar modules, while the standard version supports up to 10A DC. Both models include advanced data analysis tools and built-in PV performance modelling for consistent field results.
Compact construction and battery-powered operation make the analyser suitable for daily use on rooftops and solar farms. The unit includes wireless firmware update support, MC4 connectivity, and safety protection against over-voltage and over-current conditions. A one-year warranty and calibration certificate are also included for added peace of mind.
Key Features
- Measures I-V curves up to 1500V DC
- Supports testing up to 30A DC
- Selectable 100-point or 500-point I-V tracing
- Wireless communication between analyser and SolSensor
- Built-in PV performance model for instant analysis
- Suitable for commissioning and maintenance work
- Compatible with high efficiency PV modules
- Automated data management and reporting functions
- Integrated Windows software for analysis and storage
- Supports rapid sweep measurements in the field
- Database with more than 70,000 PV modules
- MC4 connector compatibility for solar testing
- Wireless firmware updates supported
- Designed for solar troubleshooting applications
- Supplied with calibration certificate
- One-year manufacturer warranty included
Technical Specifications
| Manufacturer | Fluke Solmetric |
| Product name | Fluke Solmetric PVA-1500T2 1500V I-V Curve Tracer Kit |
| Manufacturer part code | 5600022 |
| Voltage range | 20V to 1500V DC |
| Maximum current range | 0A to 30A DC |
| Maximum current for modules ≥19% efficiency | 10A DC standard model |
| I-V trace points | 100 or 500 selectable |
| I-V sweep duration | 0.05 to 2 seconds |
| Maximum sweep throughput | 400 sweeps per hour |
| Maximum measured power throughput | 3.5 MW per hour |
| Voltage accuracy | ±0.5% ±0.25V |
| Current accuracy | ±0.5% ±0.04A |
| Power accuracy | ±1.7% + 1.0W |
| Voltage resolution | 25mV |
| Operating temperature range | 0°C to 45°C |
| Storage temperature range | -20°C to 65°C |
| Operating humidity | Less than 90% RH non-condensing |
| Altitude rating | 2000m maximum |
| Battery charging time | Approximately 6 hours |
| Battery run time | Approximately 8 hours |
| Safety category | CAT III 1500V |
| Compliance standard | IEC 61010-1 Pollution Degree 2 |
| PV connector type | Staubli MC4-EVO2 |
| Charging indicator | LED charging indicator fitted |
| Wireless connectivity | Wi-Fi connection between analyser and tablet or laptop |
| Weight | 6.6kg |
| Height | 43.2cm |
| Width | 21.6cm |
| Depth | 15.2cm |
| Firmware updates | In-field firmware updates supported |
| Warranty | One-year warranty |
Comparison Table
| Standard PVA-1500T2 | High Efficiency PVA-1500HE2 | |
| Model included | PVA-1500T2 | PVA-1500HE2 |
| Maximum current for modules ≥19% efficiency | 10A DC | 30A DC |
| Alligator test leads | Included | Included |
| MC4 disconnect tool | Included | Included |
| Chargers | Included | Included |
| Thermocouples and adhesive discs | Included | Included |
| Sensor cleaning supplies | Included | Included |
| Windows application software | Included | Included |
| Data analysis tool | Included | Included |
Document Downloads

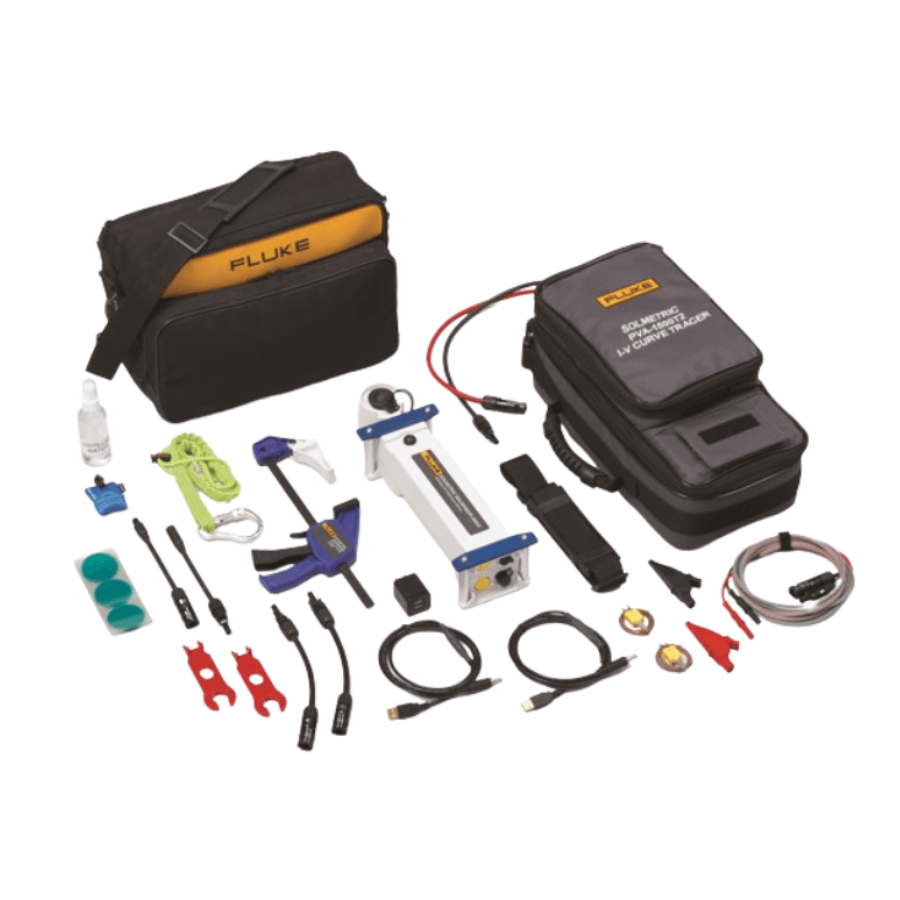

What’s Included
- Fluke Solmetric PVA-1500T2 analyser unit
- SolSensor 300 measurement unit
- Module frame clamp
- Solmetric PV analyser application software
- Open end spanner set with MC4 wrenches
- MC4 to dolphin clip test lead set
- Two K-type thermocouple temperature sensors
- Pack of adhesive discs for thermocouples
- Spray bottle of distilled water
- Microfibre cleaning cloth
- Two MC4 connector savers
- SolSensor lanyard tool

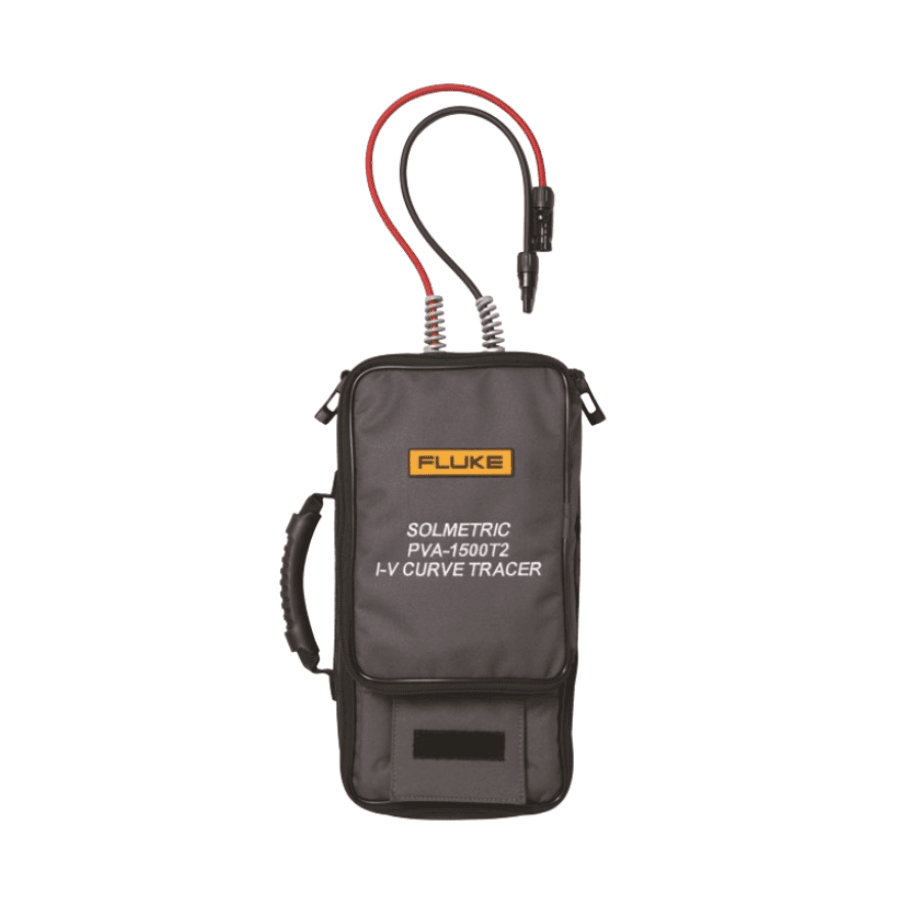

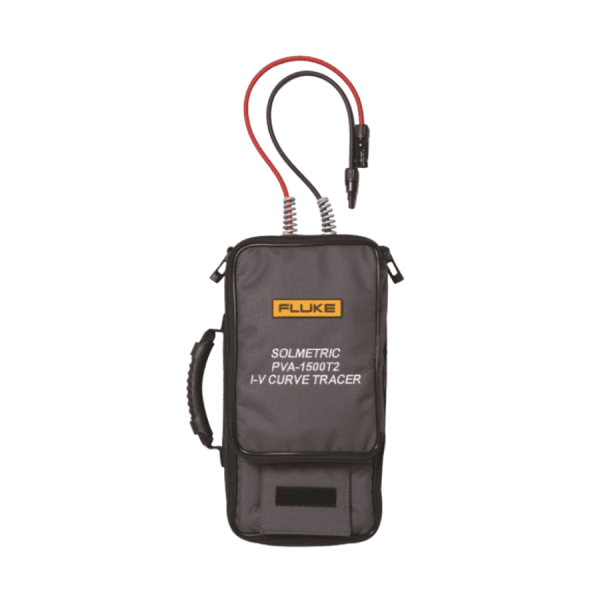

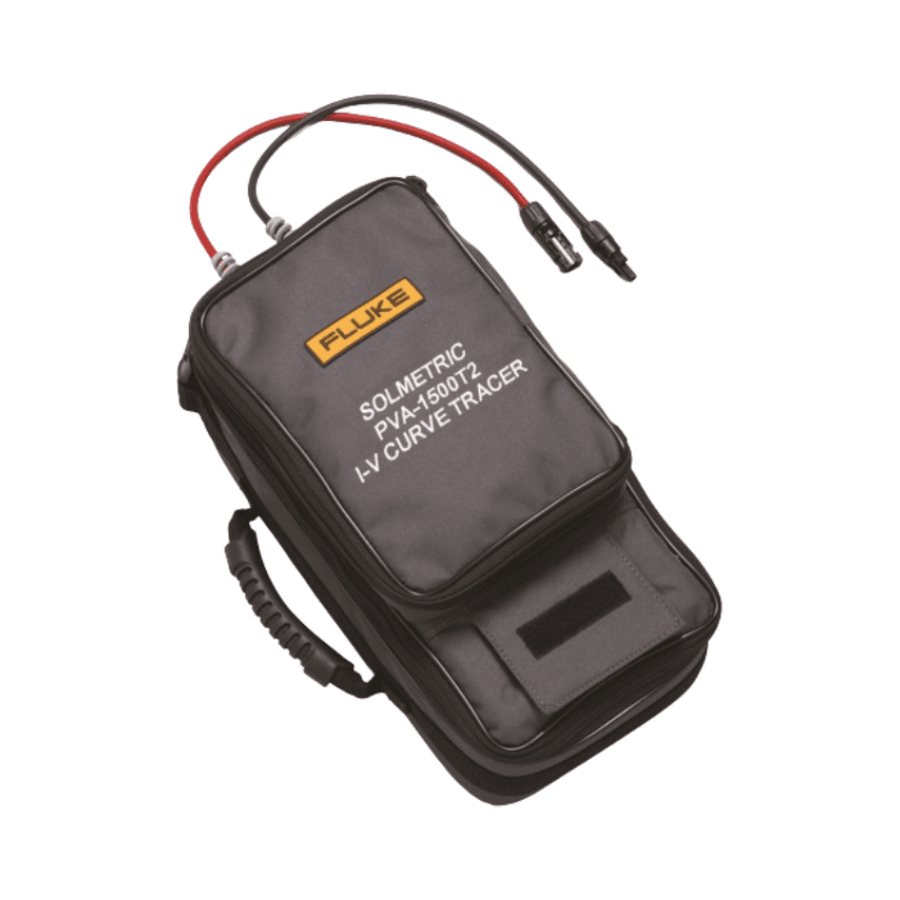

- Soft carrying case for analyser
- Soft carrying case for SolSensor unit
- Dual-port PVA charger plug
- Two PVA USB charging cables
- Quick reference card
- Calibration certificate
