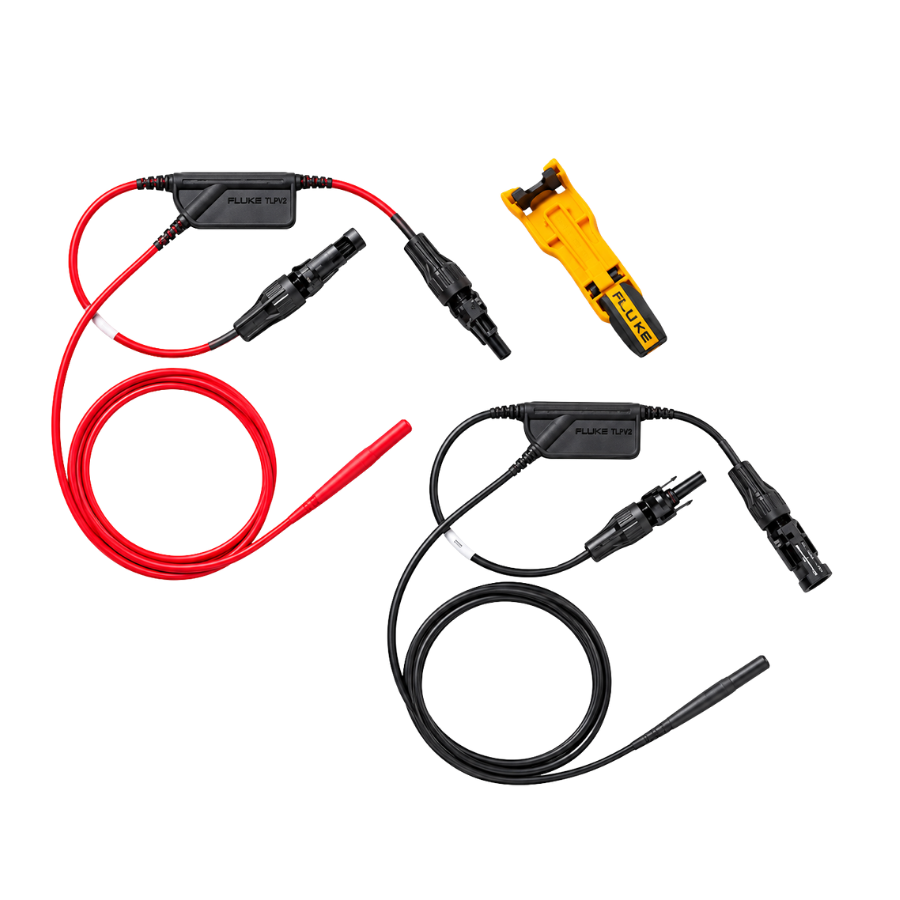

Fluke TLPV2 MC4 Solar Power Clamp Test Lead Set
The Fluke TLPV2 MC4 Solar Power Clamp Test Lead Set helps solar technicians take DC measurements on photovoltaic (PV) modules and systems. Its MC4 breakout design gives access to operating voltage at PV module connections without opening energised inverter or combiner-box enclosures. This makes the set useful for testing, fault finding and routine solar system maintenance. The red and black leads provide separate connections for the measuring instrument.
Designed for use with compatible solar clamp meters, including the Fluke 393 FC, the Fluke TLPV2 MC4 Solar Power Clamp Test Lead Set connects PV equipment to a suitable measuring instrument. Each lead combines a genuine Stäubli MC4 connector with a 4mm shrouded banana plug. The Y-style breakout arrangement allows technicians to take measurements while the solar system is generating power. This helps users check PV operating conditions and investigate performance problems through the module connections.
Built for demanding PV work, the Fluke TLPV2 MC4 Solar Power Clamp Test Lead Set has a CAT III 1500V safety rating and a maximum rated current of 30A. The 36-inch meter leads offer flexibility when placing the measuring instrument, while the 12-inch PV connector sections form the connection between the panel and inverter. A PV unlocking tool is also included to release the MC4 connectors after testing, once the circuit is safe for disconnection. The set is intended for temporary testing connections rather than permanent installation.
Key Benefits
- Access operating voltage at PV module connections without opening energised inverter or combiner-box enclosures.
- Carry out DC measurements while the PV system is generating power using the Y-style breakout design.
- Connect to compatible measuring instruments through 4mm shrouded banana plugs.
- Use genuine Stäubli MC4 connectors for connections to compatible PV equipment.
- Investigate solar system performance issues through direct access to PV module connections.
- Position the measuring instrument with greater flexibility using the 36-inch meter leads.
- Support installation checks, inverter testing and regular maintenance with one test lead set.
- Work with the Fluke 393 FC Solar Clamp Meter for compatible PV measurements.
- Release MC4 connectors after safe isolation using the included PV unlocking tool.
Common Applications
Fluke TLPV2 MC4 Solar Power Clamp Test Lead Set is suitable for a range of testing, maintenance and inspection tasks, including:
- DC operating voltage measurements on solar PV modules.
- Electrical checks during solar PV system installation.
- Routine testing of photovoltaic systems.
- Inverter testing using compatible measuring instruments.
- Investigating PV system performance problems.
- Fault finding at solar module connections.
- Maintenance checks on operating solar PV systems.
- Temporary measurement connections between solar panels and inverters.
Why Choose This Model?
The Fluke TLPV2 combines genuine Stäubli MC4 connectors, 4mm shrouded banana plugs and a Y-style breakout design for direct PV operating measurements. Its CAT III 1500V rating, compatibility with the Fluke 393 FC and included PV unlocking tool make it a practical choice for solar testing and maintenance.
