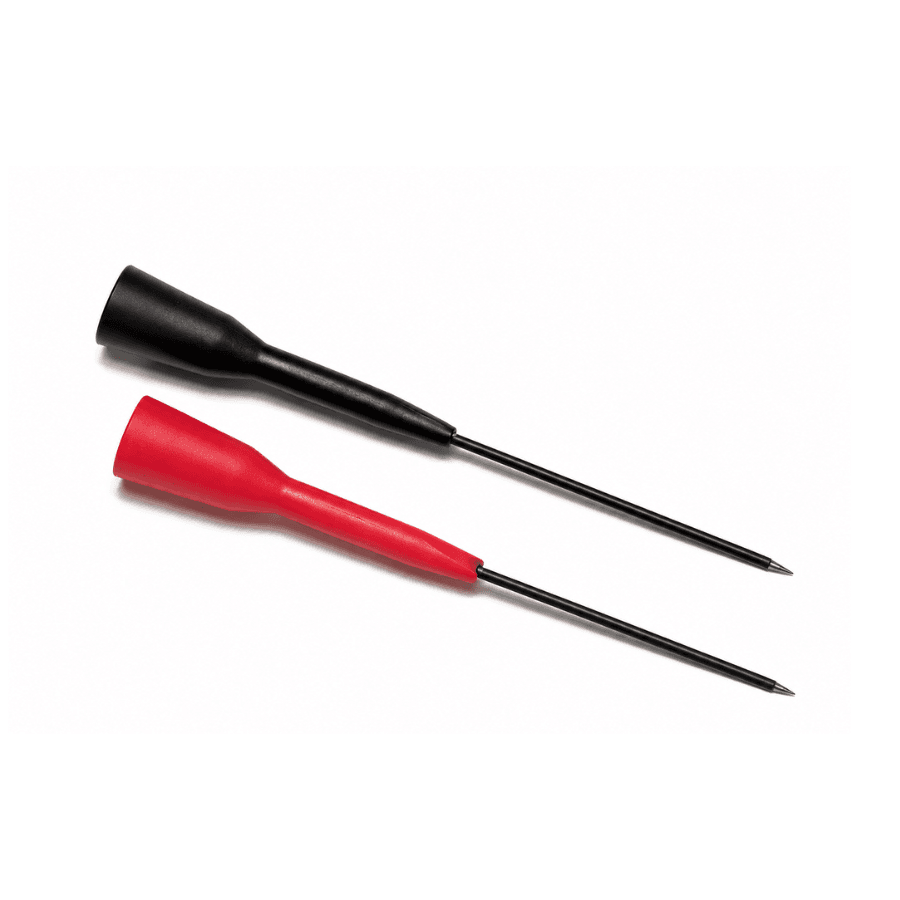

Fluke TP88 Rigid Back Probe Pins
Fluke TP88 Rigid Back Probe Pins provide a practical way to make electrical contact in locations where a standard test probe alone may be difficult to use. Each rigid pin is two inches long and can pass between a weather pack seal and its wire. The sharp point helps the user make good contact with an electrical connector when carrying out testing.
Standard test probes and leads work with these pins, which slide onto test probes measuring 2 mm (0.08 inches). Their narrow form lets users reach difficult areas within electrical installations and connector assemblies. The Fluke TP88 Rigid Back Probe Pins also help users position probes accurately in confined locations.
Insulation around each pin helps stop the probe from shorting against other wires or making unwanted contact. The TP88 withstands testing up to 60 V DC. The Fluke TP88 Rigid Back Probe Pins come as a pair and use sharp contact points, rigid construction and insulated pins to support precise electrical testing.
Key Benefits
- Provides extra reach when a standard test probe alone cannot easily access the required contact point.
- Passes between a weather pack seal and wire to support connector testing without relying on direct front access.
- Uses a sharp point to help establish good electrical contact at the connector.
- Rigid two-inch pins help the user position the contact point accurately in difficult locations.
- Insulation around the pin helps prevent accidental shorting against other wires.
- Slides onto 2 mm test probes for use with compatible standard test probes and leads.
- Supports precise readings by allowing accurate placement at electrical connector contacts.
Common Applications
Fluke TP88 Rigid Back Probe Pins is suitable for a range of testing, maintenance and inspection tasks, including:
- Back probing electrical connectors.
- Testing connectors fitted with weather pack seals.
- Taking electrical readings in difficult-to-reach locations.
- Making contact between a seal and its associated wire.
- Electrical connector testing with standard test probes and leads.
- Checking electrical installations where normal probe access is restricted.
- Placing a probe accurately onto a small connector contact point.
Why Choose This Model?
The TP88 may suit users who specifically need two-inch rigid, insulated back probe pins that fit 2 mm test probes and are tested to 60 V DC.
