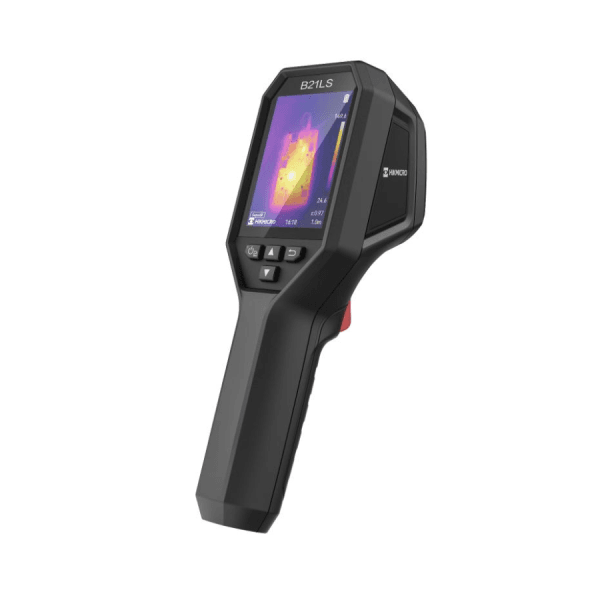

Hikmicro B21LS Handheld Thermal Camera

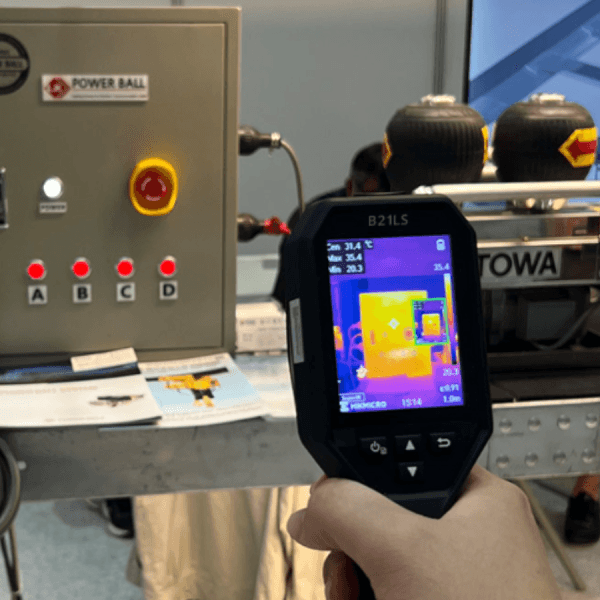

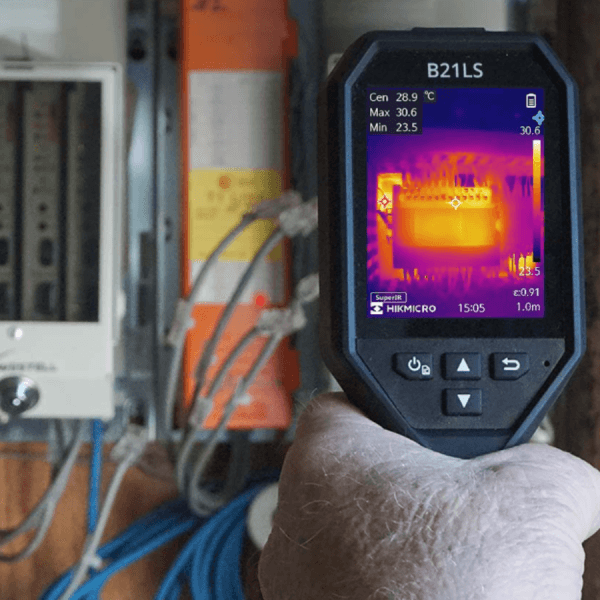

The Hikmicro B21LS Handheld Thermal Camera offers a powerful combination of precision, reliability, and simplicity. Designed for everyday use in HVAC, building, automotive, and electrical maintenance, it delivers consistent thermal imaging performance in a compact and lightweight design. A 3.2-inch LCD screen with 480 × 640 resolution allows you to inspect thermal images with clarity and ease.
Enhanced Imaging and SuperIR Technology
Equipped with a highly sensitive VOx detector (NETD < 40 mK), the Hikmicro B21LS ensures sharp thermal detection with minimal noise interference. It captures images at 256 × 192 resolution, while SuperIR technology enhances still images to 640 × 480 for detailed analysis. A smooth 25 Hz image refresh rate guarantees fluid visuals during inspections or while viewing moving targets.
Accurate Temperature Monitoring and Wi-Fi Connectivity
The Hikmicro B21LS supports full radiometric image capture and automatically tracks max, min, and centre points. With a measurement range of -20°C to 550°C and accuracy of ±2°C or ±2%, it delivers reliable results in both routine and demanding conditions. Real-time sharing is easy via built-in Wi-Fi and the Hikmicro Viewer App. You can also generate reports and analyse thermographic data using the included software.
Built-in features like a laser pointer, high-temperature audio-visual alarm, and optional macro mode help pinpoint small components down to 500 microns. Supplied with a wrist strap, USB cable, calibration certificate, charger, and quick start guide, the Hikmicro B21LS Handheld Thermal Camera is a ready-to-go solution for accurate fault detection and professional diagnostics.
Key Features
- 256 × 192 pixel infrared resolution
- < 40 mK thermal sensitivity for fine detail
- Temperature range from -20°C to 550°C
- Accuracy ±2°C or ±2% between 15°C and 35°C
- 25 Hz image frequency ensures smooth visuals
- Centre spot, hot spot, cold spot, and user-defined presets
- SuperIR enhancement for image clarity
- Built-in Wi-Fi for image sharing and reporting
- 3.2″ 480 × 640 LCD display screen
- Up to 6 hours of continuous battery operation
- High temperature alarm with speaker and flashlight
- Clip-on macro lens mode detects features down to 500 microns
- Supplied with HIKMICRO Analyzer software
- Lightweight and compact for daily operation
