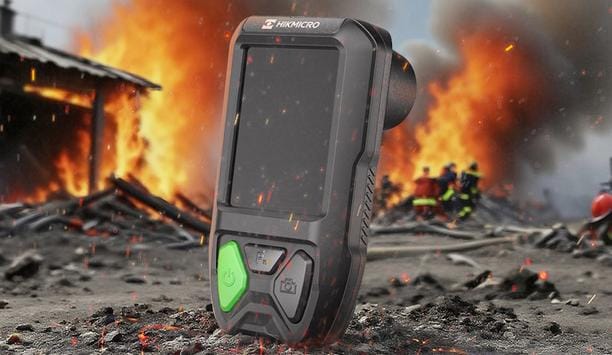

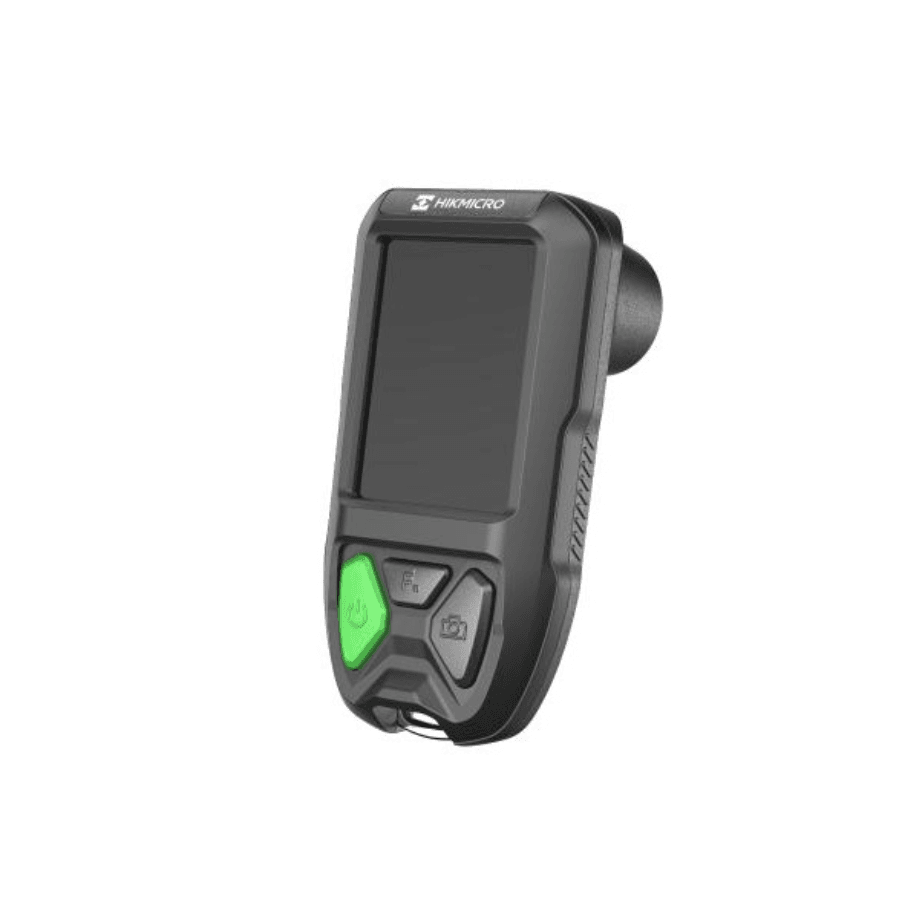

Hikmicro FP21 Firefighting Thermal Camera
Hikmicro FP21 Thermal Camera supports clear vision in smoke and low light. It helps users find heat sources fast and improves safety during critical tasks.
Reliable imaging allows the Hikmicro FP21 Thermal Camera to detect hidden hotspots and track temperature changes. As a result, users can respond quickly and make better decisions on site.
Clear Thermal Imaging
This device uses a high sensitivity detector to show fine heat differences. In addition, multiple viewing modes help users see both thermal and visual details clearly.
A wide field of view makes it easy to scan large areas quickly. At the same time, the smooth refresh rate keeps motion steady when moving through environments.
Durable and Easy to Use
Built for demanding work, the Hikmicro FP21 Thermal Camera resists water and dust. It also withstands drops, making it suitable for tough environments.
Simple controls allow use while wearing gloves, and the screen remains visible in smoke. Battery power supports long use, while storage allows image capture when needed.
Key Features
- High sensitivity sensor detects small temperature changes
- Multiple imaging modes improve scene understanding
- Real time temperature tracking supports fast decisions
- Ergonomic design supports use with protective gloves
- Bright display remains visible in harsh conditions
- Smooth imaging supports movement and tracking
- Internal storage allows large image capture capacity
- Strong housing protects against impact and water
- Rechargeable battery supports extended use in the field
Technical Specifications
| Manufacturer | Hikmicro |
| Manufacturer part code | HRYXBSZ-256-FP21 |
| Infrared resolution | 256 x 192 pixels |
| Detector type | VOx uncooled focal plane array |
| Thermal sensitivity | < 40 mK |
| Frame rate | 25 Hz |
| Field of view | 50° x 37.2° |
| Display size | 3.2 inch LCD |
| Display resolution | 240 x 320 |
| Image modes | Thermal, optical, fusion, picture in picture |
| Temperature measurement range | -20°C to 550°C |
| Measurement accuracy | ±2°C or ±2% |
| Storage capacity | 16 GB internal up to 90000 images |
| Battery type | Rechargeable lithium battery |
| Battery life | Approx. 6 hours |
| Ingress protection | IP65 rated |
| Drop resistance | 2 m |
| Operating temperature | -10°C to 50°C |
| Storage temperature | -20°C to 60°C |
Document Downloads
What’s Included
- Thermal camera with wrist strap
- Power adaptor
- International use plugs
- USB 2.0 to USB Type-C cable
- Calibration certificate
- Quick start guide
