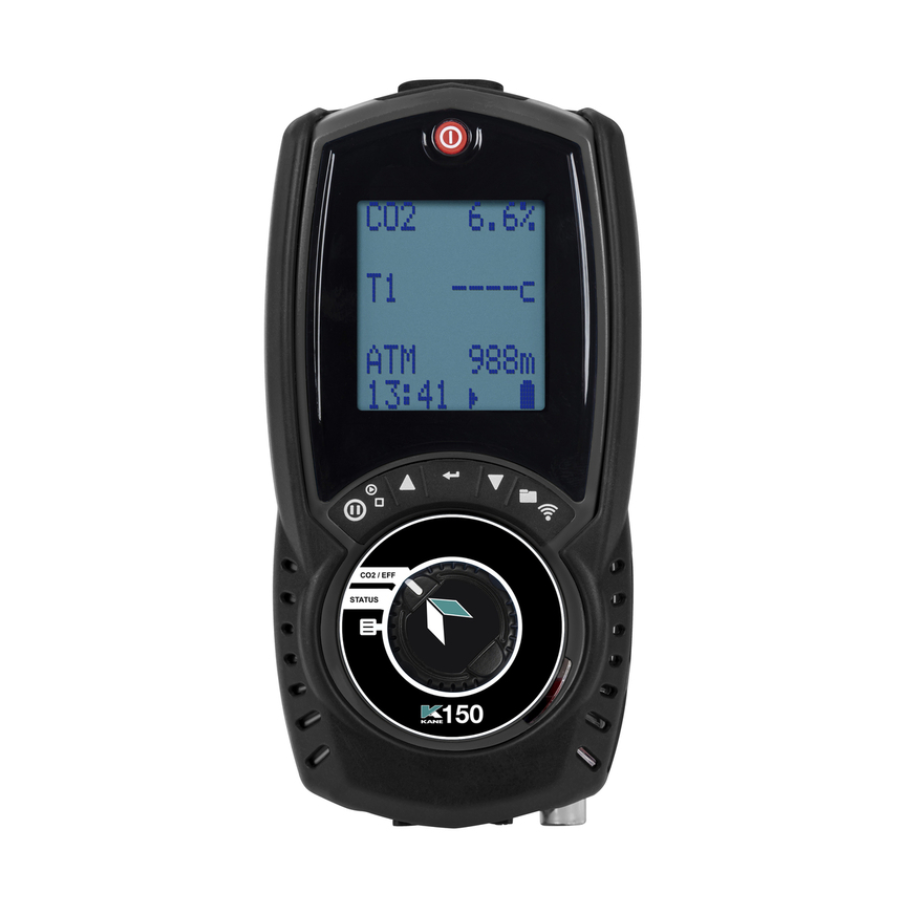

Kane 150WB Diesel Heater Tester
The Kane 150WB Diesel Heater Tester gives technicians a practical way to test diesel heaters and check combustion performance. It measures carbon dioxide and exhaust temperature in real time, so users can assess results as they work. Its flexible probe reaches different exhaust arrangements, while the long-life NDIR CO2 sensor handles the gas measurement.
A large display and easy-to-use rotary dial keep operation simple. The analyser calculates oxygen level, combustion efficiency, excess air and net temperature alongside direct CO2 and flue temperature readings. A built-in worklight also helps users see the test area more clearly in low-light conditions.
Battery power makes the Kane 150WB Diesel Heater Tester easy to carry between jobs and use away from a fixed power source. Users can view, hold and store test results, then print them with the optional KANE-IRP3 printer. KANE also backs the analyser with a 10-year warranty when KANE services and recertifies it.
Key Benefits
- Measures CO2 and exhaust temperature in real time for immediate assessment during testing.
- Calculates oxygen level, combustion efficiency, excess air and net temperature without separate manual calculations.
- Flexible probe makes it easier to test different exhaust arrangements.
- Large display helps users read measurements clearly while working.
- Rotary dial provides simple access to the analyser’s functions.
- Battery-powered design supports portable testing away from a fixed power source.
- View, hold and store functions help users review and retain test results.
- Optional KANE-IRP3 printer support allows test results to be printed when required.
- Built-in worklight improves visibility around the test area.
- Long-life NDIR CO2 sensor is designed for extended service use.
Common Applications
Kane 150WB Diesel Heater Tester is suitable for a range of testing, maintenance and inspection tasks, including:
- Testing diesel heaters.
- Checking combustion efficiency during servicing.
- Measuring exhaust temperature in real time.
- Measuring carbon dioxide concentration in exhaust gases.
- Calculating oxygen level and excess air.
- Commissioning and servicing combustion equipment.
- Testing industrial boilers up to 5MW.
- Testing industrial boilers with up to 50mbar stack draught.
- Testing industrial and marine boilers and generators.
Why Choose This Model?
The Kane 150WB Diesel Heater Tester combines real-time CO2 and temperature measurement with combustion calculations, portable battery operation and result storage. Its flexible probe, large display, rotary control and optional printing function make it practical for testing and service work.
