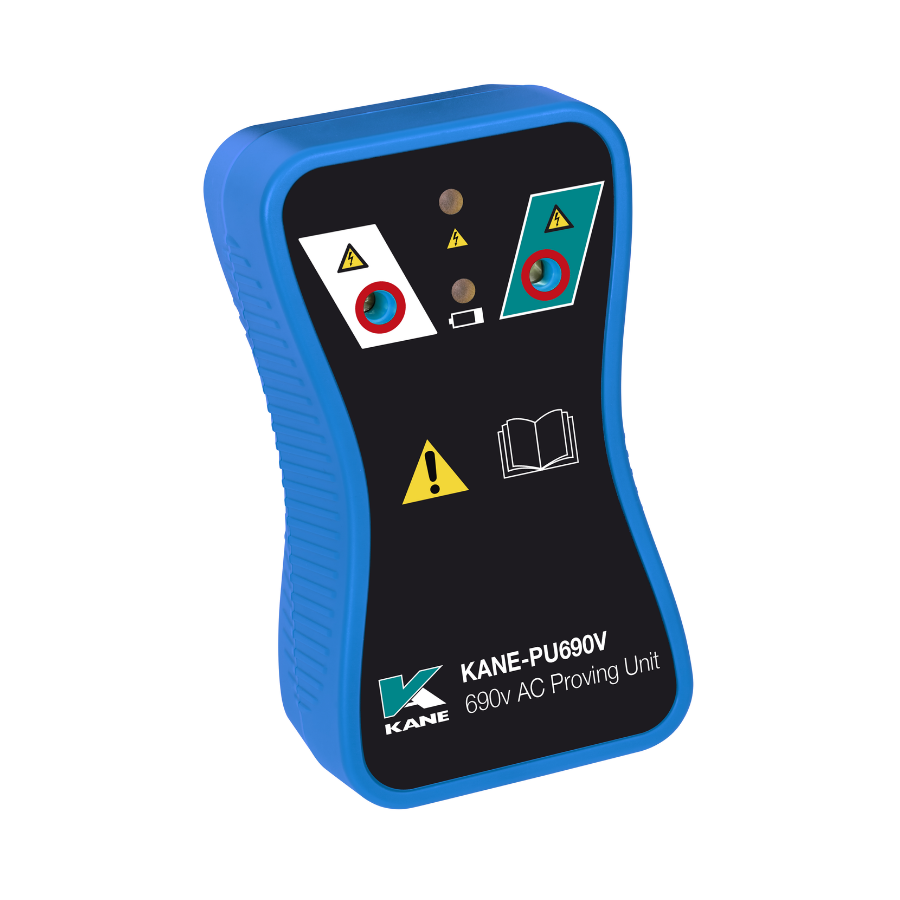

Kane PU690V Proving Unit
The Kane PU690V Proving Unit is a compact and lightweight voltage proving unit designed for electrical safety checks before testing a live circuit. It provides an AC voltage output of up to 690V, allowing users to prove the operation of compatible voltage testers before use. Its portable, handheld format also makes it a practical part of a safe isolation kit.
As well as proving the functionality of two-pole voltage indicators, the Kane PU690V Proving Unit supports both high and low Z impedance multimeters. This allows voltage proving to be carried out with a wider range of compatible test instruments. A built-in low battery indicator helps the user identify when battery power is running low.
A hard-wearing design supports regular on-site use while keeping the unit easy to carry. The Kane PU690V Proving Unit features a 200k Ohm load and is rated CAT II 750V. It also aligns with EN 61010-1, EN 61010-2-030, EN 61326-1 and EN 61326-2-2, together with EMC, LVD and RoHS requirements.
Key Benefits
- Helps confirm voltage tester operation before work begins on a live circuit.
- Provides AC proving voltage up to 690V for compatible voltage indicators and meters.
- Supports both high and low Z impedance multimeters for added testing flexibility.
- Compact and lightweight construction makes the unit easy to carry between jobs.
- Handheld design keeps the proving unit simple to use as part of routine electrical safety checks.
- Built-in low battery indication gives a clear prompt when battery power is running low.
- Hard-wearing construction is suited to regular use in working environments.
- Works as an important component within a safe isolation kit.
Common Applications
Kane PU690V Proving Unit is suitable for a range of electrical testing and safety checking tasks, including:
- Proving the functionality of two-pole voltage indicators.
- Checking voltage testers before use on live circuits.
- Proving voltage on high impedance multimeters.
- Proving voltage on low Z impedance multimeters.
- Pre-use checks as part of safe isolation procedures.
- Use as part of a portable safe isolation kit.
Why Choose This Model?
The Kane PU690V Proving Unit combines AC proving output up to 690V with high and low Z impedance compatibility. Its compact, lightweight and hard-wearing handheld design also makes it well suited to portable electrical safety checking.
