Kewtech ACC065 Premium Test Leads
Kewtech ACC065 Premium Test Leads provide a practical three-wire connection for distribution board testing. The non-fused design supports use with compatible multifunction testers. Universal 4 mm connectors also allow the set to fit a wide range of major tester brands.
Each lead uses Kewtech’s G7 cable design to give strong and steady performance on site. The cables have been tested against pulling, bending, twisting and changes in temperature. As a result, they can cope with the strain of regular electrical testing.
Reliable Connections for Site Testing

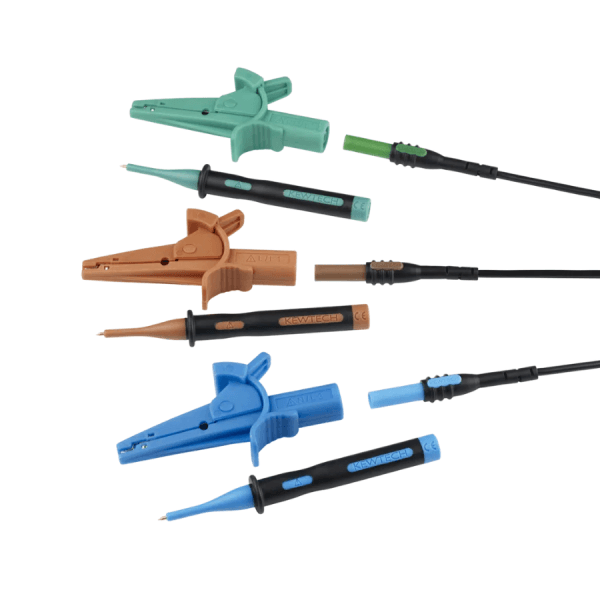

The Kewtech ACC065 Premium Test Leads include three probes and three crocodile clips. These connection options help the user adapt the set to different terminals and test points. In addition, the crocodile clips provide a firm grip for more consistent contact.
Three separate leads support the required test connections without combining them into one cable. This layout helps keep the test setup clear when working at a distribution board. It also makes each lead easier to position around the equipment under test.
Two Test Lead Set Options
Two related set types are available for different testing needs. The ACC065 supplies the main three-wire distribution board lead set, while the ACCSTP provides an ultra-slim probe tip set for use with ACC065 leads. Therefore, users can choose the standard connections or add slimmer tips where access is limited.
Kewtech ACC065 Premium Test Leads suit the KT63PLUS, KT64DL, KT65DL and KT66DL testers shown in the supplied compatibility data. The set combines broad connector support with a simple range of accessories. This makes it a useful choice for engineers who need clear, dependable distribution board test connections.
Key Features
- Designed for distribution board testing
- Uses a clear three-wire lead layout
- Non-fused construction for suitable test work
- G7 cable build supports regular site use
- Resists pulling during normal handling
- Handles repeated cable bending
- Tested against twisting strain
- Made to perform through temperature changes
- Crocodile clips provide a firm connection
- Probe connections support direct test access
- Separate leads allow flexible positioning
- Compatible with an optional slim tip set
- Suitable for several Kewtech MFT models
- Built for reliable and consistent contact
Technical Specifications
| Product name | Kewtech ACC065 Premium Test Leads |
| Manufacturer | Kewtech |
| Manufacturer part code | ACC065 |
| SKU | ACC065 |
| Product type | Distribution board test lead set |
| Lead arrangement | Three-wire configuration |
| Fuse configuration | Non-fused |
| Instrument connection | Universal 4 mm connectors |
| Cable type | Kewtech G7 high-performance test lead cable |
| Number of leads | Three |
| Number of probes | Three |
| Number of crocodile clips | Three |
| Primary application | Testing electrical distribution boards with a compatible multifunction tester |
| Mechanical testing | Tested for pull-out force, bending and twisting strain |
| Temperature testing | Tested for performance under temperature changes |
| Brand compatibility | Universal connector design fits major tester brands |
| Confirmed Kewtech compatibility | KT63PLUS, KT64DL, KT65DL and KT66DL |
| Optional accessory type | ACCSTP ultra-slim probe tip set |
| Available set types | ACC065 three-wire lead set and ACCSTP ultra-slim probe tip set |
| ACCSTP use | Designed for use with ACC065 test leads where a slimmer probe tip is required |
Comparison Table
| Feature | ACC065 Lead Set | ACCSTP Probe Tip Set |
| Three-wire distribution board leads | ✓ | — |
| Ultra-slim probe tips | — | ✓ |
| Universal 4 mm instrument connectors | ✓ | — |
| Three probes supplied | ✓ | — |
| Three crocodile clips supplied | ✓ | — |
| Designed for use with ACC065 leads | ✓ | ✓ |
| Suitable for restricted test points | — | ✓ |
ACC065 Tester Compatibility
| Kewtech tester | ACC065 compatibility |
| KT63PLUS | ✓ |
| KT64DL | ✓ |
| KT65DL | ✓ |
| KT66DL | ✓ |
Document Downloads
What’s Included
- Three non-fused G7 test leads
- Three test probes
- Three crocodile clips
