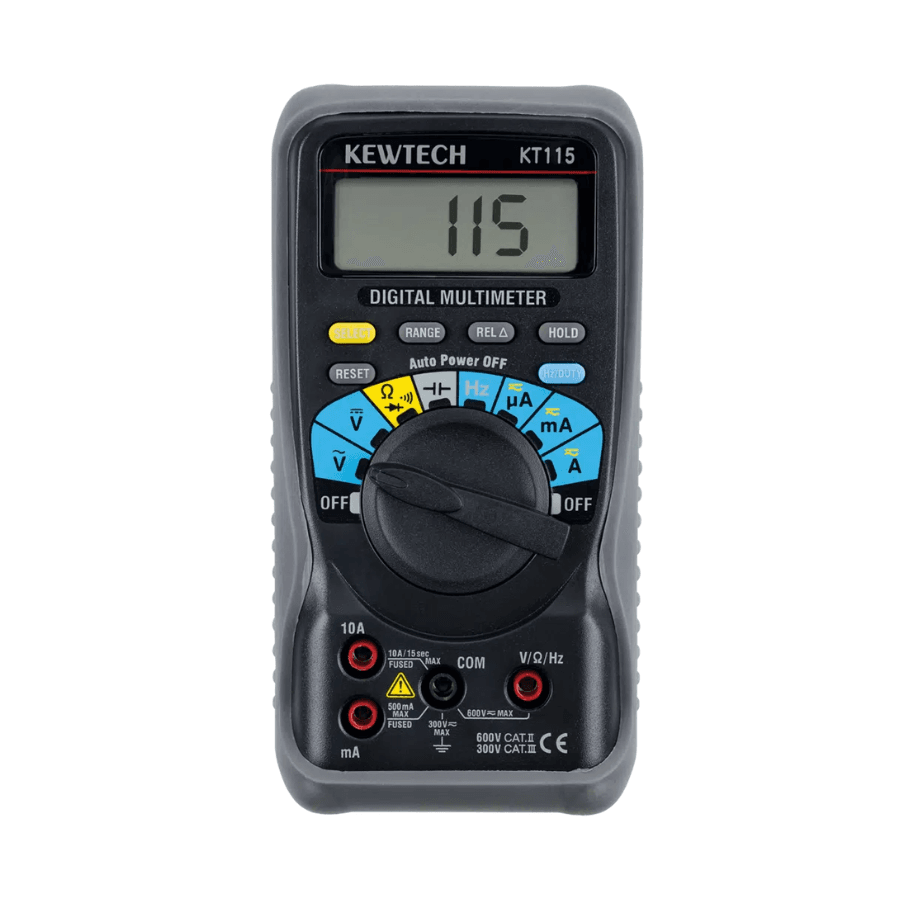

Kewtech KT115 AC/DC Digital Multimeter
The Kewtech KT115 AC/DC Digital Multimeter is a contractor-orientated digital multimeter for everyday electrical measurements. It measures both AC and DC voltage up to 600V and AC and DC current up to 10A. A 4000-count display, data hold function and automatic or manual ranging support routine testing and measurement work.
Alongside voltage and current measurement, the meter provides resistance, capacitance, frequency and duty functions. It also includes diode testing and a continuity buzzer, giving the user several ways to check electrical circuits and components with one instrument. A relative function is provided, while the sleep feature helps preserve battery life between measurements.
The Kewtech KT115 AC/DC Digital Multimeter uses an averaging reading method and is rated to CAT III 300V and CAT II 600V. It complies with IEC61010-1 and offers five autoranging capacitance ranges together with six autoranging resistance ranges. For buyers who specifically require True RMS measurement, the supplied information points to the KT117 as the alternative model.
Key Benefits
- Measures both AC and DC voltage and current with one instrument.
- Automatic ranging reduces the need to select measurement ranges manually.
- Manual ranging remains available when the user wants direct range control.
- Data hold keeps a measured value on the display for easier recording or reference.
- The continuity buzzer gives an audible indication when resistance falls below about 70Ω.
- Resistance, diode and capacitance functions support a wider range of circuit and component checks.
- Frequency and duty measurements provide additional options when checking changing electrical signals.
- The sleep function helps preserve the batteries when the meter is left unused.
- CAT III 300V and CAT II 600V ratings provide defined safety categories for suitable measurements.
Common Applications
Kewtech KT115 AC/DC Digital Multimeter is suitable for a range of testing, maintenance and inspection tasks, including:
- AC voltage measurement up to 600V.
- DC voltage measurement up to 600V.
- AC current measurement up to 10A.
- DC current measurement up to 10A.
- Resistance measurement and continuity checking.
- Diode testing.
- Capacitance measurement.
- Frequency and duty measurement.
Why Choose This Model?
The KT115 suits buyers who need an averaging AC/DC digital multimeter with voltage, current, resistance, continuity, capacitance, frequency and duty functions. If True RMS measurement is required instead, the supplied product information recommends looking at the KT117.
